18.30.28 Sensor - knock (KS): Remove

  1. Disconnect battery earth lead.
  2. Remove LH inlet manifold.

    Refer to REMOVE .

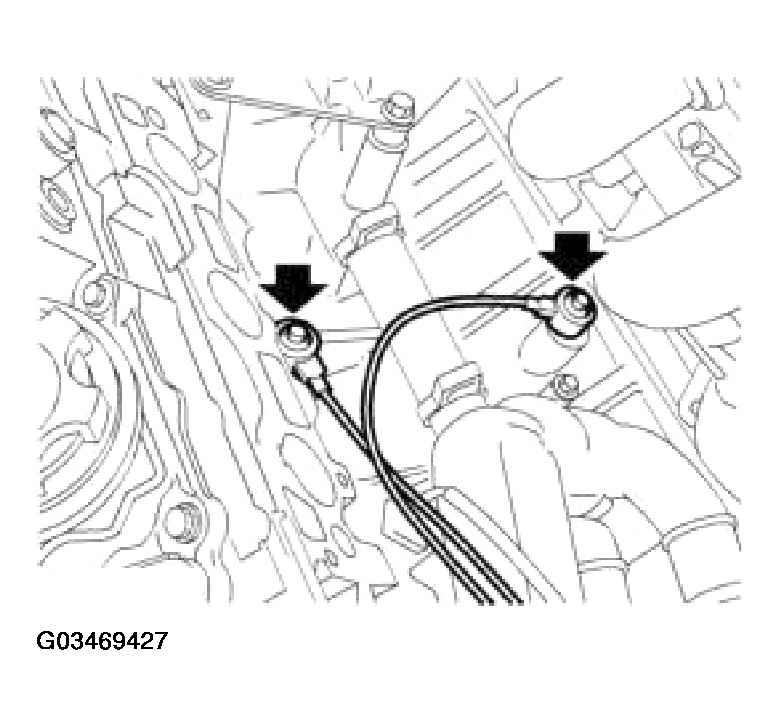

    Fig 1: Removing 2 Bolts Securing KS To Cylinder Block
    G03469427Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Disconnect KS multiplug.
  4. Note the routing of each KS harness.
  5. Remove 2 bolts securing KS to cylinder block and remove sensors.
