18.30.36 Switch - throttle pedal - Non NAS: Refit

Fit switch bracket to throttle pedal assembly and secure with clips
Position switch and push fully into bracket on pedal assembly.

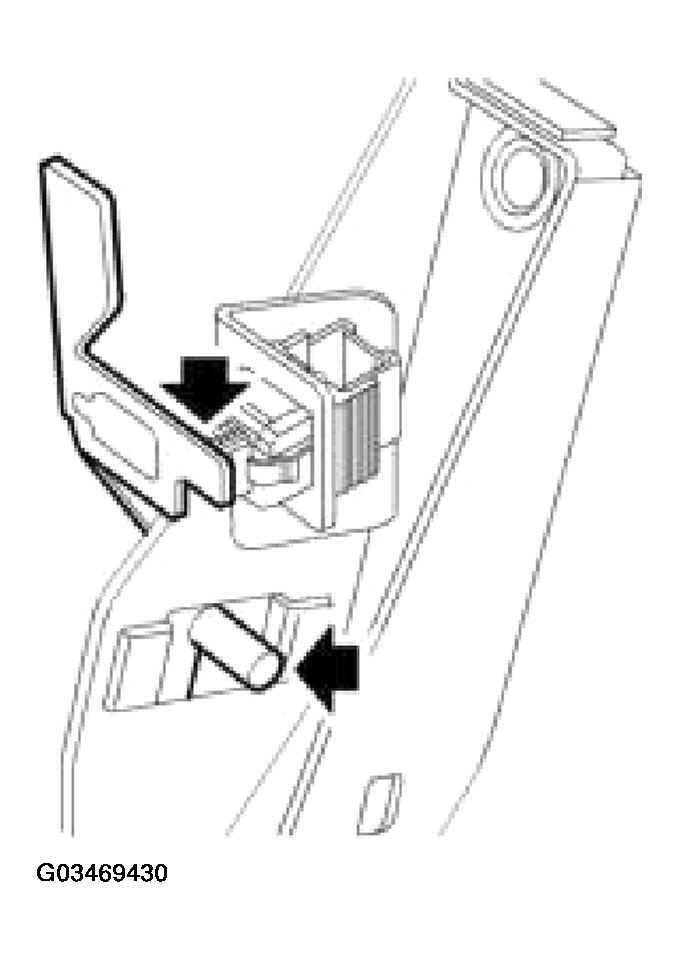

Fig 1: Connecting Multiplug To Throttle Pedal Switch
Courtesy of LAND ROVER NORTH AMERICA, INC.
To correctly position throttle pedal switch, move throttle pedal to the closed position and ensure that switch is in contact with tang on throttle pedal.
Connect multiplug to throttle pedal switch.
Connect throttle inner cable to throttle pedal and secure with clip.
Position throttle pedal assembly to bulkhead, fit and tighten nuts to 25 Nm (18 lbf.ft).
