Windows Control Diagram
See
Fig 1
.

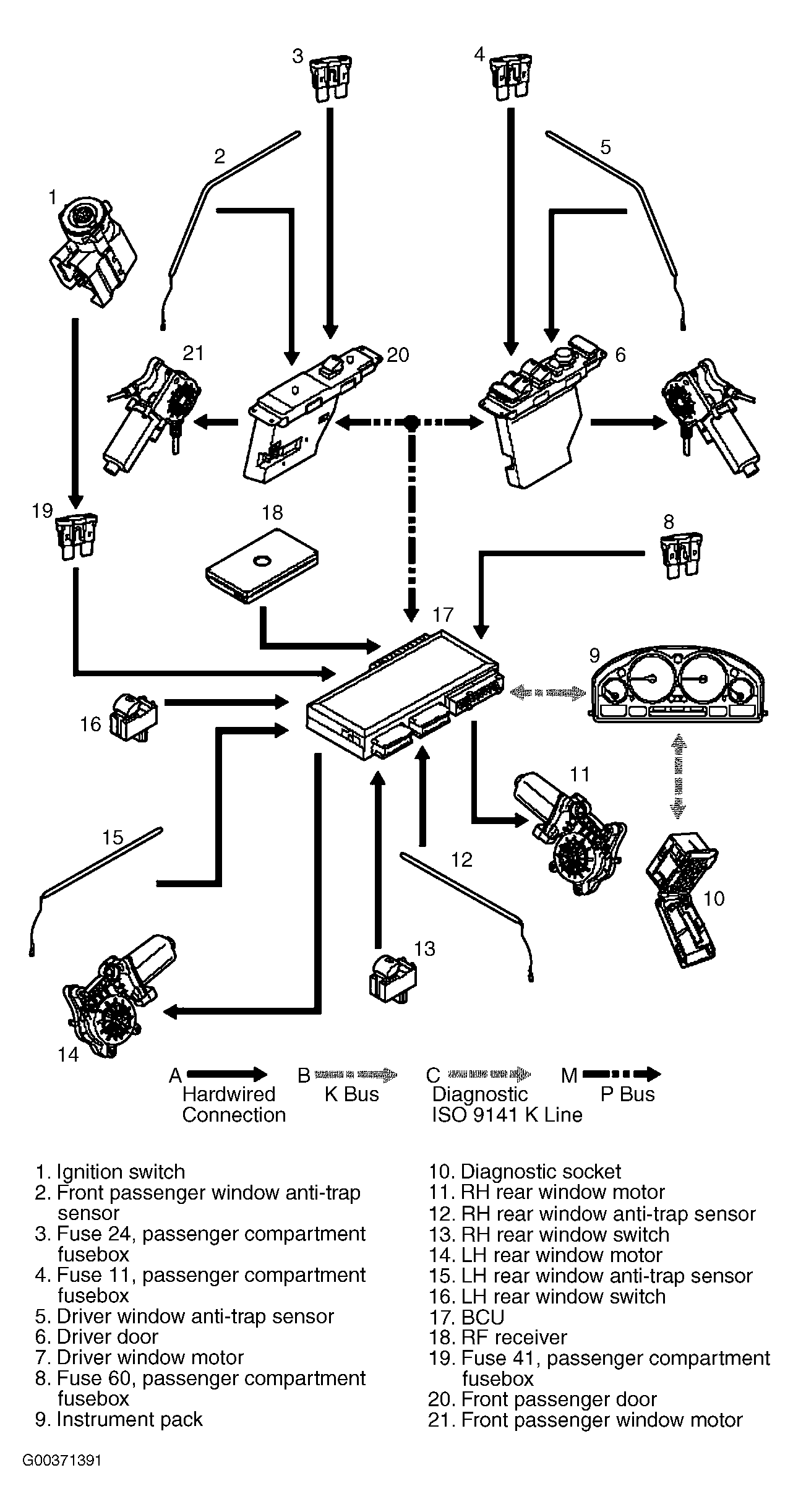

Fig 1: Identifying Windows Control Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.
