Braking System Component Location

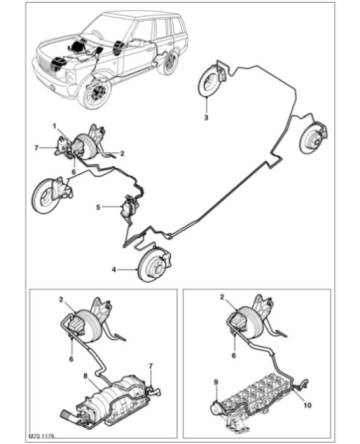

Fig 1: Braking System Component Location
G00523135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  1. Brake fluid reservoir
  2. Servo
  3. Rear disc brake
  4. Front brake disc
  5. ABS control unit and hydraulic modulator
  6. Brake master cylinder
  7. Vacuum hose
  8. Inlet manifold (petrol)
  9. Vacuum pump
  10. Vacuum hose
