Hand Brake Component Location

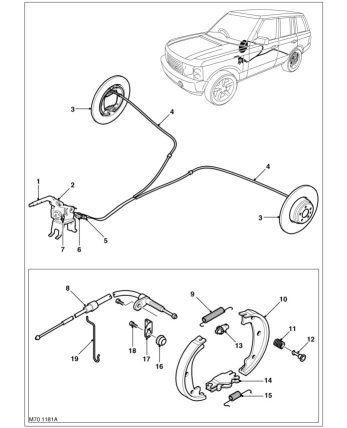

Fig 1: Hand Brake Component Location
G00531951Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  1. Hand brake lever
  2. Ratchet mechanism (internal)
  3. Rear brake
  4. Hand brake cable
  5. Hand brake cable inner cable connection
  6. Cable divider
  7. Brake lamp switch
  8. Hand brake cable
  9. Return spring
  10. Brake shoe
  11. Brake shoe retainer spring
  12. Brake shoe retainer
  13. Rear brake shoe adjuster
  14. Hand brake shoe expander
  15. Expander return shoe spring
  16. Hand brake cable to trailing arm grommet
  17. Hand brake cable mounting bracket
  18. Bolt
  19. Hand brake cable to body clip
