| Battery Positive Cable-To-Stud Nut |
13 (18) |
| Bell Housing Top Torx Bolts |
18 (25) |
| Connecting Rod Bolts |
| Step 1 |
|
| Step 2 |
15 (20) |
| Step 3 |
Tighten An Additional 80 Degrees |
| Crankshaft Pulley Bolt |
| Step 1 |
74 (100) |
| Step 2 |
Tighten An Additional 60 Degrees |
| Step 3 |
Tighten An Additional 60 Degrees |
| Step 4 |
Tighten An Additional 30 Degrees |
| Crankshaft Pulley-To-Hub Bolts |
16 (22) |
| Crankshaft Rear Oil Seal Housing Bolts |
9 (12) |
| Crossmember Bolts |
50 (68) |
| Cylinder Block Drain Plug |
18 (25) |

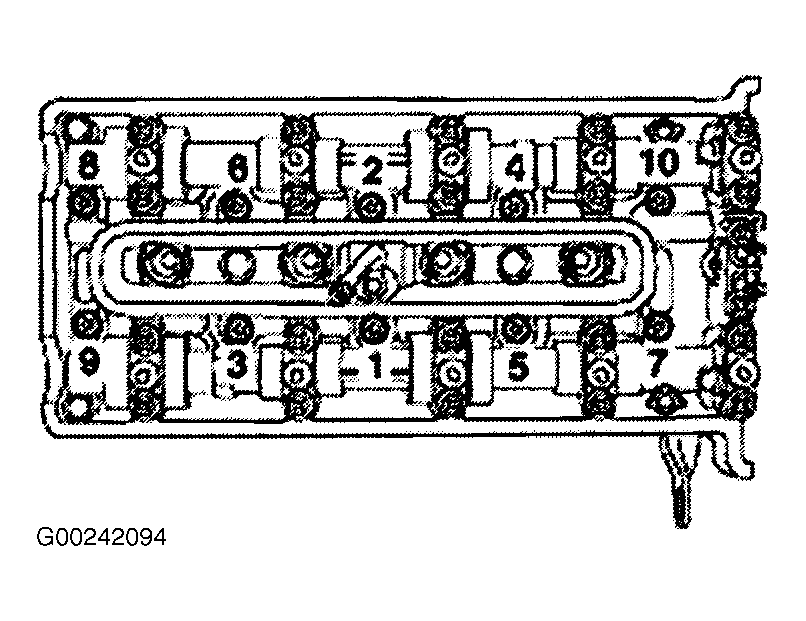

| Cylinder Head Bolts |
| Step 1 |
22 (30) |
| Step 2 |
Tighten An Additional 80 Degrees |
| Step 3 |
Tighten An Additional 80 Degrees |
| Differential-To-Engine Oil Pan Bolts |
81 (110) |
| Drive Plate-To-Crankshaft Bolts |
89 (120) |
| Drive Plate-To-Torque Converter Bolts |
33 (45) |
| Engine Coolant Temperature Sensor |
11 (15) |
| Engine Left/Right Mount-To-Sub-Frame Bolt |
41 (56) |
| Engine Mount-To-Mounting Bracket Nuts |
74 (100) |
| Engine Rear Mount-To-Crossmember Bolts |
74 (100) |
| Exhaust Camshaft Sprocket Torx Bolt |
| Initial Torque |
11 (15) |
| Checking Continuity Torque |
30 (40) |
| Final Torque |
92 (125) |
| Exhaust Manifold Nuts |
17 (23) |
| Intake Manifold Nuts |
11 (15) |
| Knock Sensor Bolts |
15 (20) |
| Lower Timing Gear Cover-To-Upper Oil Pan Bolts |
9 (12) |
| Oil Filter Cap |
18 (25) |
| Oil Filter Return Pipe-To-Oil Pan |
22 (30) |
| Oil Pan-To-Bell Housing Torx Bolts |
39 (53) |
| Oil Pressure Switch |
20 (27) |
| Oxygen Sensor |
37 (50) |
| Main Bearing Caps |
| Main Bearing Cap Adjustable Spacers |
|
| Main Bearing Cap Adjustable Spacer Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Tighten An Additional 45 Degrees |
| Main Bearing Cap Bolts |
| Step 1 |
15 (20) |
| Step 2 |
Tighten An Additional 100 Degrees |
| Spark Plugs |
23 (31) |
| Timing Chain Tensioner Plug |
30 (40) |
| Timing Cover Bolts |
11 (15) |
| Transmission-To-Engine Torx Bolts |
33 (45) |
| Variable Camshaft Control Solenoid |
18 (25) |
| Variable Camshaft Control Unit Torx Bolt |
| Initial Torque |
11 (15) |
| Checking Continuity Torque |
30 (40) |
| Final Torque |
81 (110) |
| Viscous Fan Coupling Nut |
33 (45) |
| INCH Lbs. (N.m) |

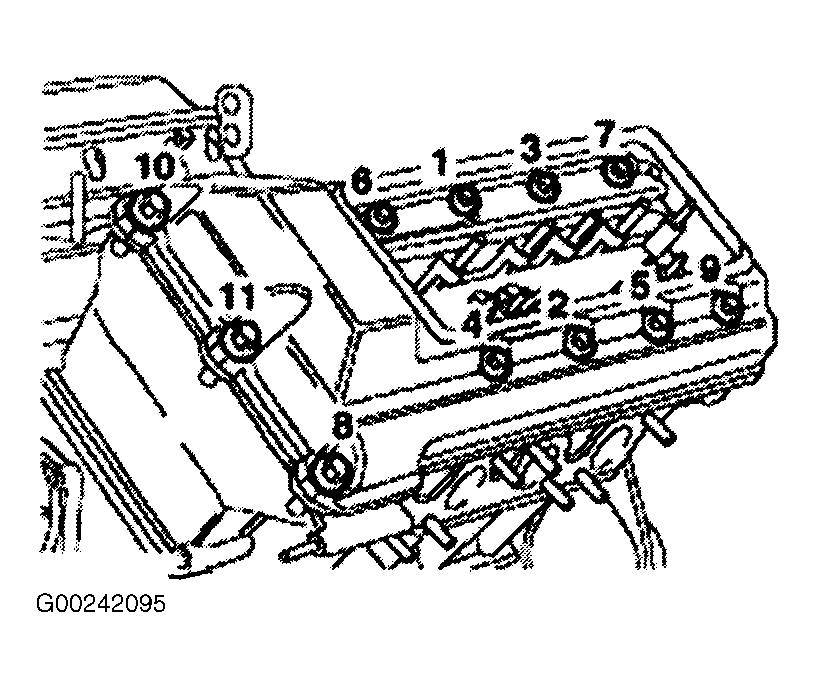

| Camshaft Cover Bolts & Nuts |
89 (10) |
| Camshaft Position Sensor Bolt |
89 (10) |
| Coolant Gallery Sealing Plate-To-Cylinder Block Bolts |
89 (10) |
| Coolant Manifold-To-Cylinder Head Bolts |
89 (10) |
| Crankshaft Position Sensor Bolt |
89 (10) |
| Engine Harness-To-Coolant Manifold Bolt |
89 (10) |
| Ground Strap-To-Camshaft Cover Nut |
35 (4) |
| Ignition Coil Nuts |
35 (4) |
| Intake Manifold Bracket Bolts |
89 (10) |
| Lower Oil Pan Bolts |
89 (10) |
| Lower Timing Cover Bolts |
| Step 1 - All Bolts |
44 (5) |
| Step 2 |
| 6-mm Bolts |
89 (10) |
| 8-mm Bolts |
|
| Oil Baffle Plate Bolts |
89 (10) |
| Secondary Air Injection Pipe Bolts |
89 (10) |
| Thermostat Housing Bolts |
89 (10) |
| Upper Oil Pan-To-Block Bolts |
| M6 x 8.8-mm |
89 (10) |
| M6 x 10.9-mm |
106 (12) |
| M8 x 8.8-mm |
|
| Viscous Coupling-To-Fan Bolts |
89 (10) |
| Water Pump Bolts |
89 (10) |
