Fuel System - Depressurize: Removal
- Disconnect battery earth lead.
- Remove engine acoustic cover. See ACOUSTIC COVER - ENGINE .
- Remove cap from Schrader valve on fuel rail.

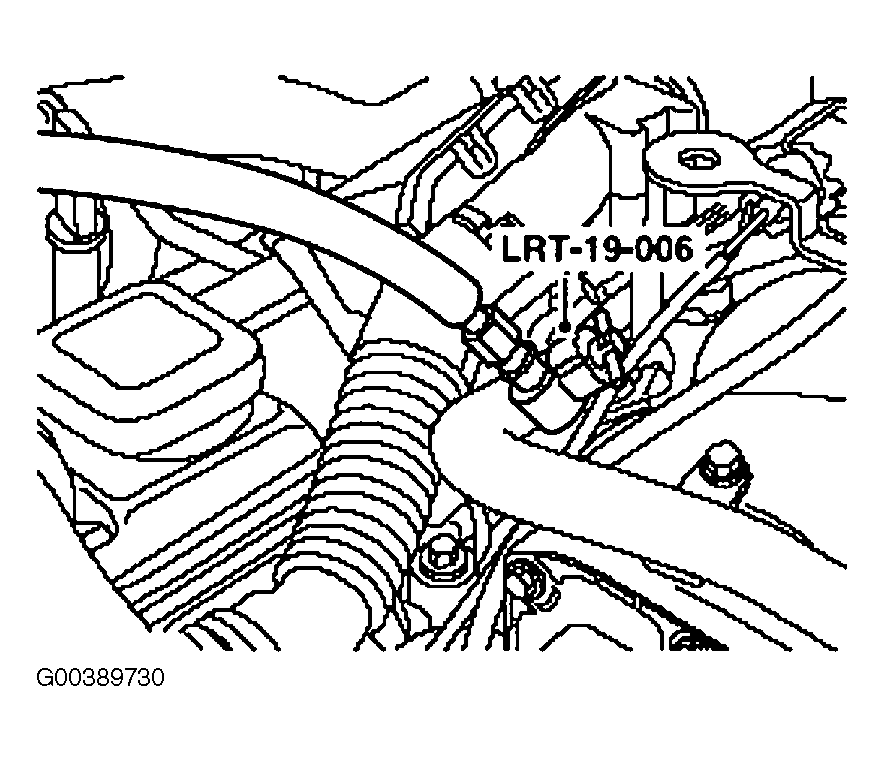

- Fit LRT-19-006 and hose to Schrader valve. See Fig 1.
- Open valve on LRT-19-006. Release fuel system pressure and allow fuel to drain into suitable container.
WARNING:
The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
WARNING:
Fuel vapor is highly flammable and in confined spaces is also explosive and toxic. Always have a fire extinguisher containing foam, CO2, gas or powder close at hand when handling or draining fuel.
