Power Distribution Relay: Locations




Engine Compartment Fuse Box - LH rear side of the engine

Panel & Relays:

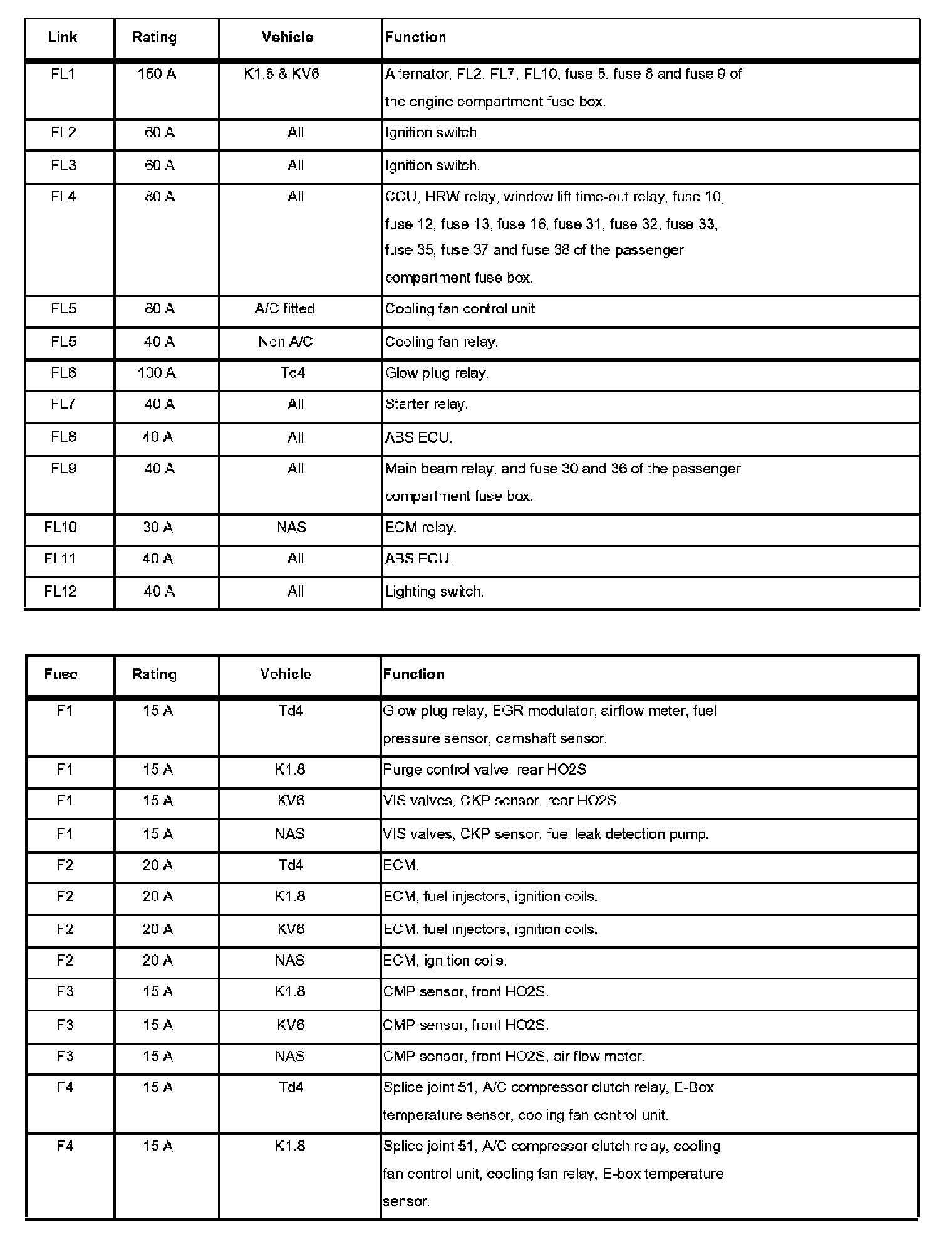

Fusible Links & Fuses (F1 - F4):




Fuses (F4 - F10):






Passenger Compartment Fuse Box - behind the driver side cubby box

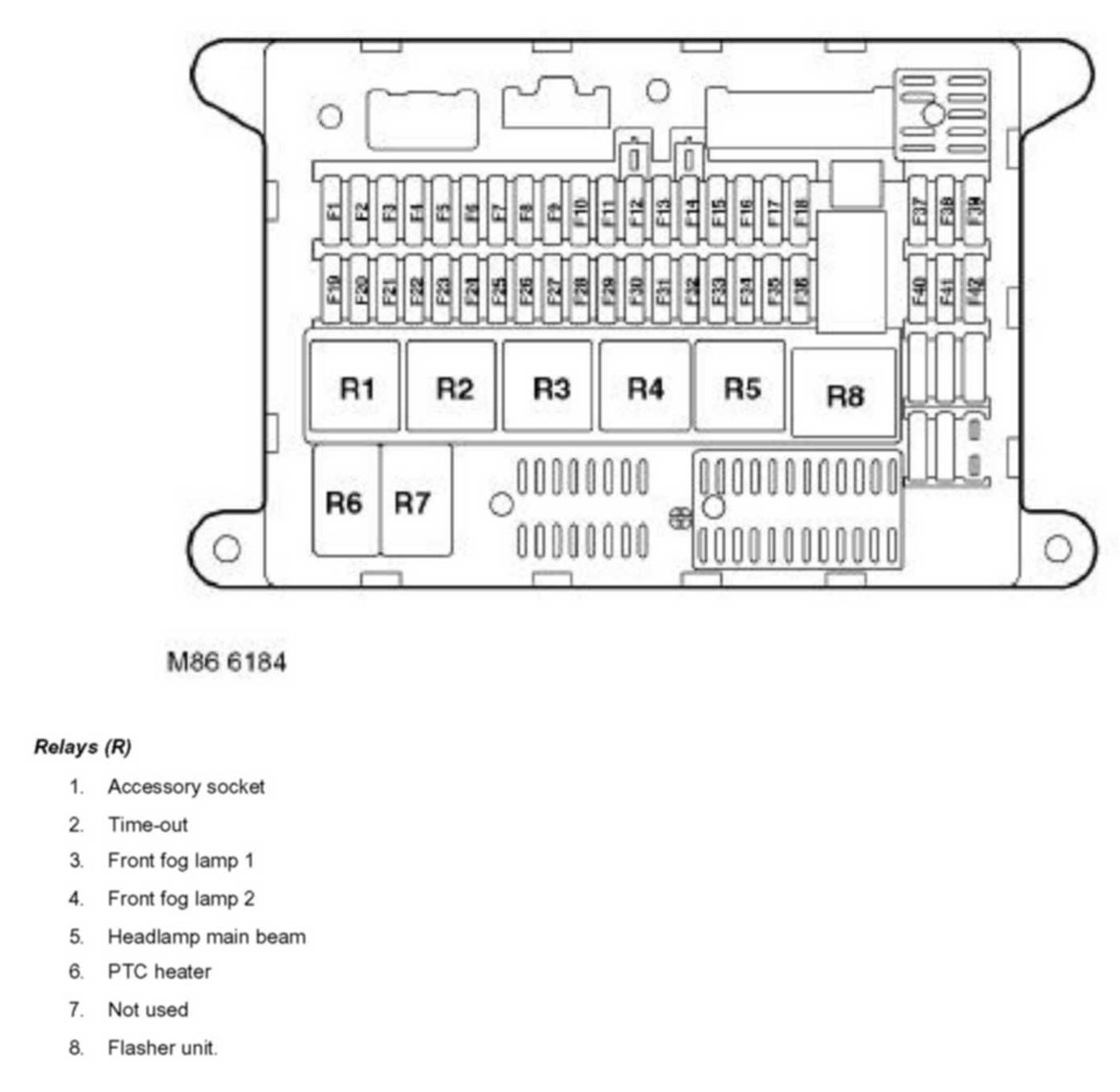

Panel & Relays:

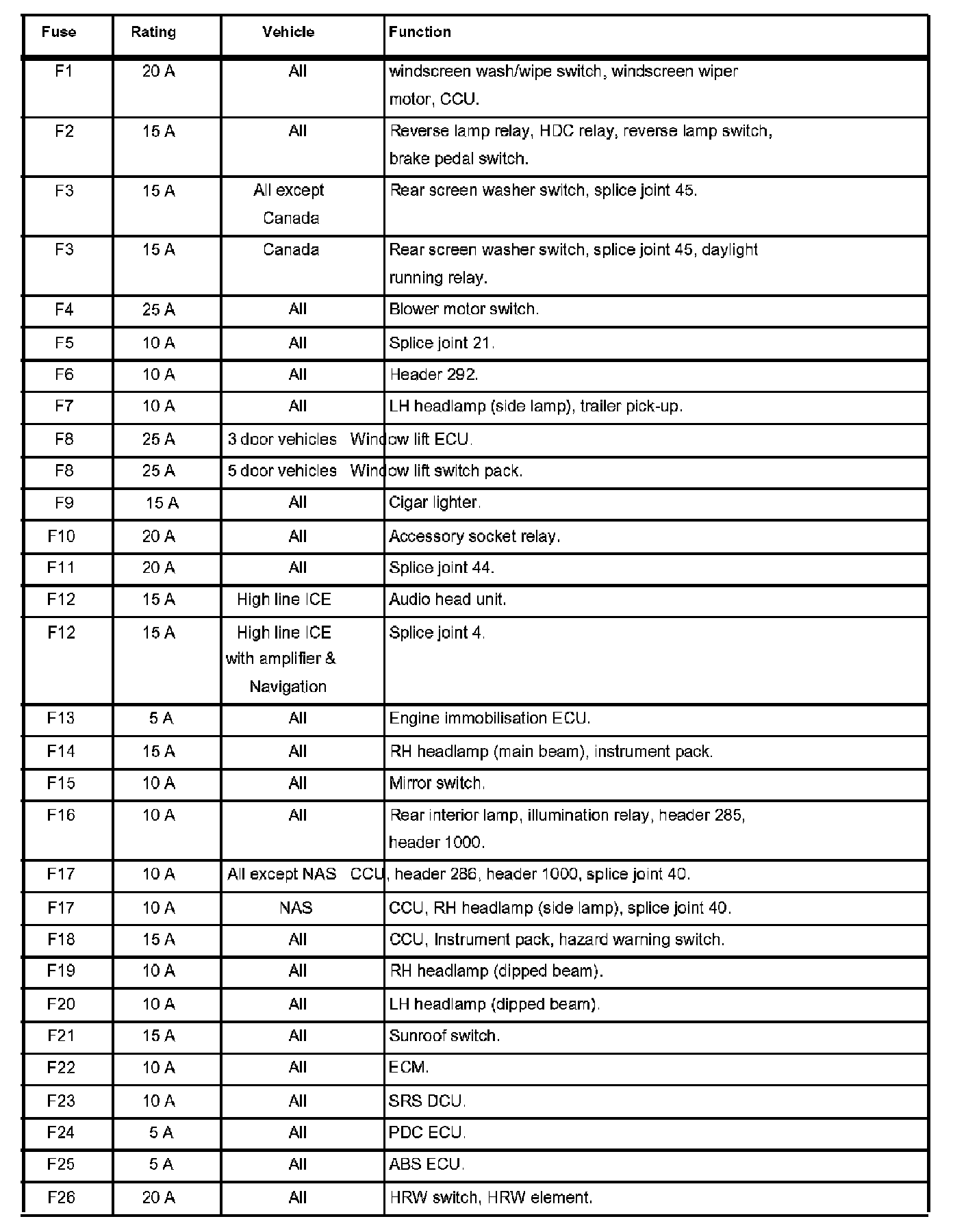

Fuses (F1 - F26):




Fuses (F27 - F41):
