70.50.01 Servo assembly - LHD: Remove

  1. Td4 models: Remove air cleaner element
  2. Remove brake master cylinder.

    Refer to CYLINDER - MASTER - TANDEM - LHD .

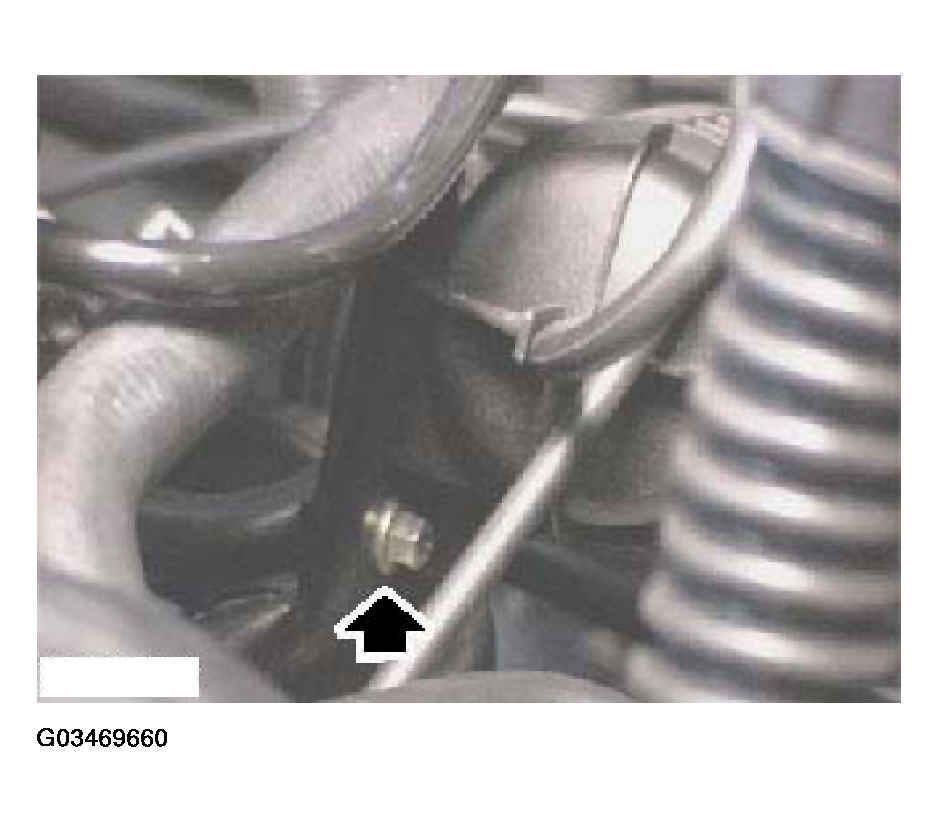

    Fig 1: Removing Bolt Securing Vacuum Reservoir And Position Reservoir Aside
    G03469660Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Td4 models:  Remove bolt securing vacuum reservoir and position reservoir aside.

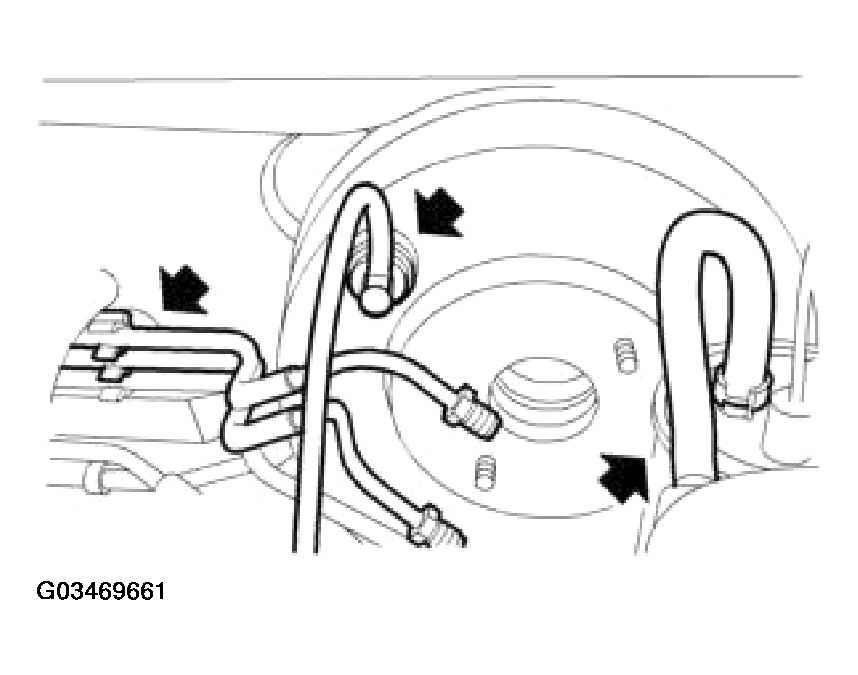

    Fig 2: Removing Screw Securing Fuel Filter Housing To Bracket
    G03469661Courtesy of LAND ROVER NORTH AMERICA, INC.
  4. Remove screw securing fuel filter housing to bracket.
  5. Release fuel filter housing from bracket.
  6. Release and disconnect vacuum hose from servo.
  7. Remove and discard vacuum hose seal.
  8. Release brake pipes from clips on bulkhead.

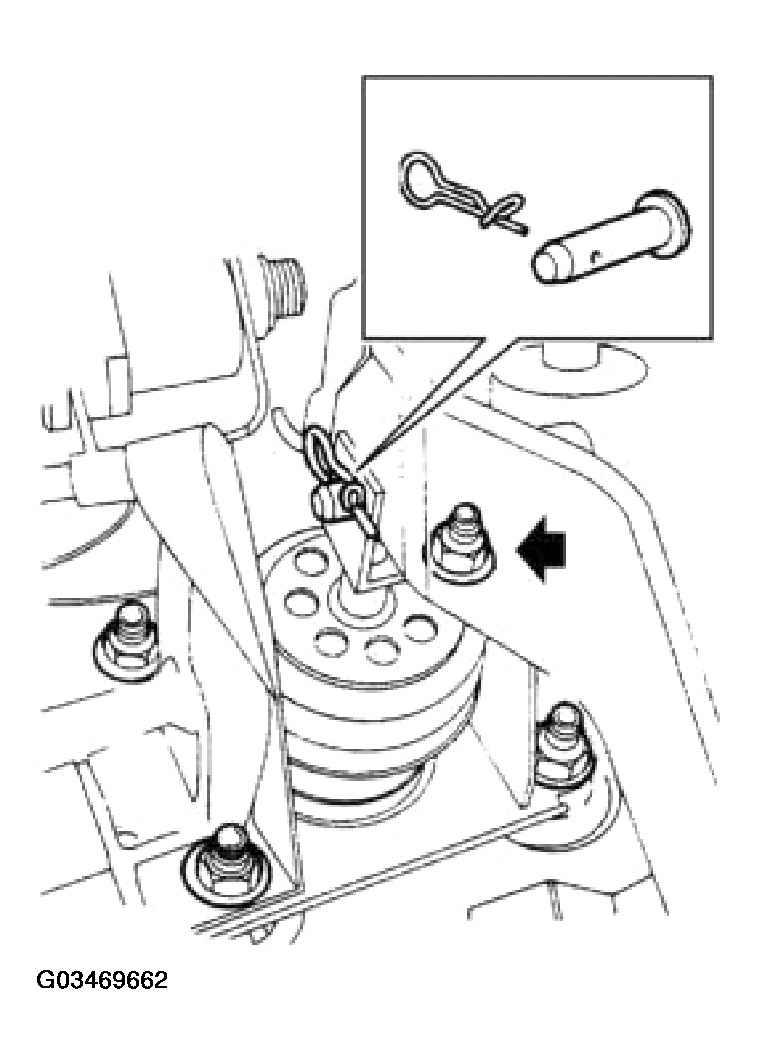

    Fig 3: Removing Clip And Clevis Pin Securing Brake Servo Push Rod To Brake Pedal
    G03469662Courtesy of LAND ROVER NORTH AMERICA, INC.
  9. Remove clip and clevis pin securing brake servo push rod to brake pedal.
  10. Remove 4 nuts securing servo to body and remove servo.
  11. Remove and discard gasket.
