18.30.24 Sensor - camshaft position (CMP): Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover.

    REMOVAL

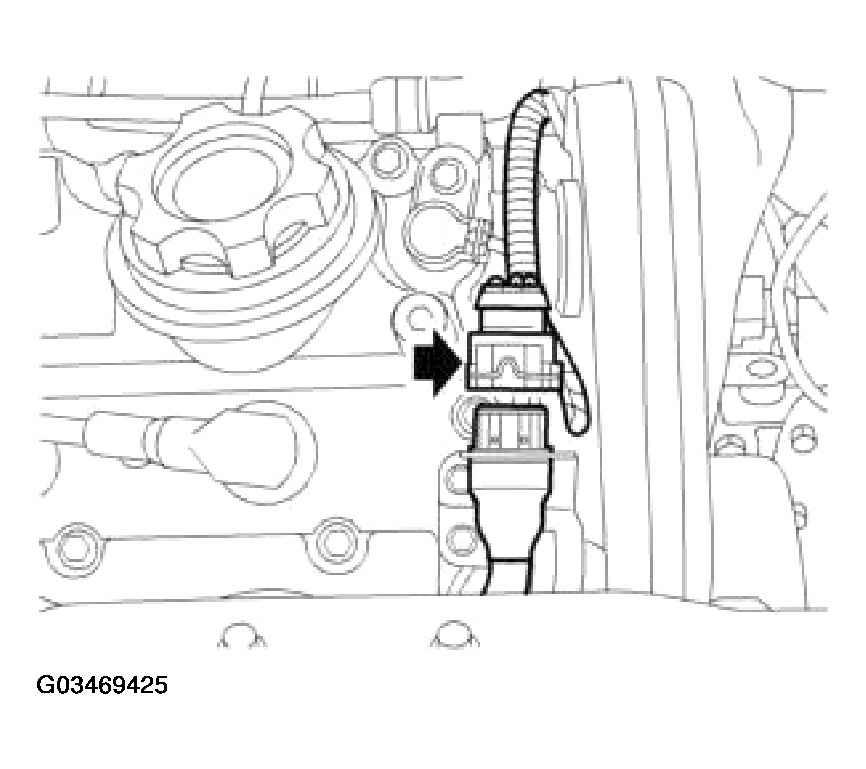

    Fig 1: Disconnecting Multiplug
    G03469425Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Release CMP multiplug from bracket and disconnect multiplug.

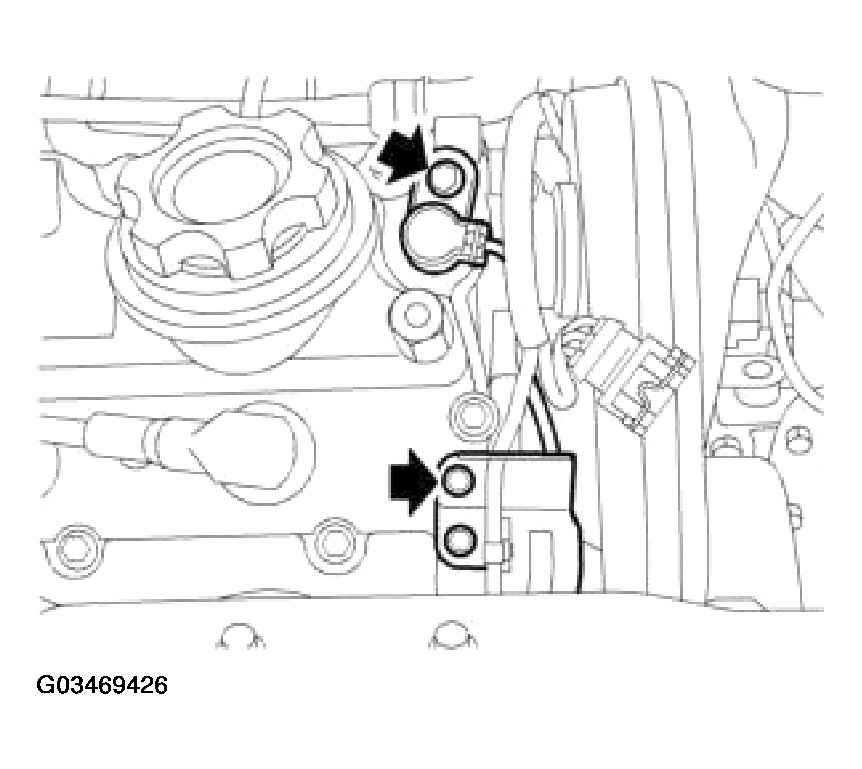

    Fig 2: Removing Bolt Securing CMP Sensor Multiplug Bracket
    G03469426Courtesy of LAND ROVER NORTH AMERICA, INC.
  4. Remove bolt securing CMP sensor multiplug bracket and release CMP sensor lead from behind bracket.
  5. Remove bolt securing CMP sensor to camshaft cover.
  6. Remove CMP sensor and discard seal.
