General Data: Engine-V8

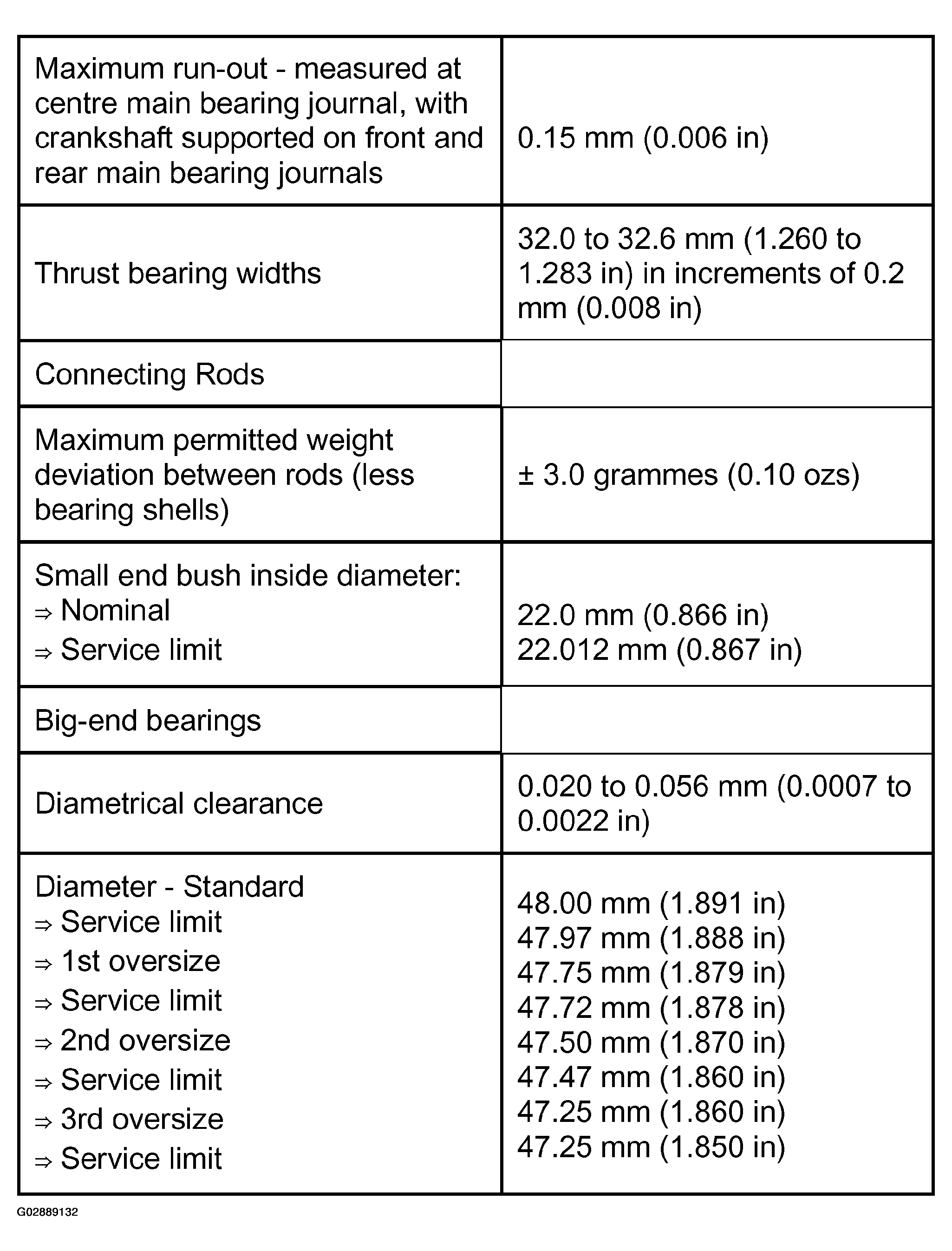

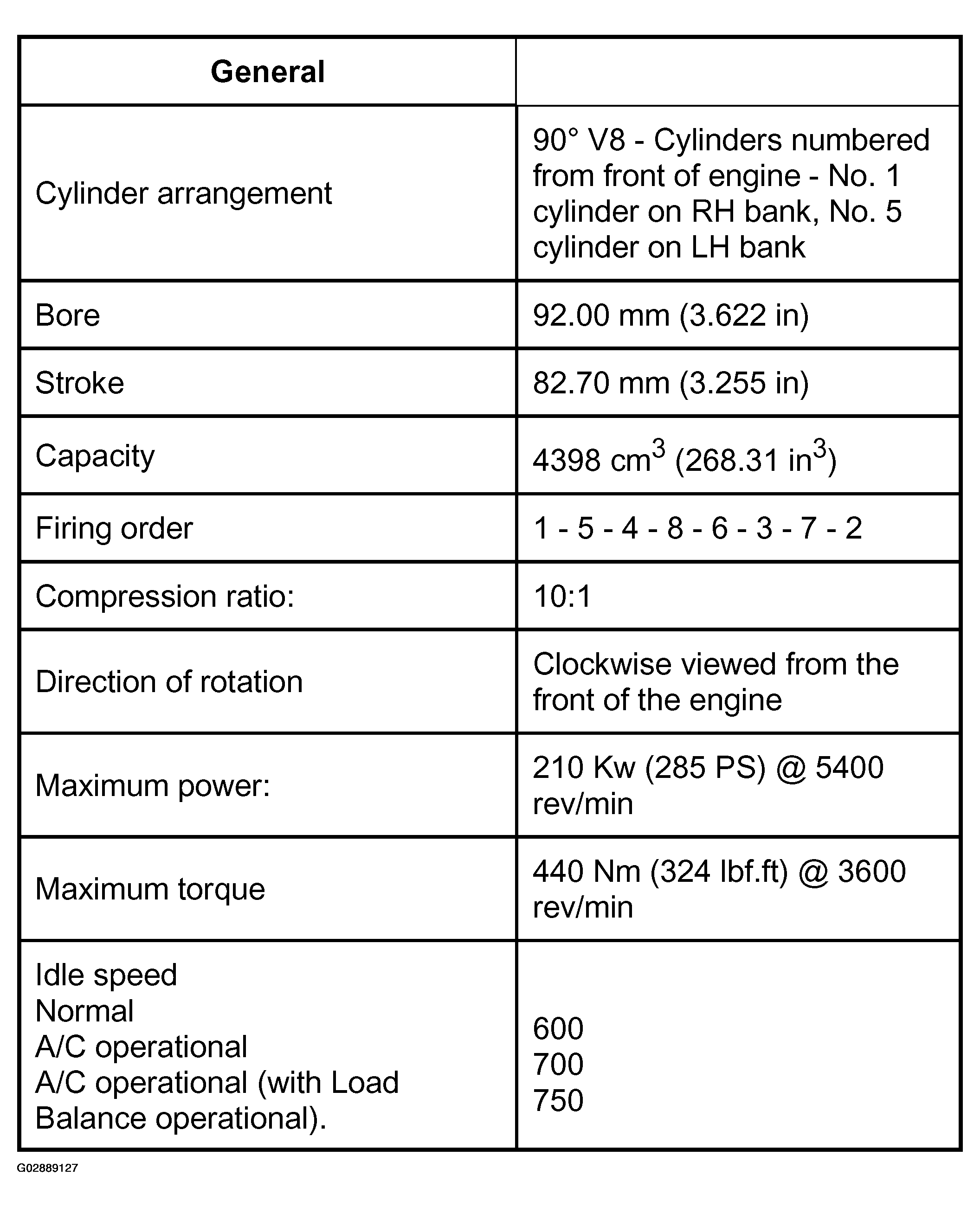

Fig 1: Engine-V8 Specifications(1 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.

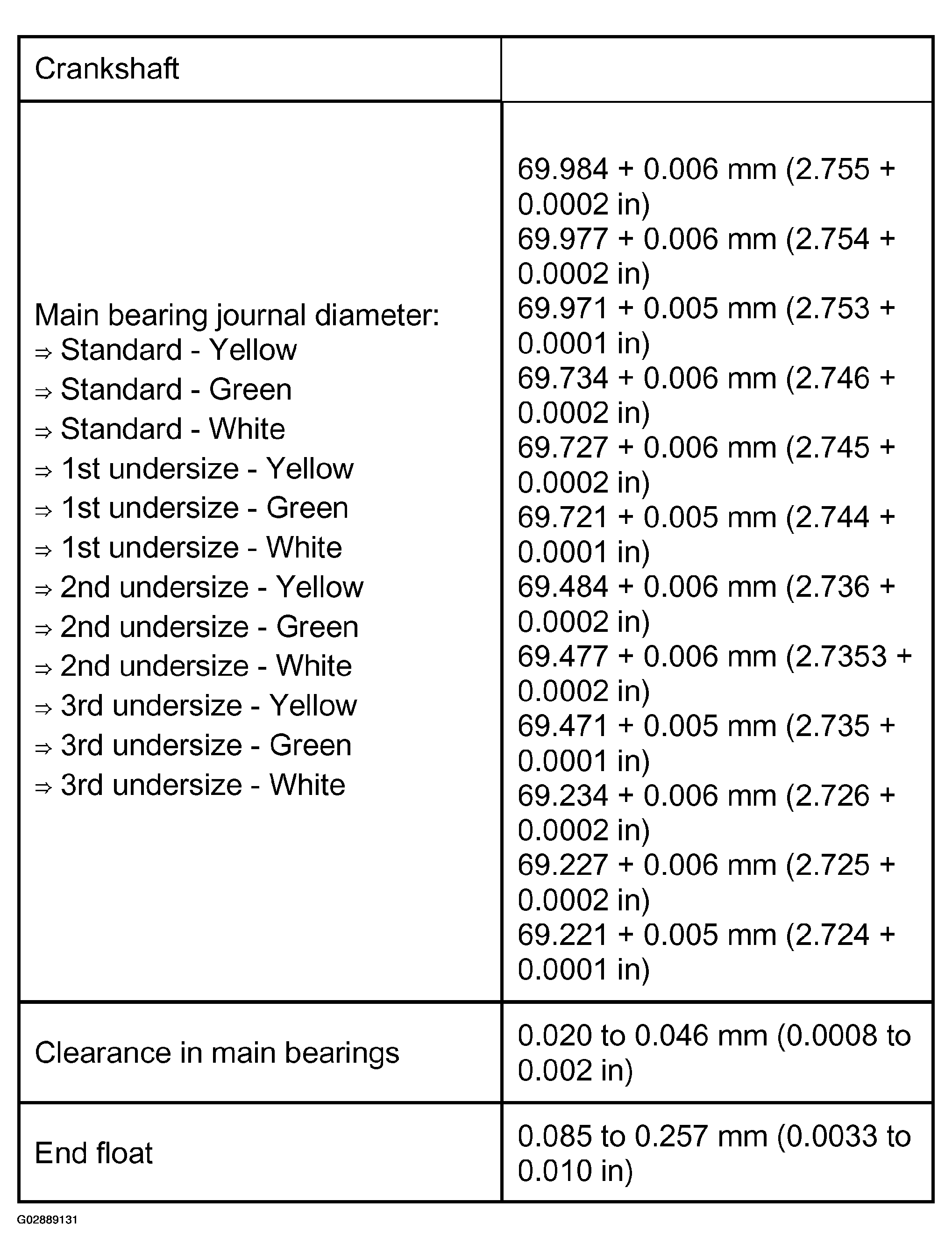

Fig 2: Engine-V8 Specifications(2 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.

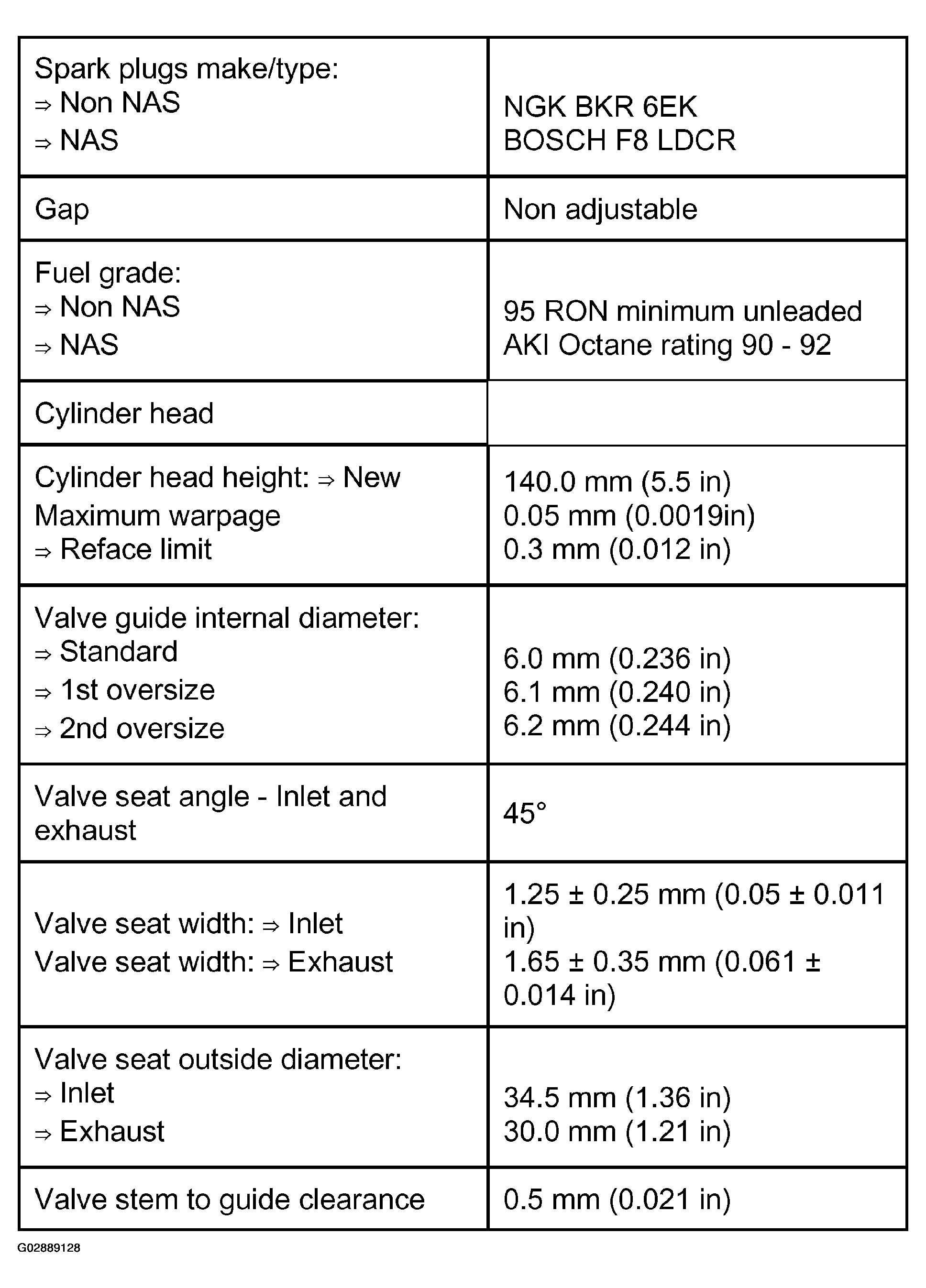

Fig 3: Engine-V8 Specifications(3 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.

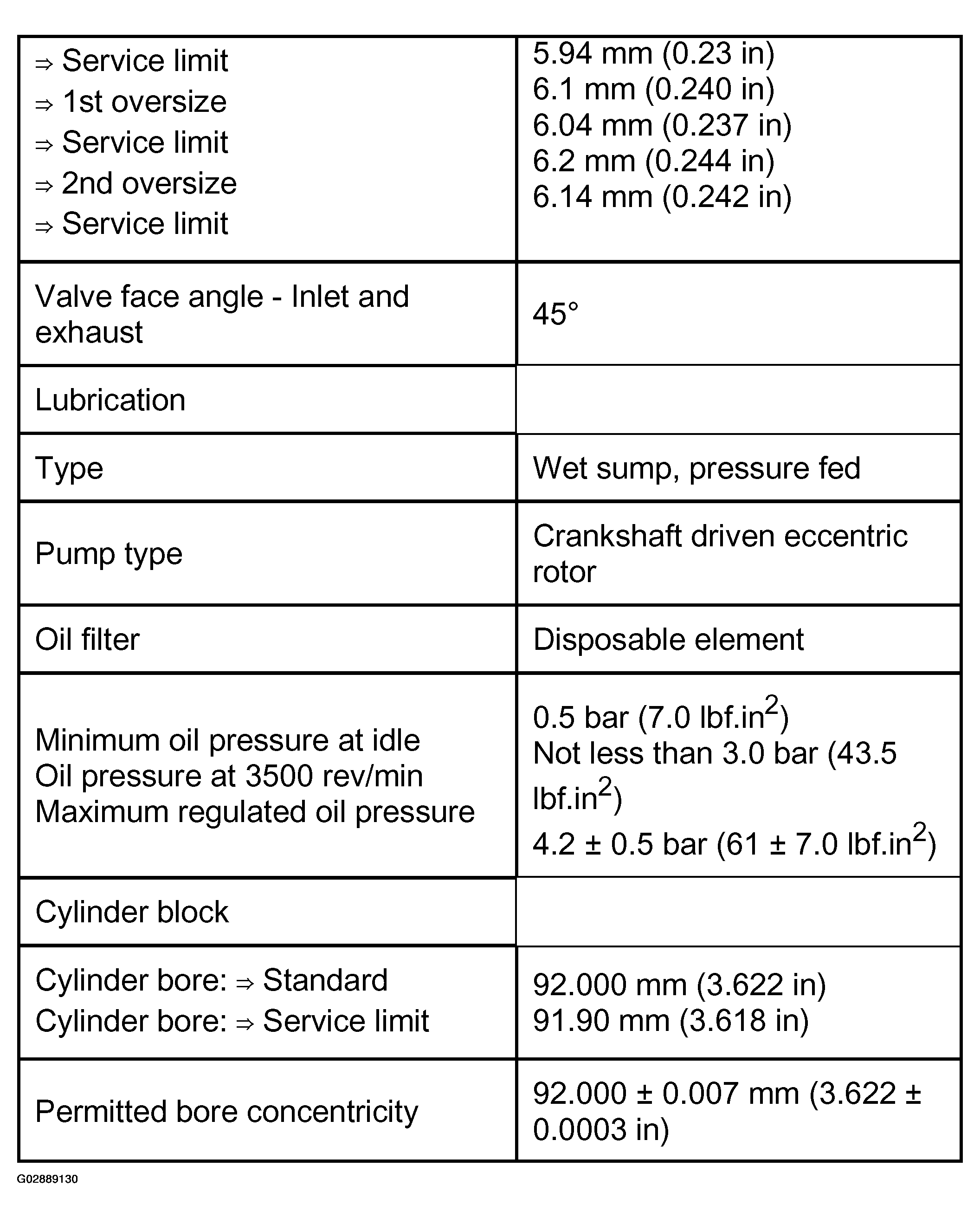

Fig 4: Engine-V8 Specifications(4 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.

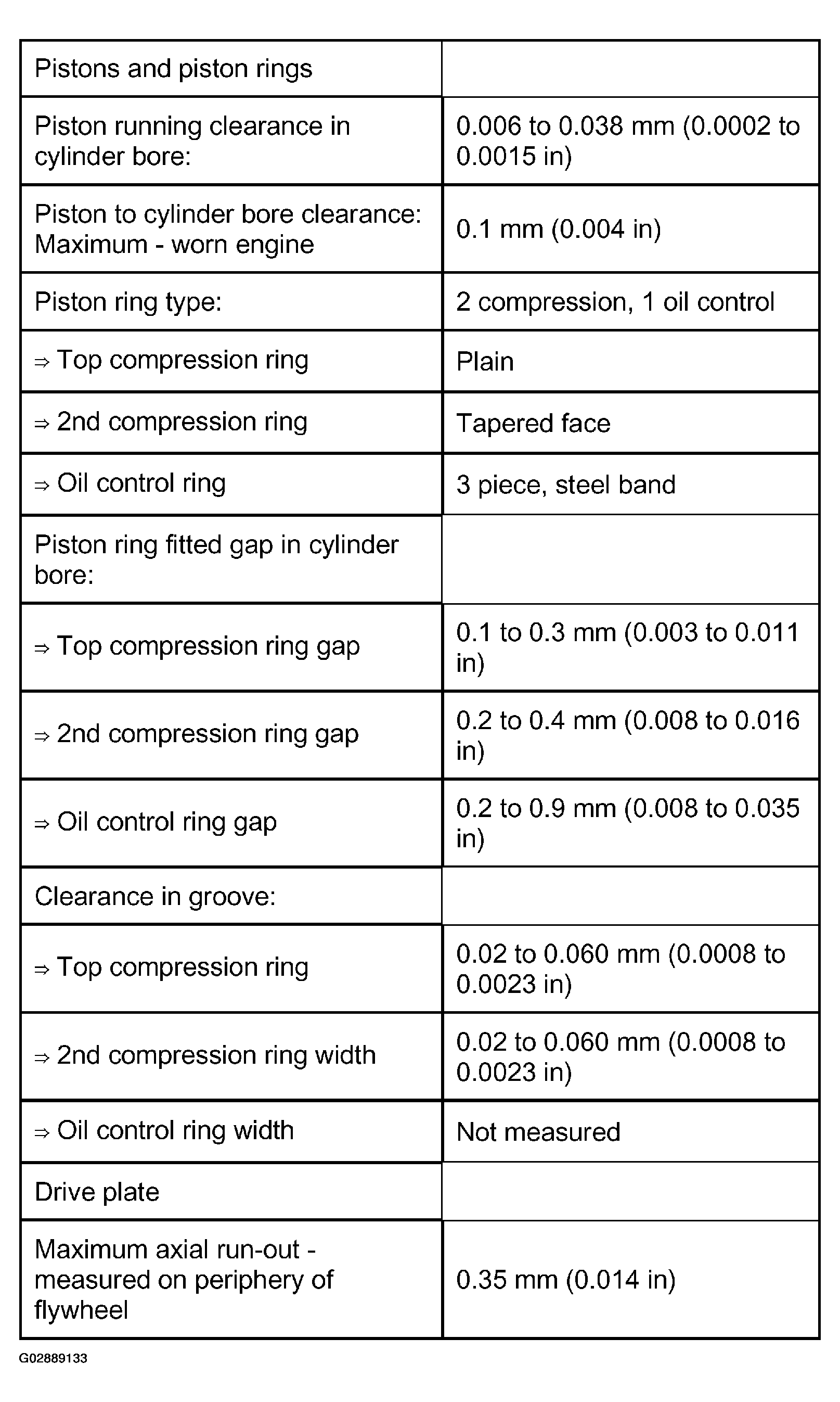

Fig 5: Engine-V8 Specifications(5 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.

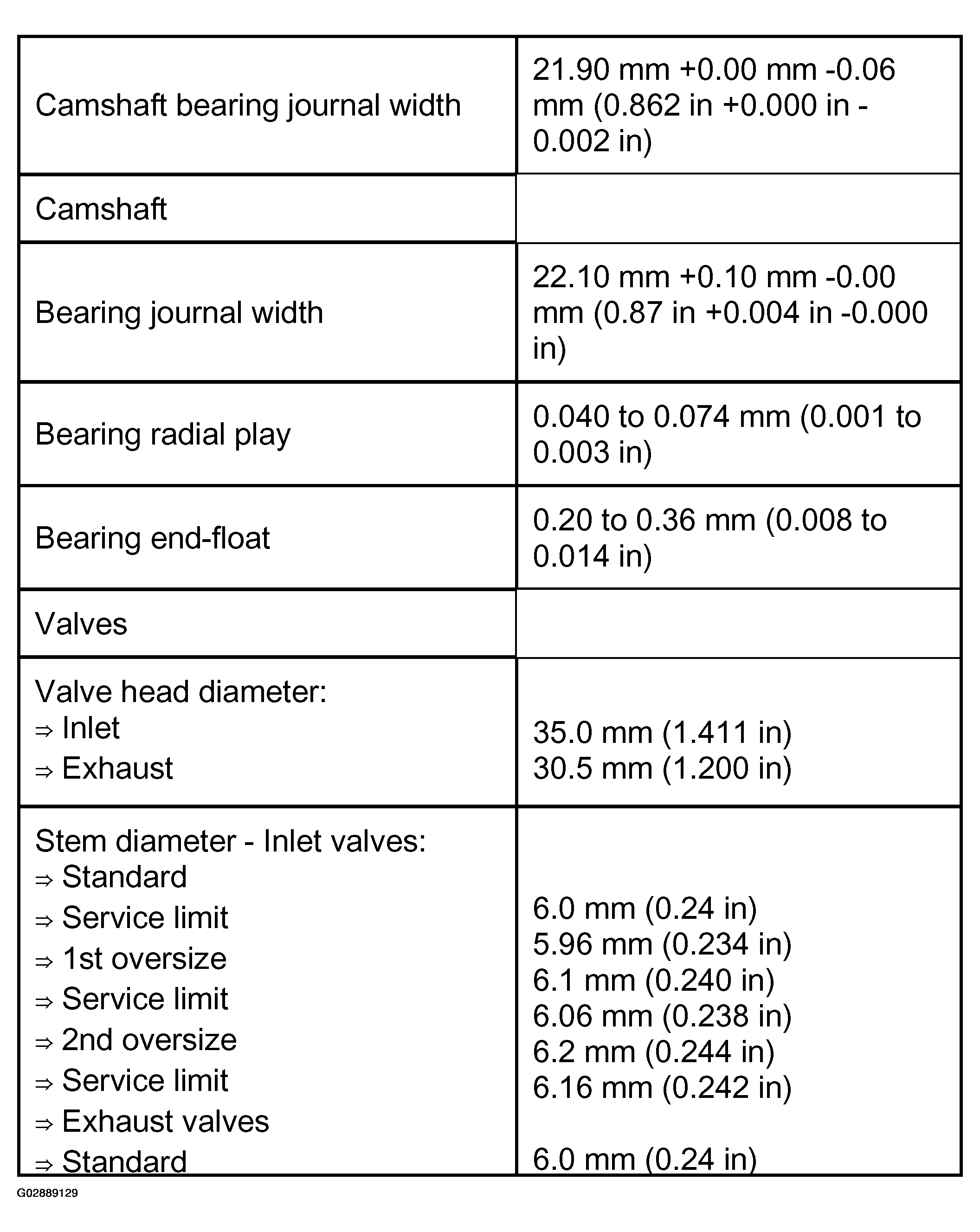

Fig 6: Engine-V8 Specifications(6 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 7: Engine-V8 Specifications(7 Of 7)
Courtesy of LAND ROVER NORTH AMERICA, INC.
