Control Diagram

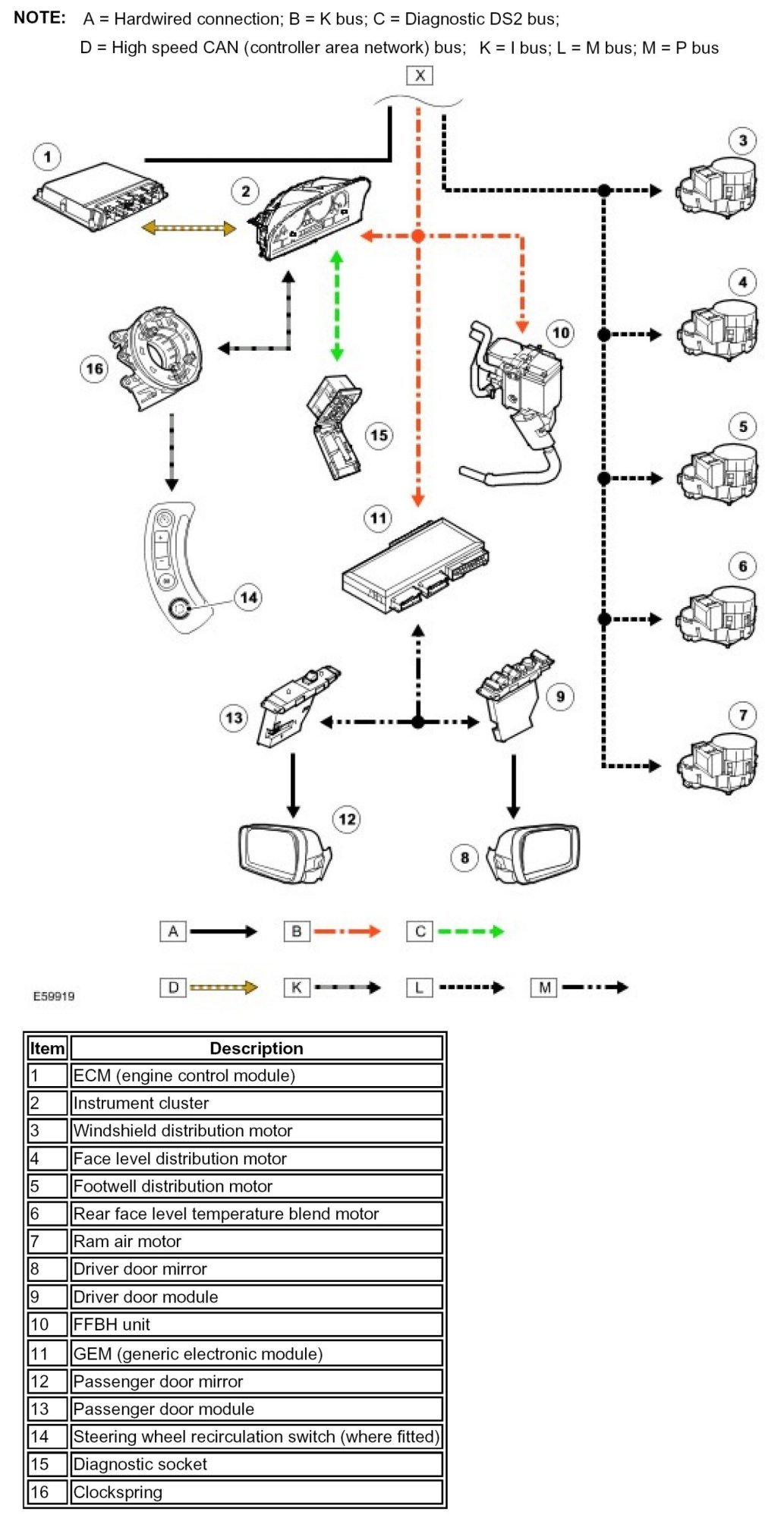

CONTROL DIAGRAM - MANUAL SYSTEM, SHEET 1 OF 2

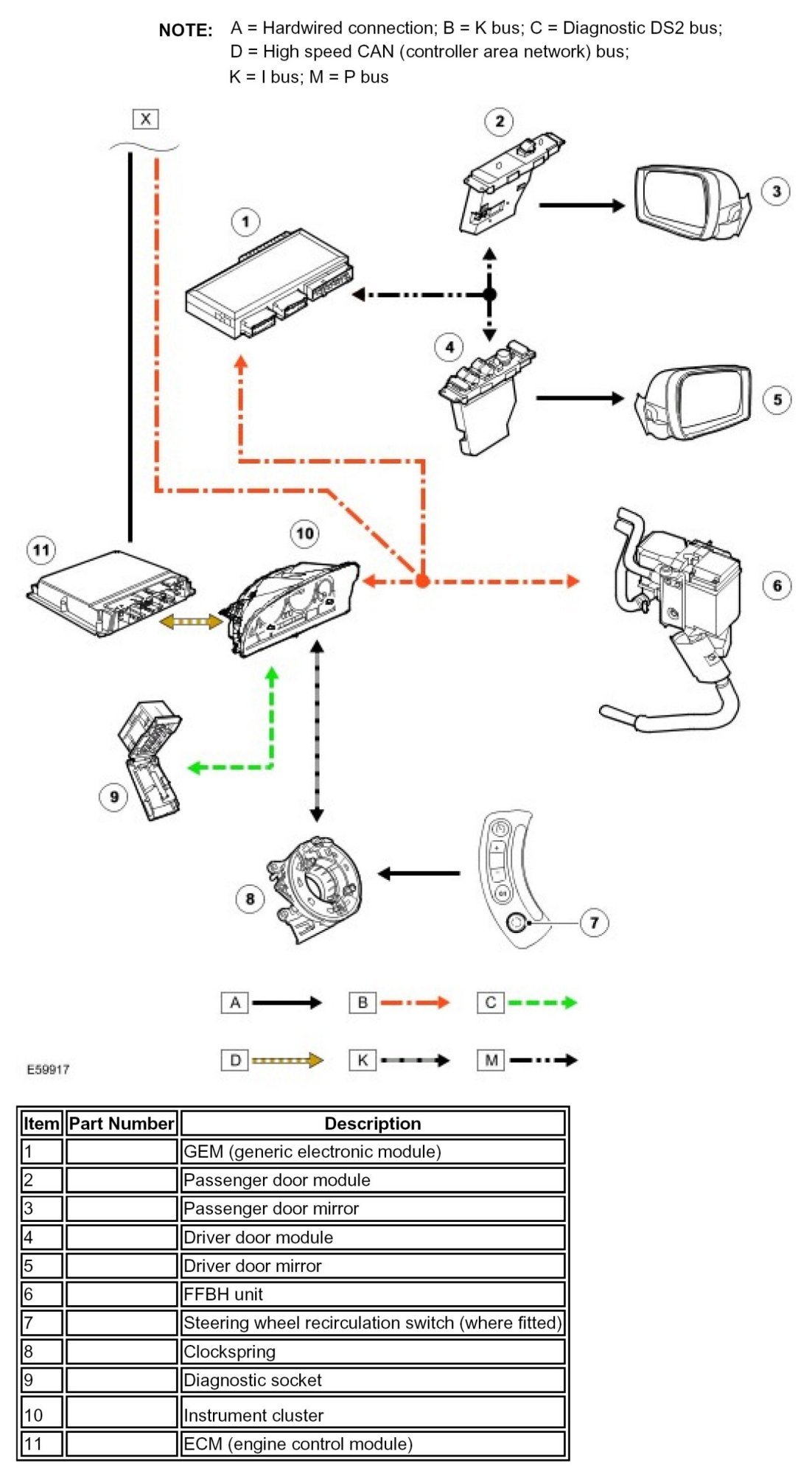

CONTROL DIAGRAM - MANUAL SYSTEM, SHEET 2 OF 2

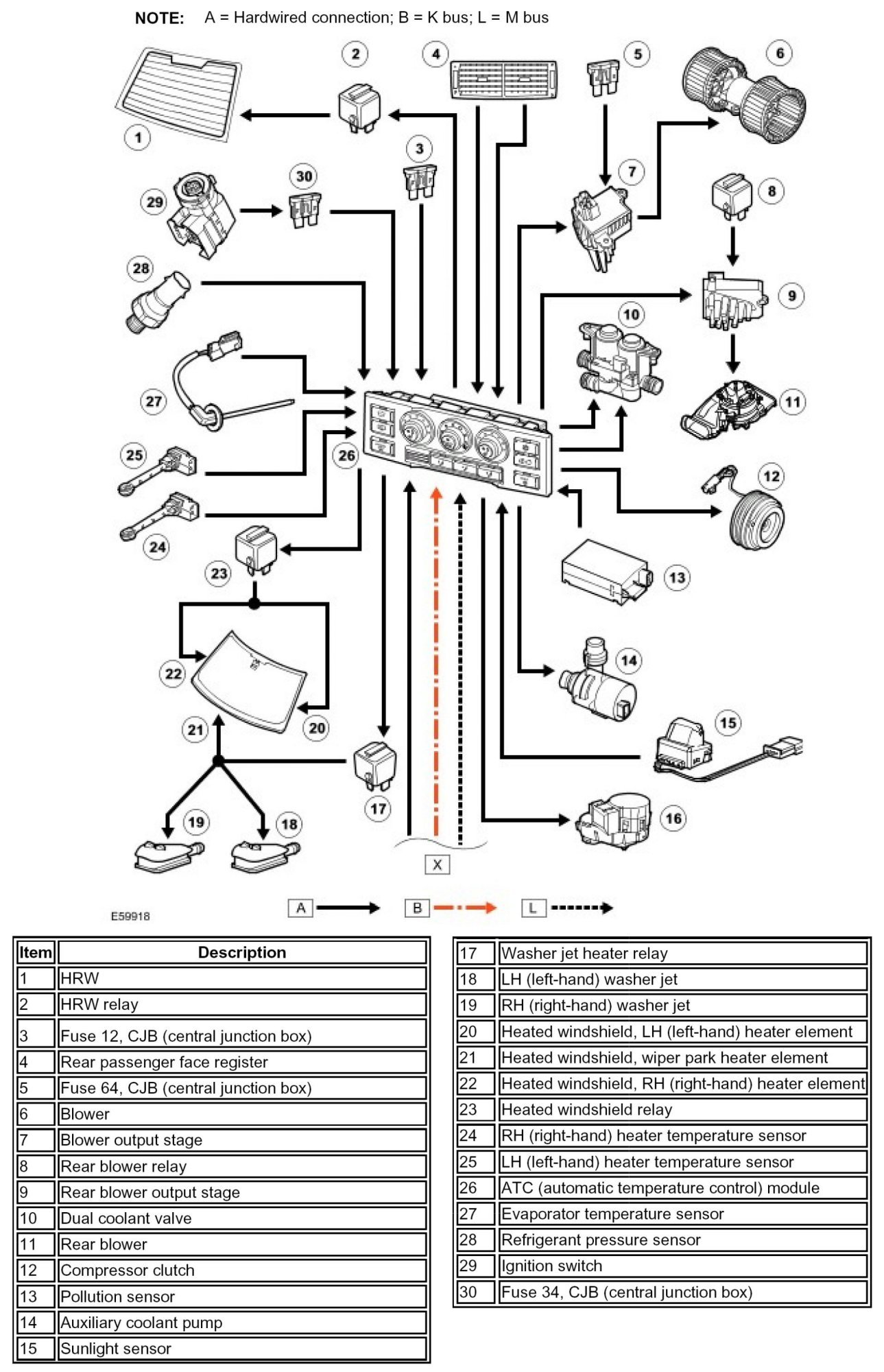

CONTROL DIAGRAM - AUTOMATIC SYSTEM, SHEET 1 OF 2

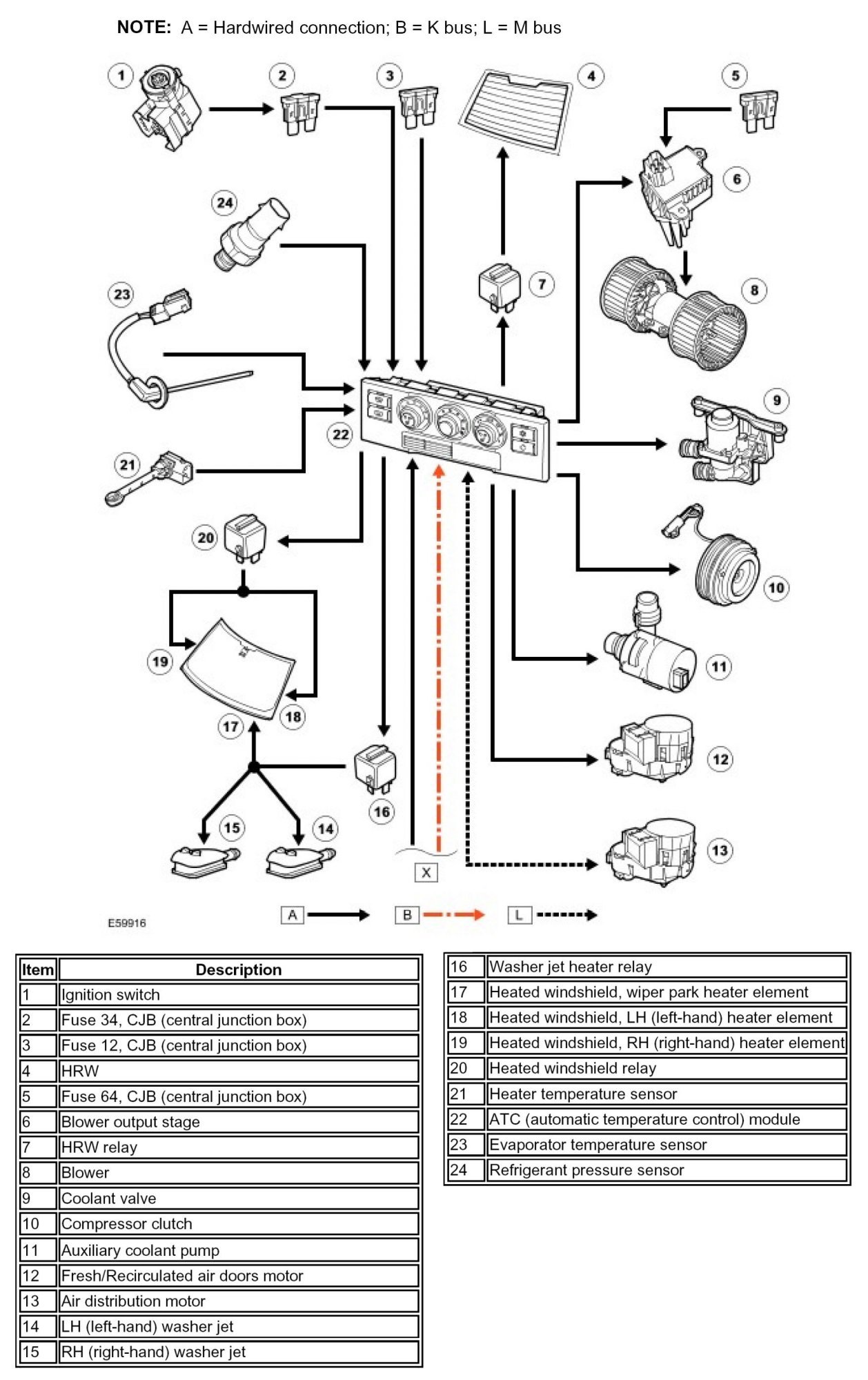

CONTROL DIAGRAM - AUTOMATIC SYSTEM, SHEET 2 OF 2
