Fuse Block: Locations

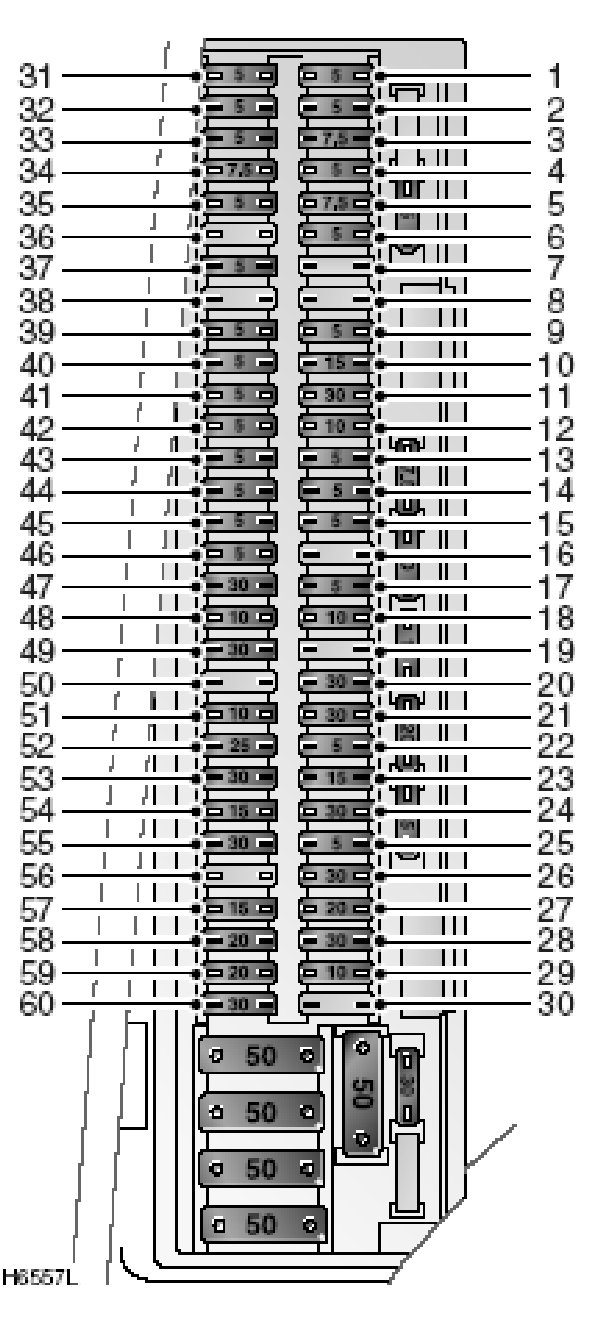

PASSENGER COMPARTMENT FUSE BOX

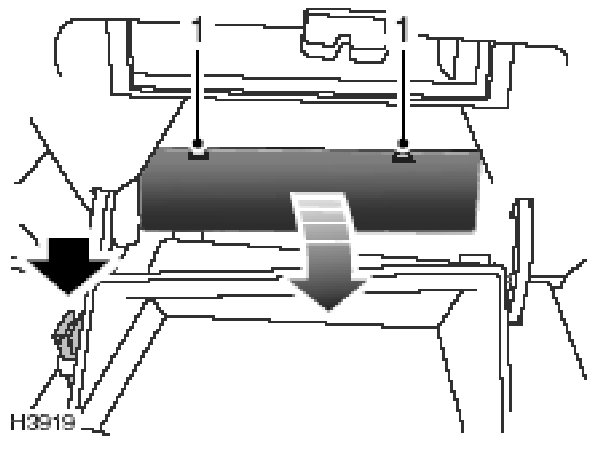

The passenger compartment fuse box is fitted behind the glovebox; to access the fuses, open the glovebox, then press down on the catches (1) whilst pulling the cover rearwards. The solid arrow in the illustration indicates the location of the fuse removal tool.

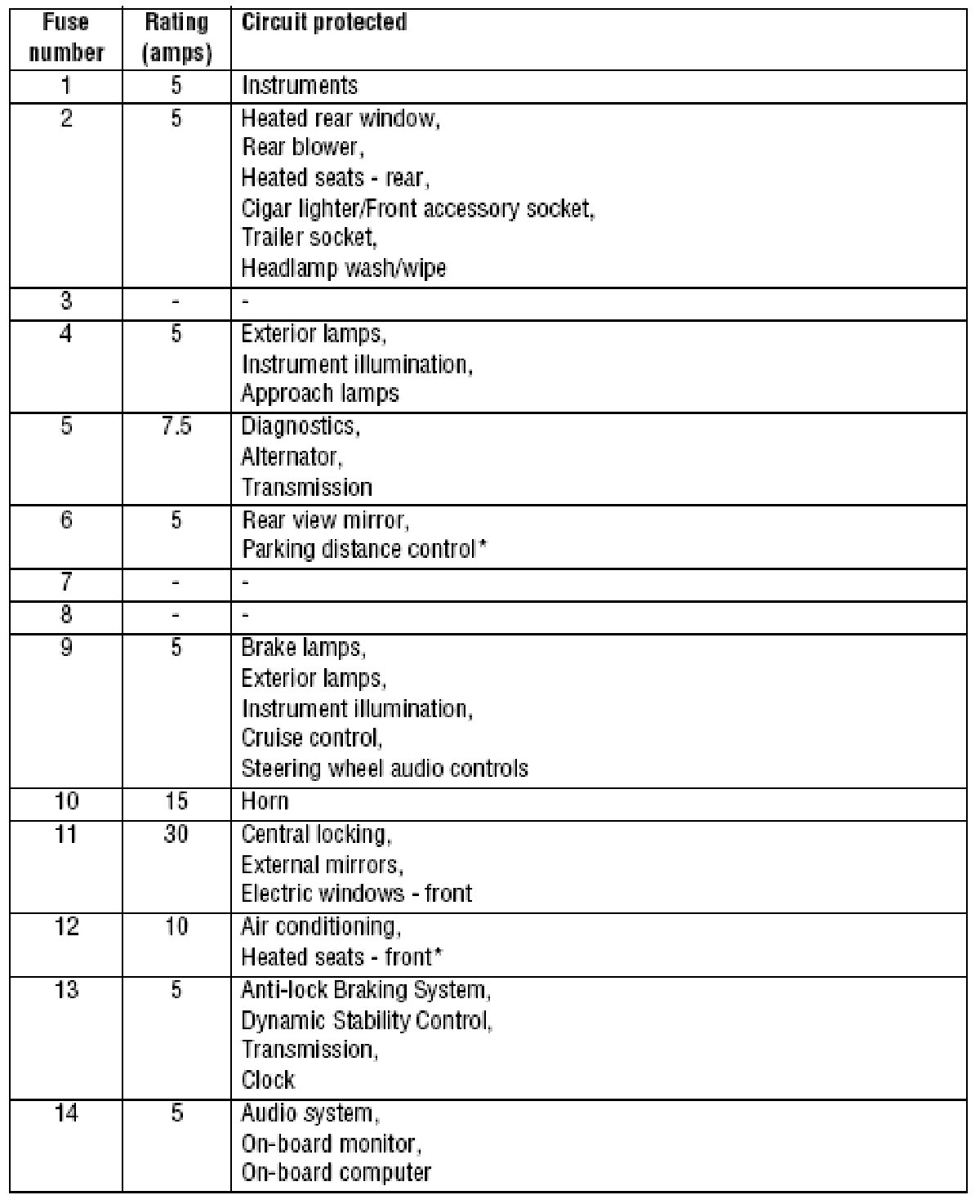

Fuses 1 - 14:

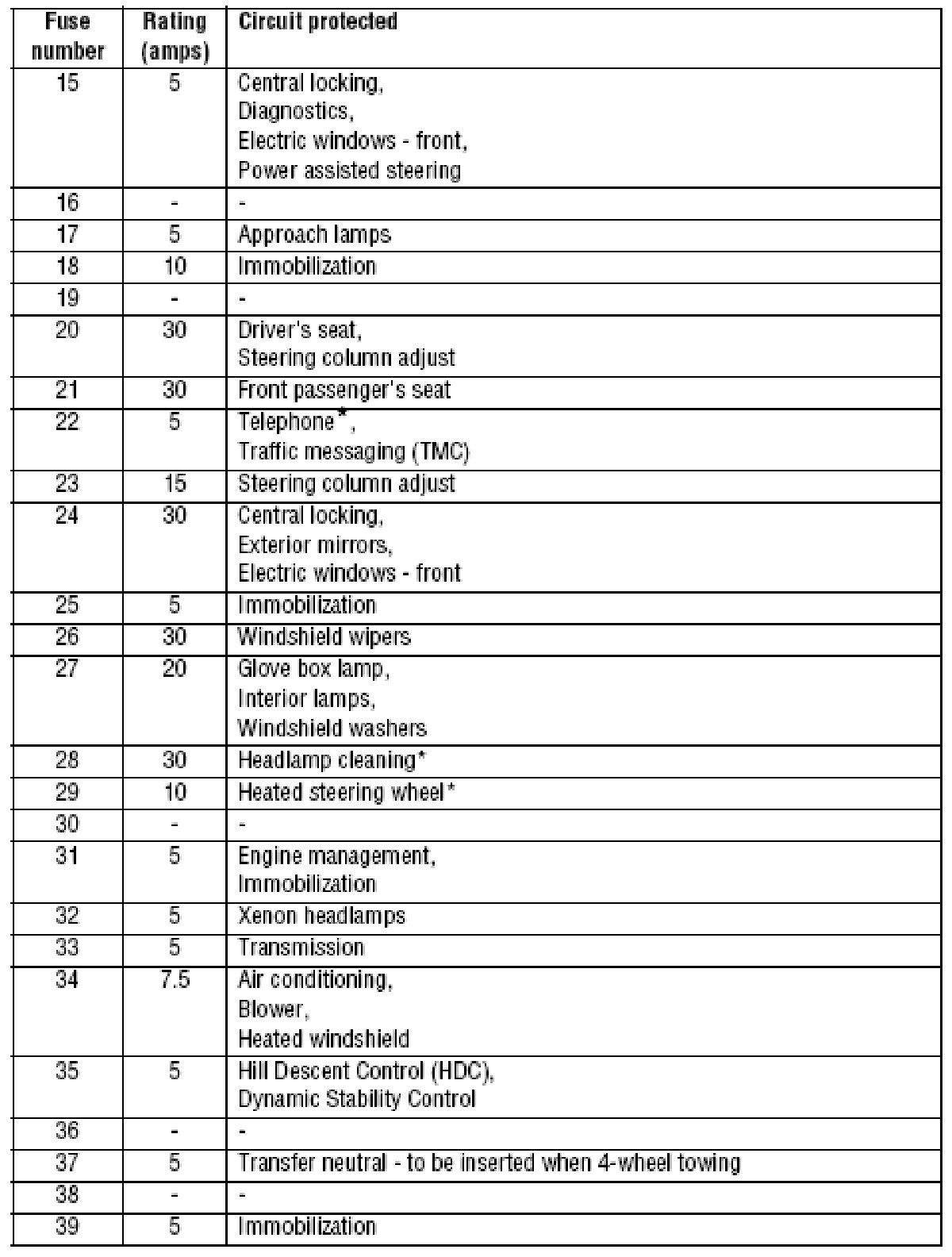

Fuses 15 - 39:

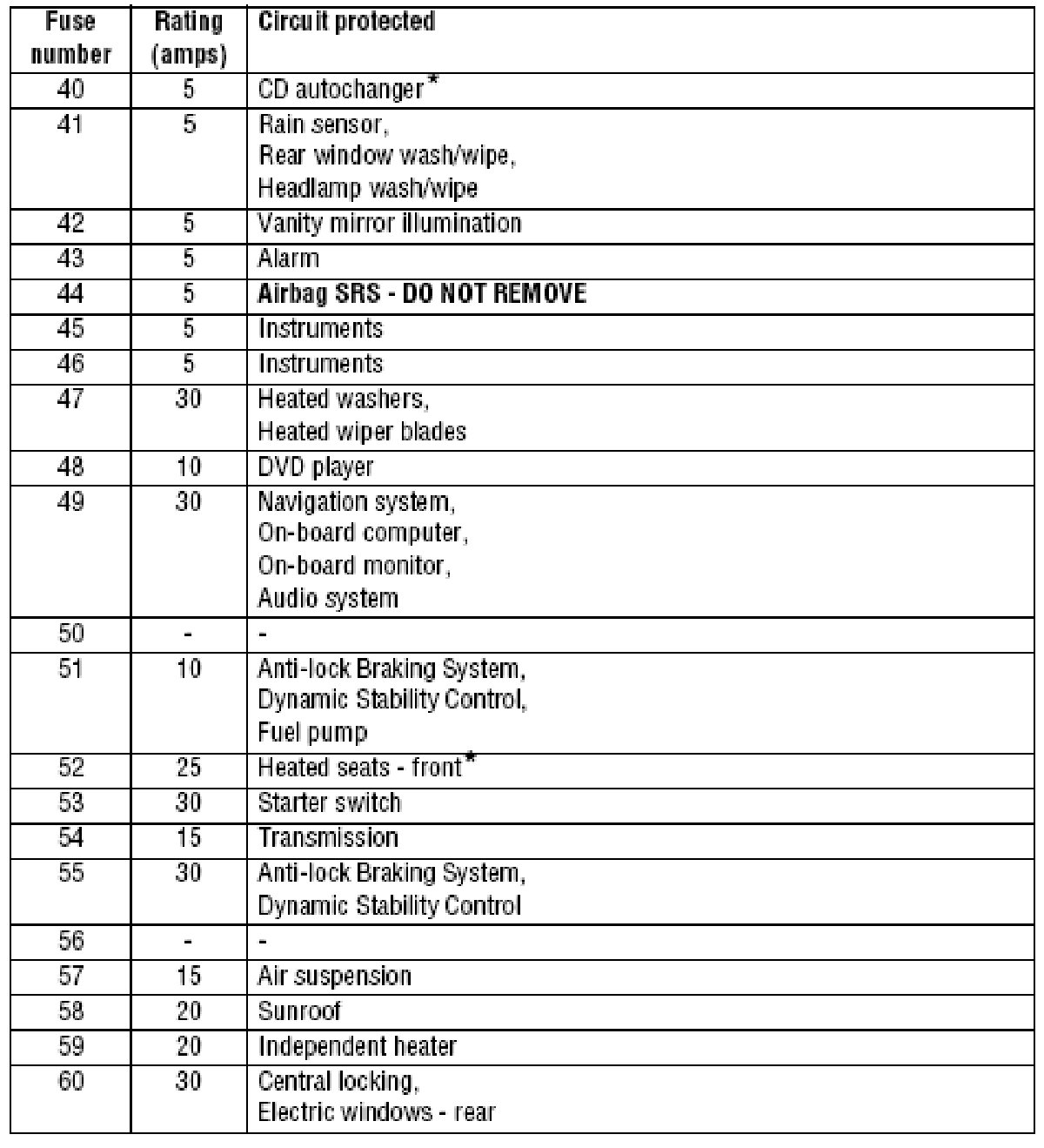

Fuses 40 - 60:

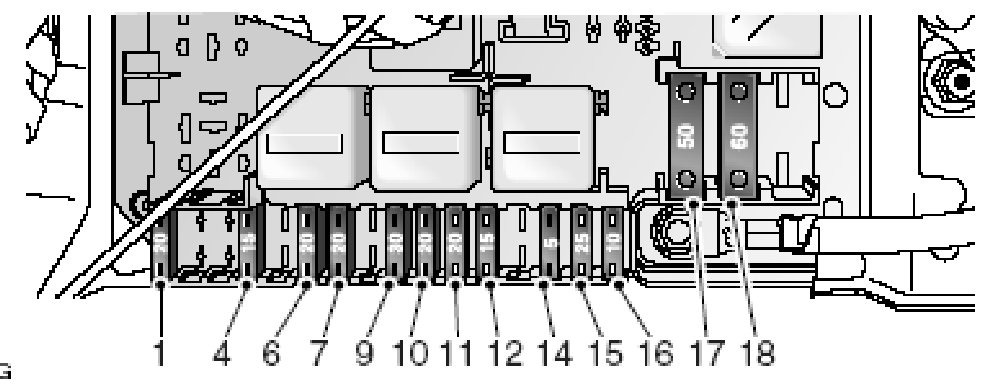

REAR LOADSPACE FUSE BOX

The fuse box is situated on the right-hand side of the loadspace behind the rear loadspace access hatch. Pull the handle to open the panel.

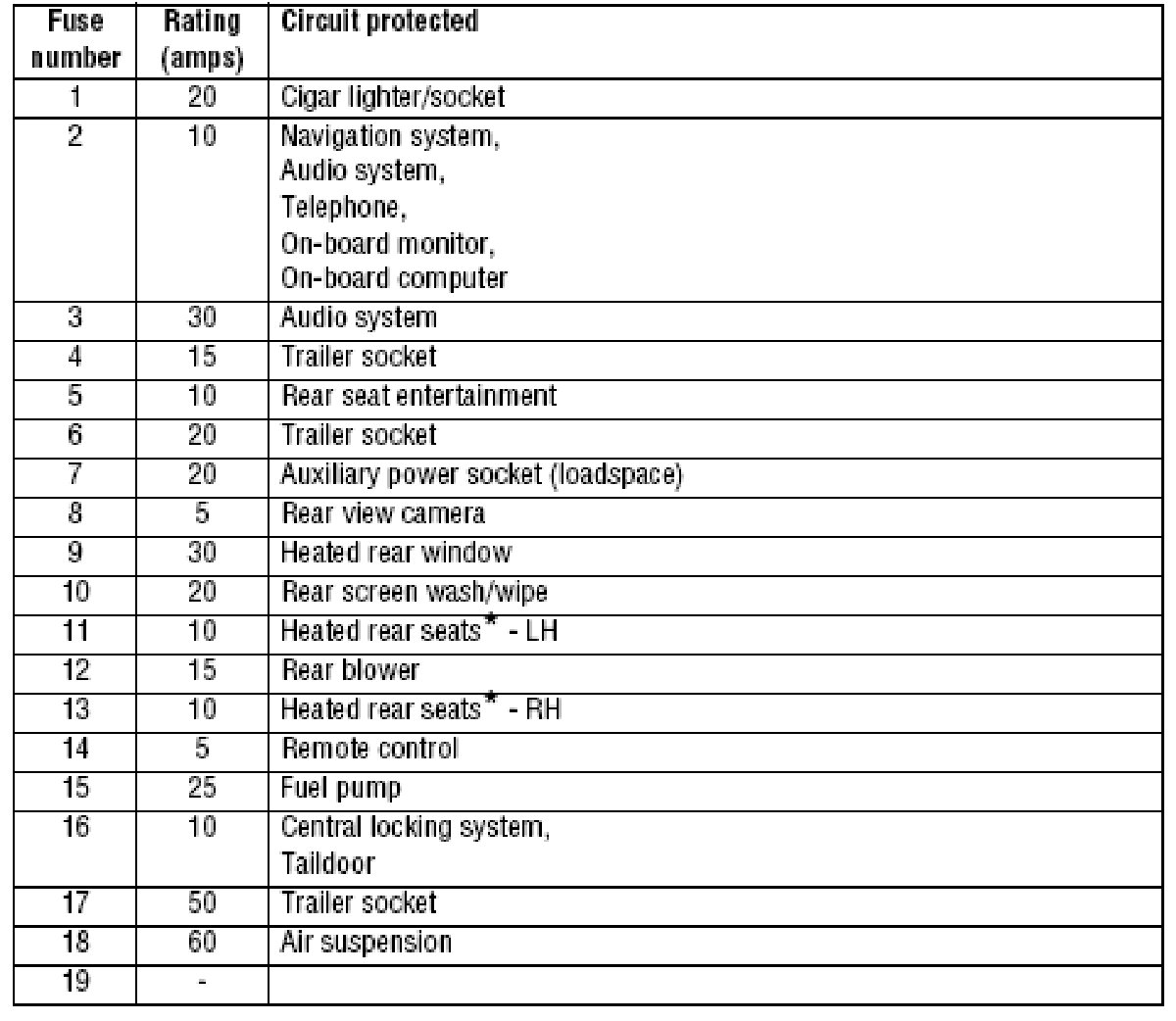

Fuses 1 - 19:
