Control Components: Notes
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

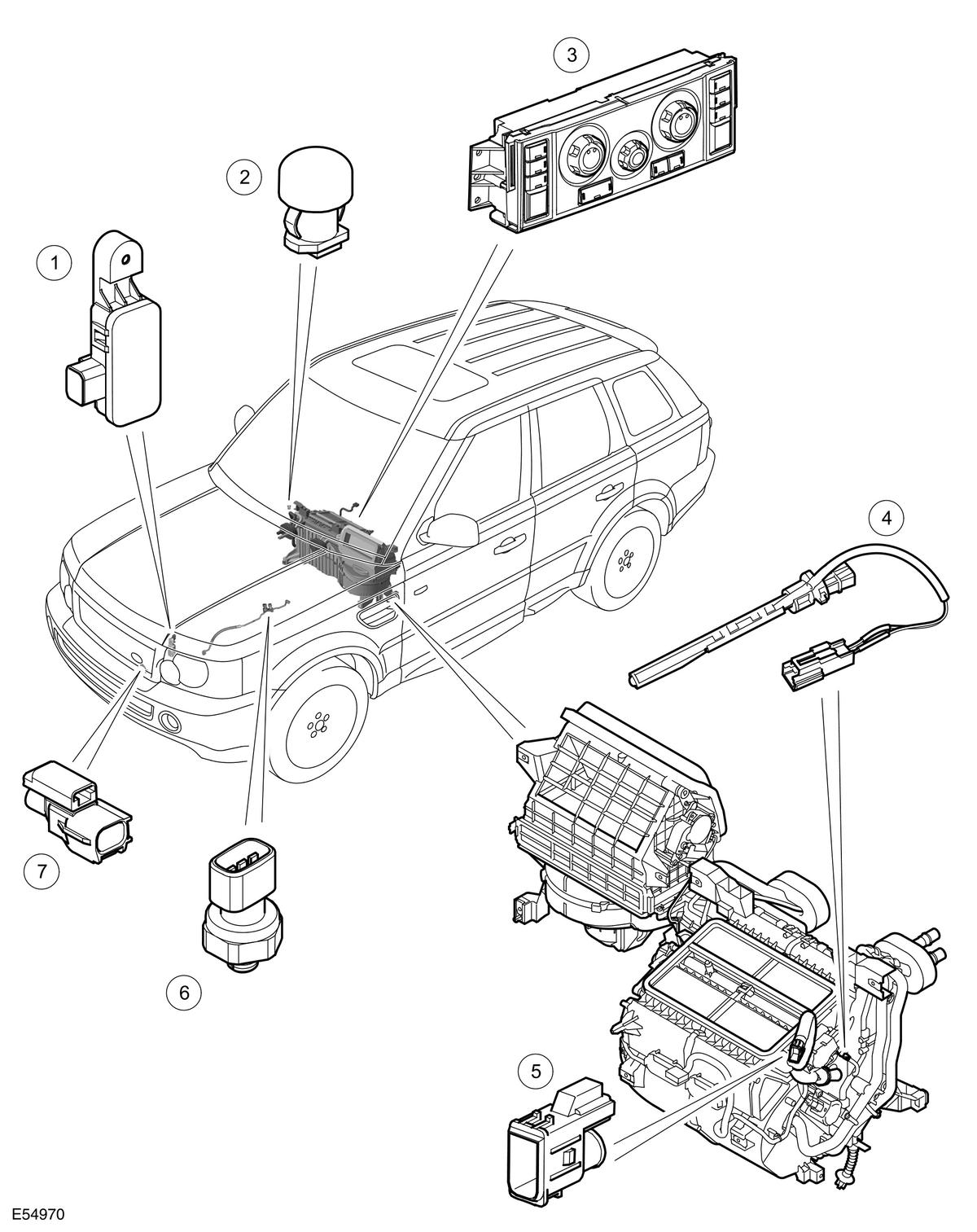

COMPONENT LOCATIONS
| Item Number | Description |
|---|---|
| 1 | Pollution sensor (Japan only) |
| 2 | Sunlight sensor |
| 3 | automatic temperature control (ATC) module |
| 4 | Evaporator temperature sensor |
| 5 | In-vehicle temperature sensor (all except Japan), or in-vehicle temperature and humidity sensor (Japan only) |
| 6 | Refrigerant pressure sensor |
| 7 | Ambient air temperature sensor |
NOTE:
right-hand drive (RHD) installation shown; left-hand drive (LHD) installation similar
