Air Bag Control Module

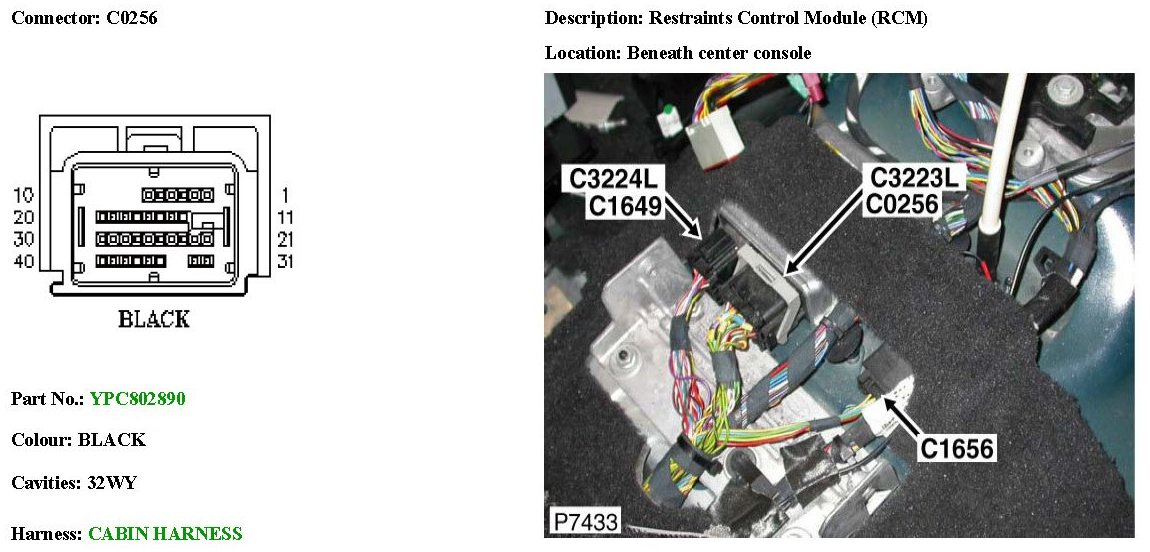

C0256 (Part 1):

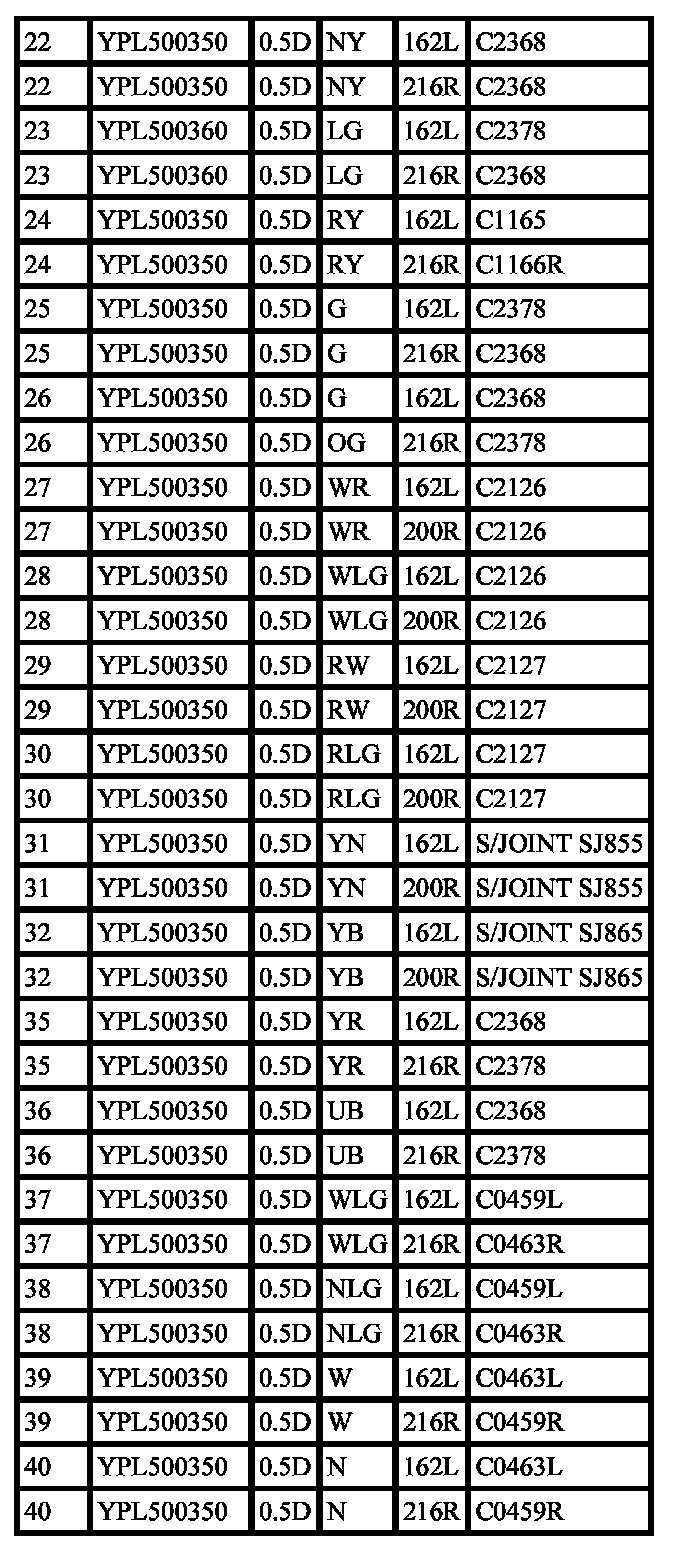

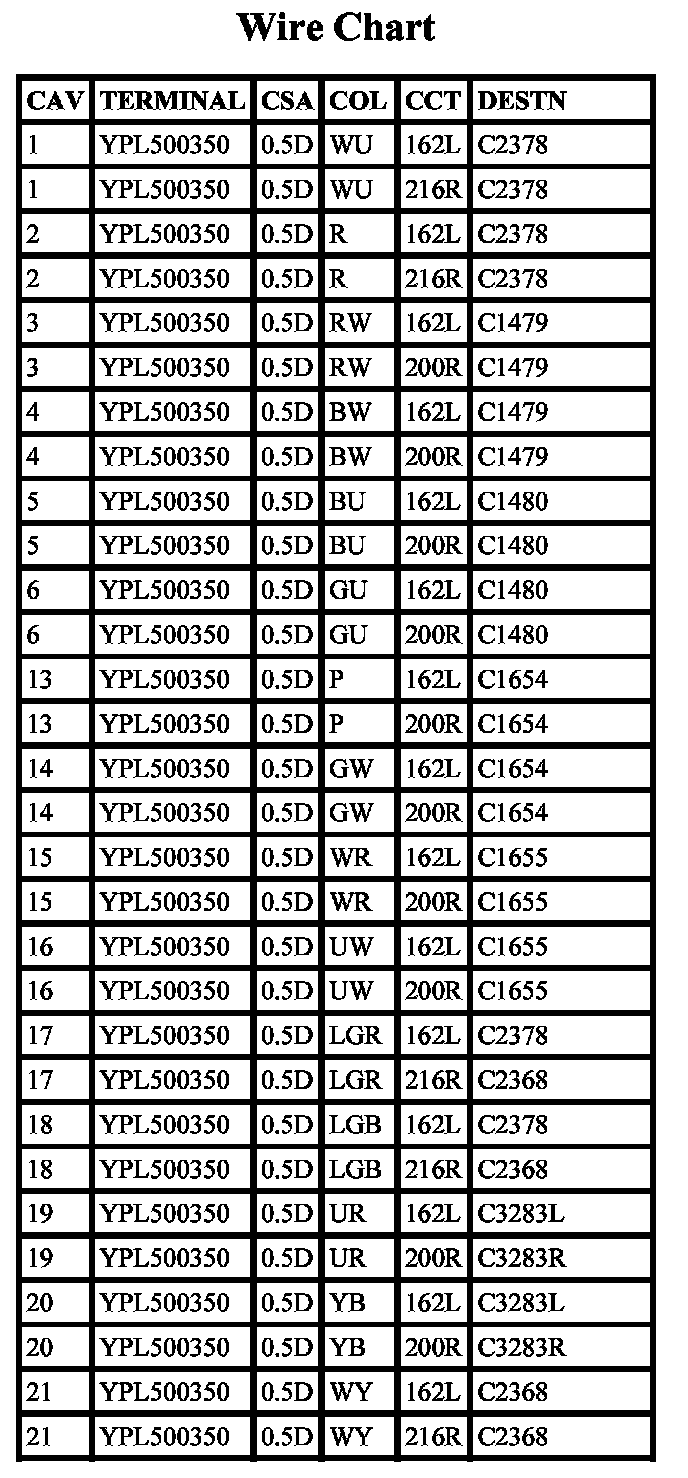

C0256 (Part 2):



C0256 (Part 3):

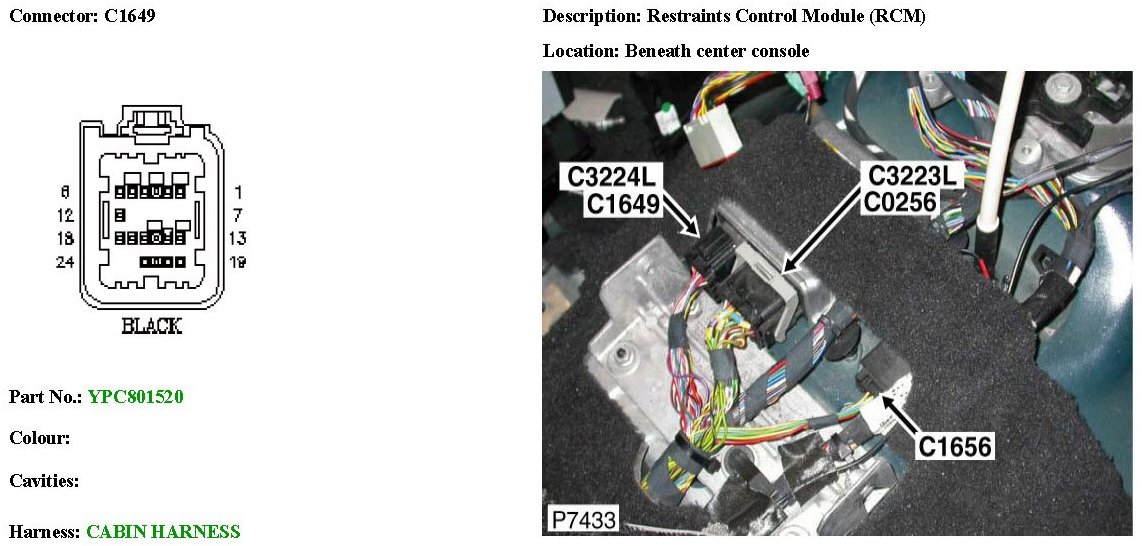

C1649 (Part 1):

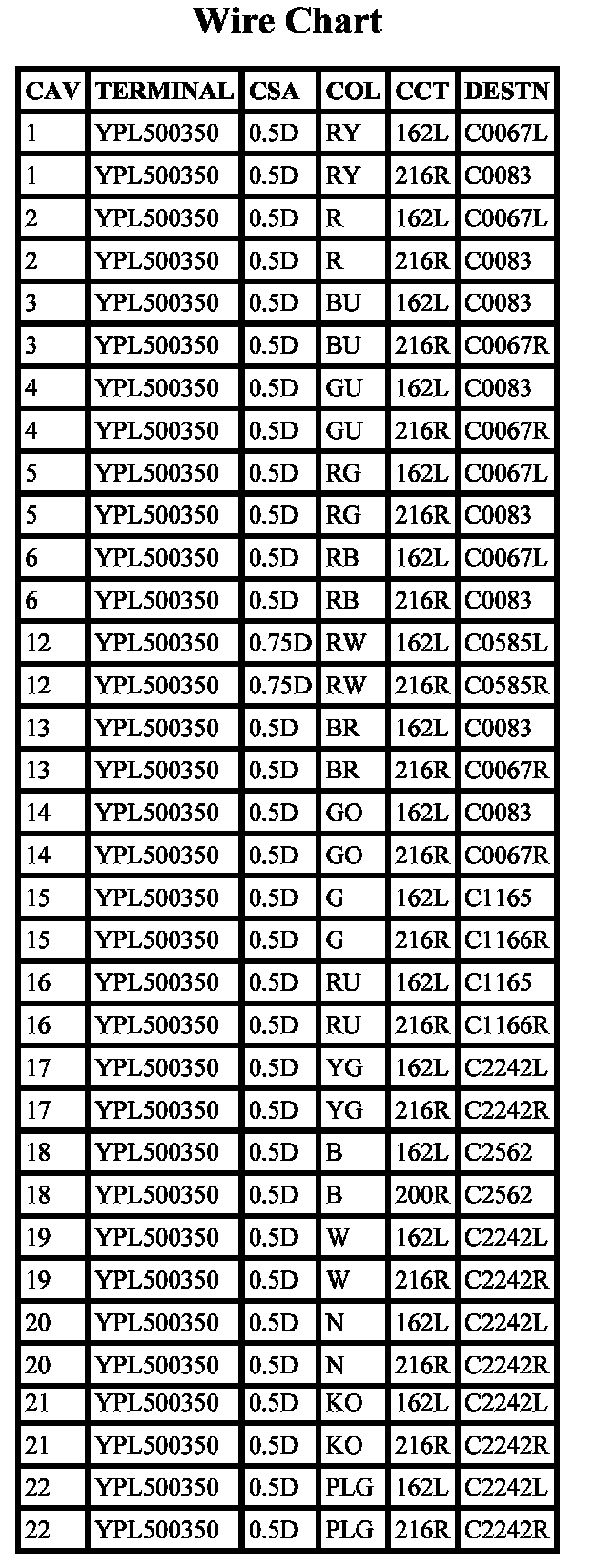

C1649 (Part 2):

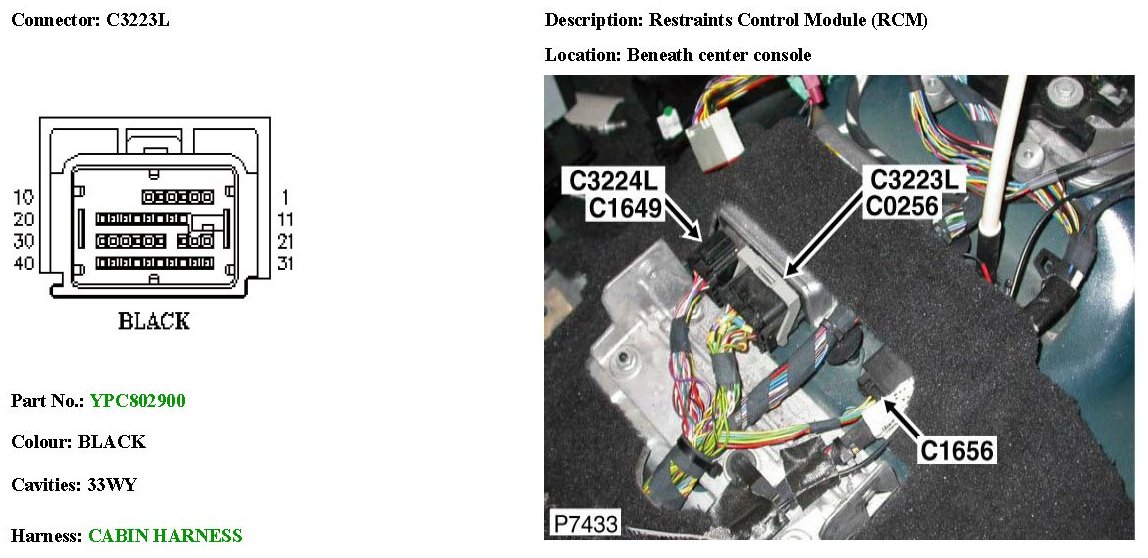

C3223L (Part 1):

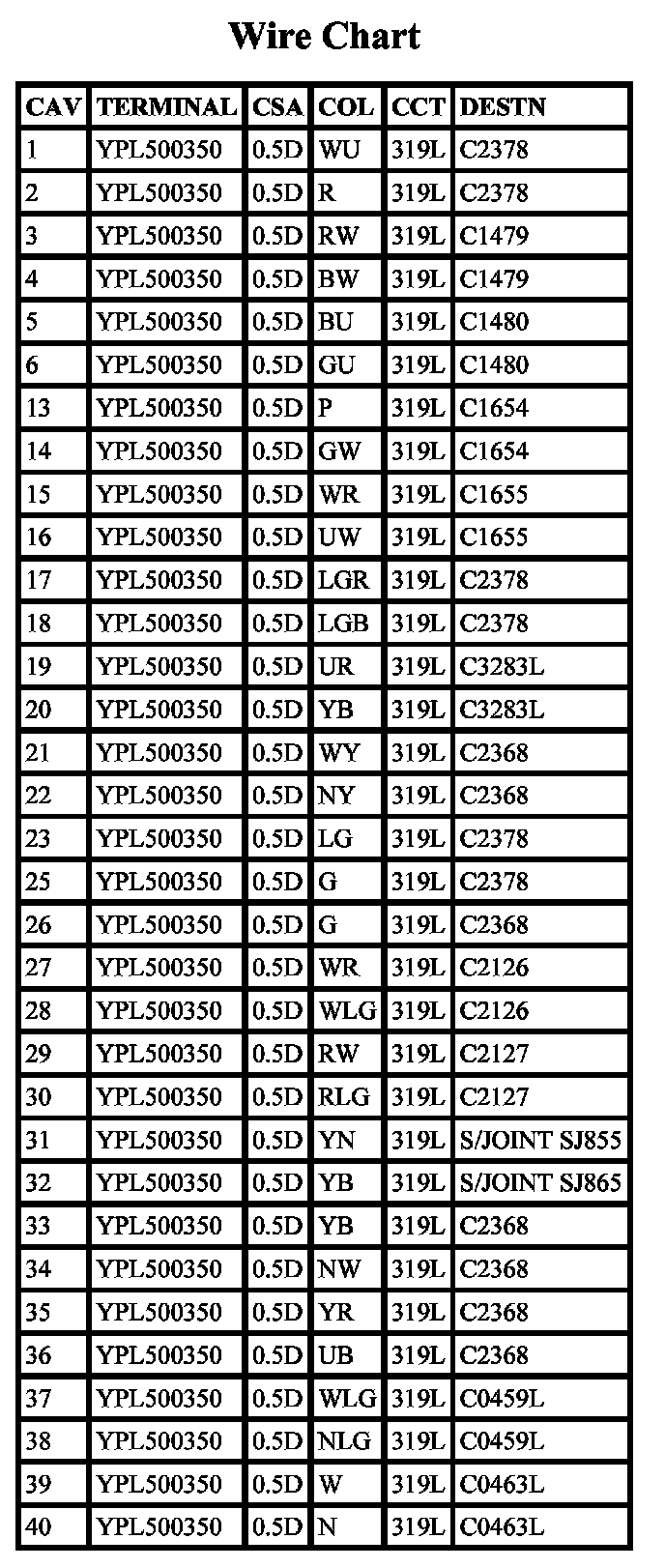

C3223L (Part 2):

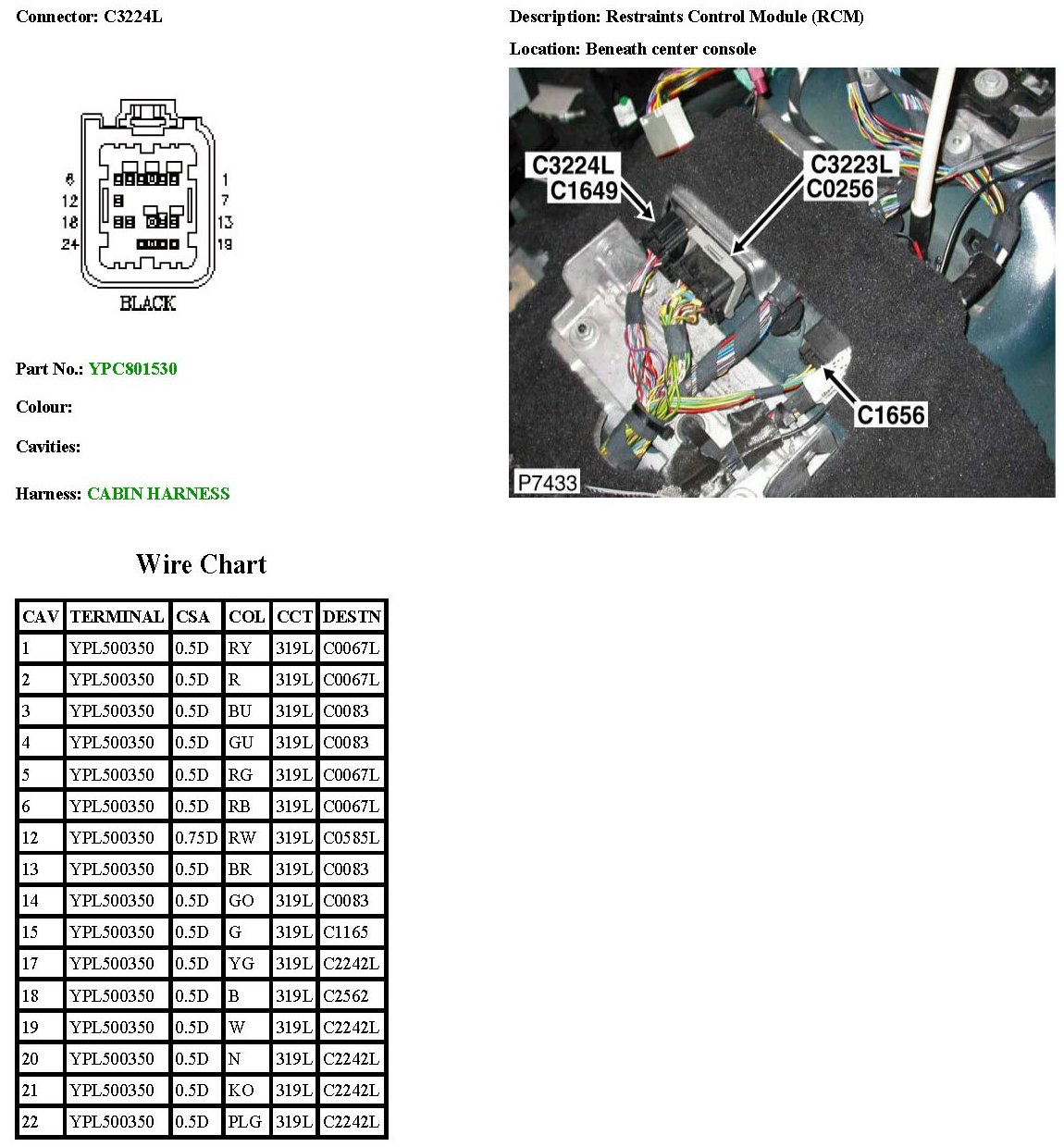

C3224L:
