Home >> Land Rover >> 2006 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> LH Rear Seat Heater Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

LH Rear Seat Heater Module

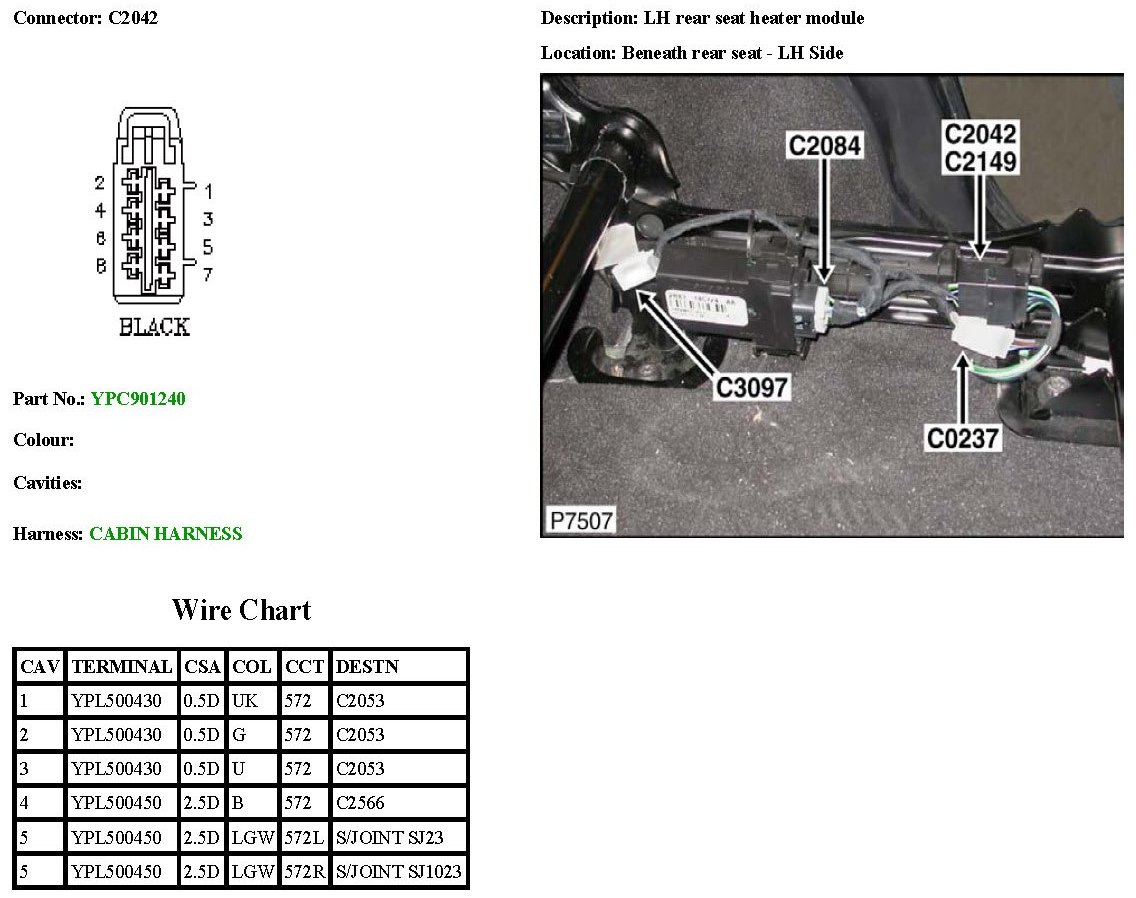

C2042:

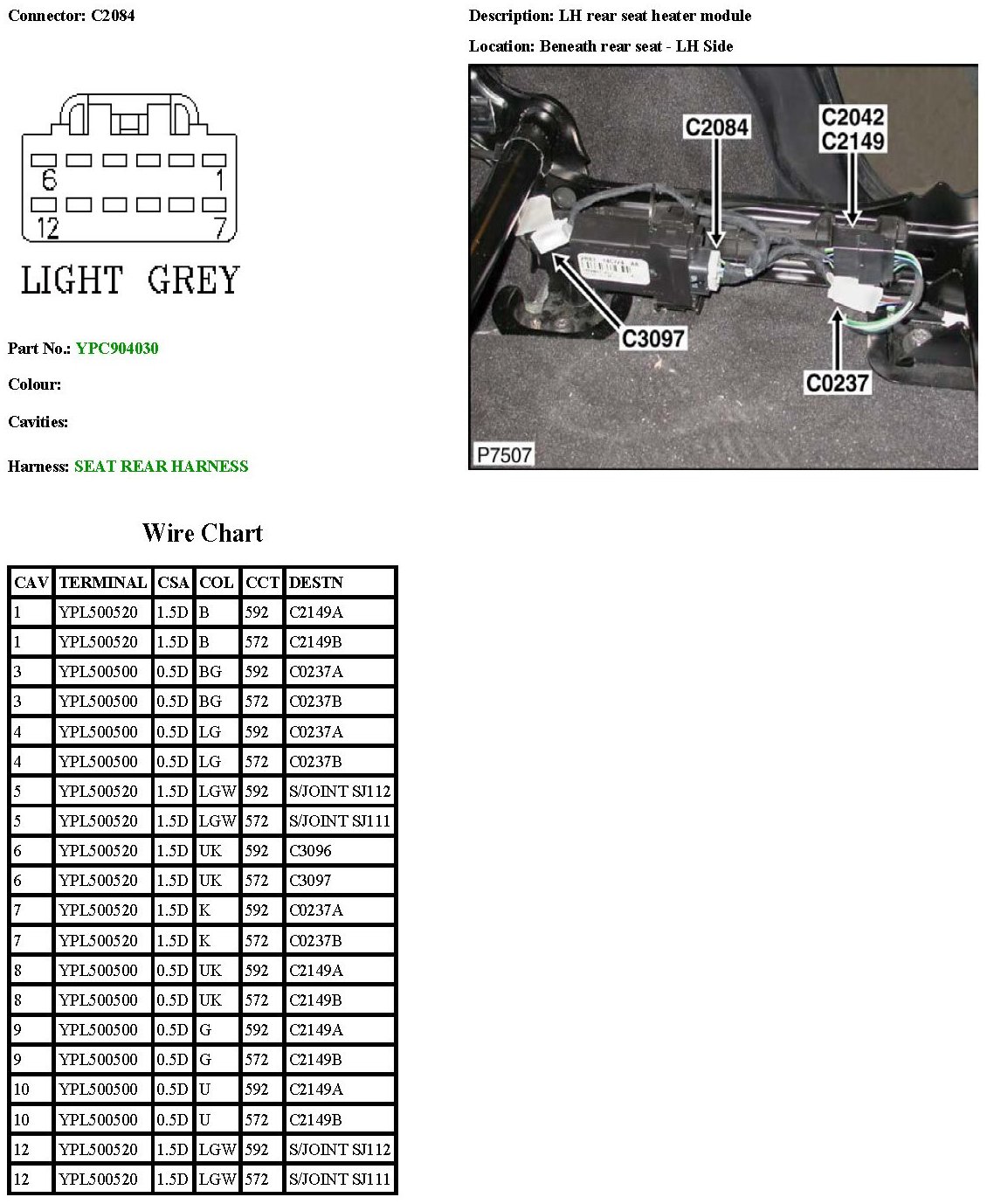

C2084:
