Electronic Engine Controls - Input Control Diagram

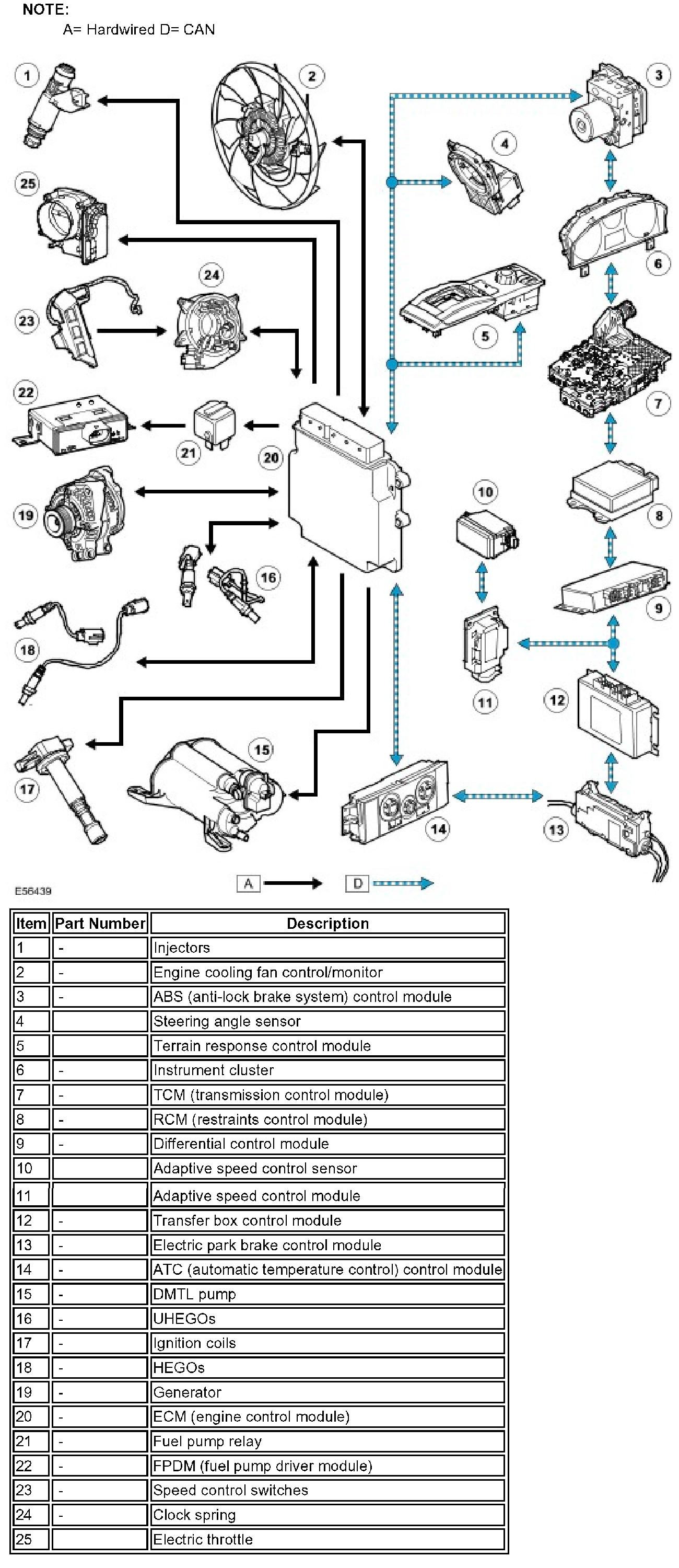

Electronic Engine Controls - Input Control Diagram (Sheet 1 of 2):
Electronic Engine Controls - Control Diagram (Sheet 2 of 2):
