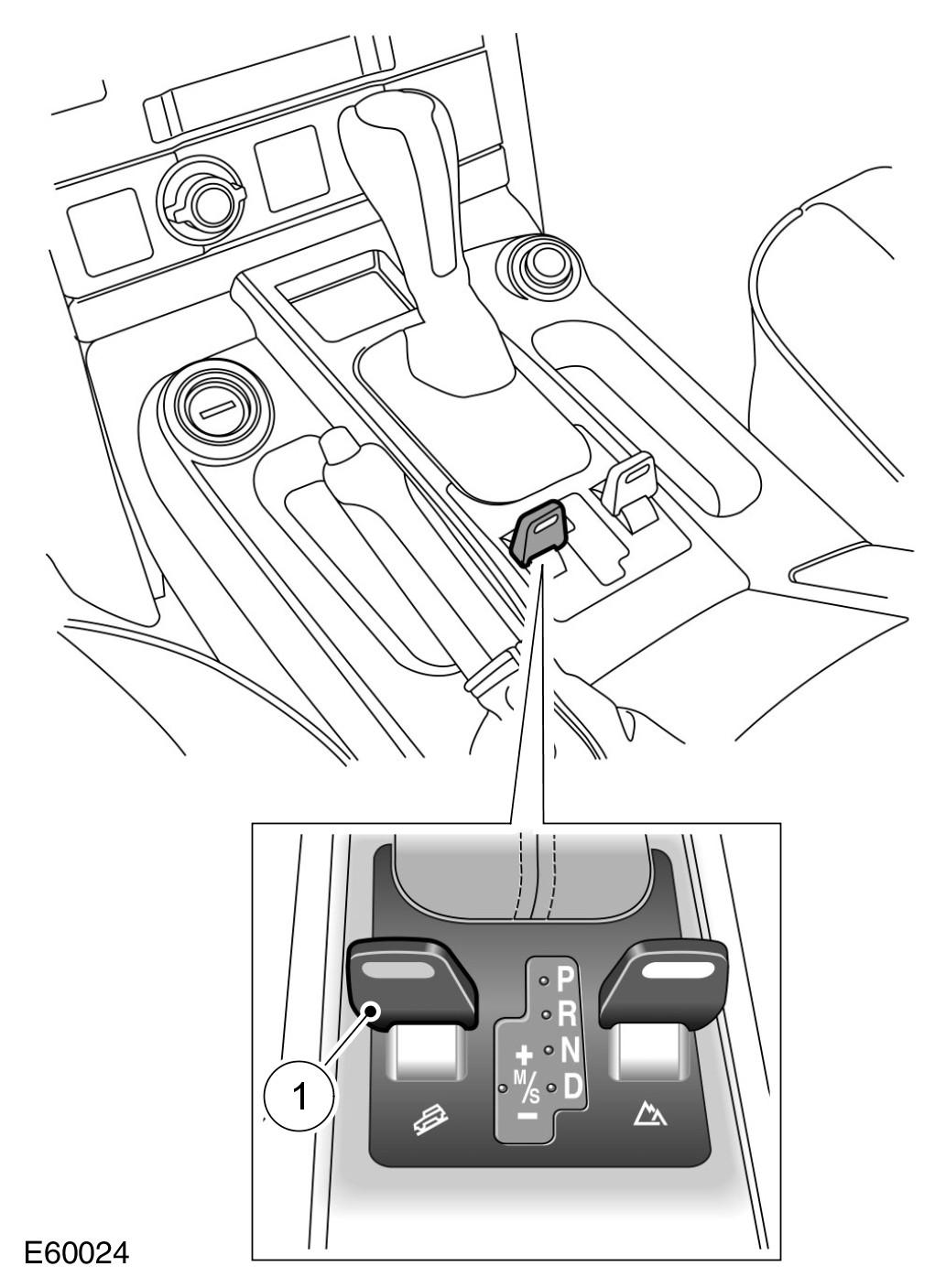

Range Change Selection Switch
| Item Number | Description |
|---|---|
| 1 | Range change selection switch |
The range change selection switch is located behind the main transmission selection lever, in the center console. The switch is a 2-position sprung device. The driver pulls the lever backwards to select a range change, the transfer box will then change to the other available range. The same direction is used for both high and low range.
The switch comprises a housing, which provides the location for a sliding contact. When the switch is moved to the range change position, it completes a momentary connection to 12V with the micro-switch located at the end of the range change selection switch.
The transfer box control module receives this momentary signal and attempts a range change. The switch will return to its normal position when released.
