Four-Wheel Drive (4WD) Control Module: Removal

  1. Disconnect the battery ground cable.

    For additional information, refer to: Specification information.

  2. Remove the battery.

    For additional information, refer to: Battery information.

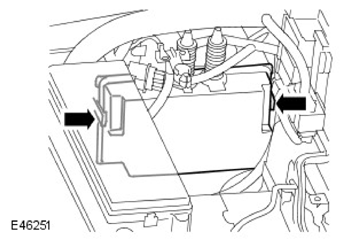

  3. Remove the four wheel drive control module cover.
    • Depress the 2 clips.
    • Release the cover.
    G08766164

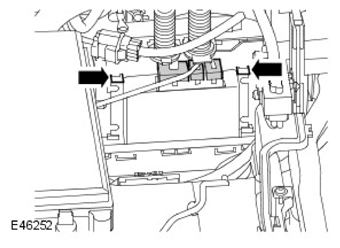

  4. Release and remove the four wheel drive control module.
    • Depress the 2 clips.
    • Disconnect the 3 electrical connectors.
    G08766165
