Home
>>
Land Rover
>>
2007
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump Control Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

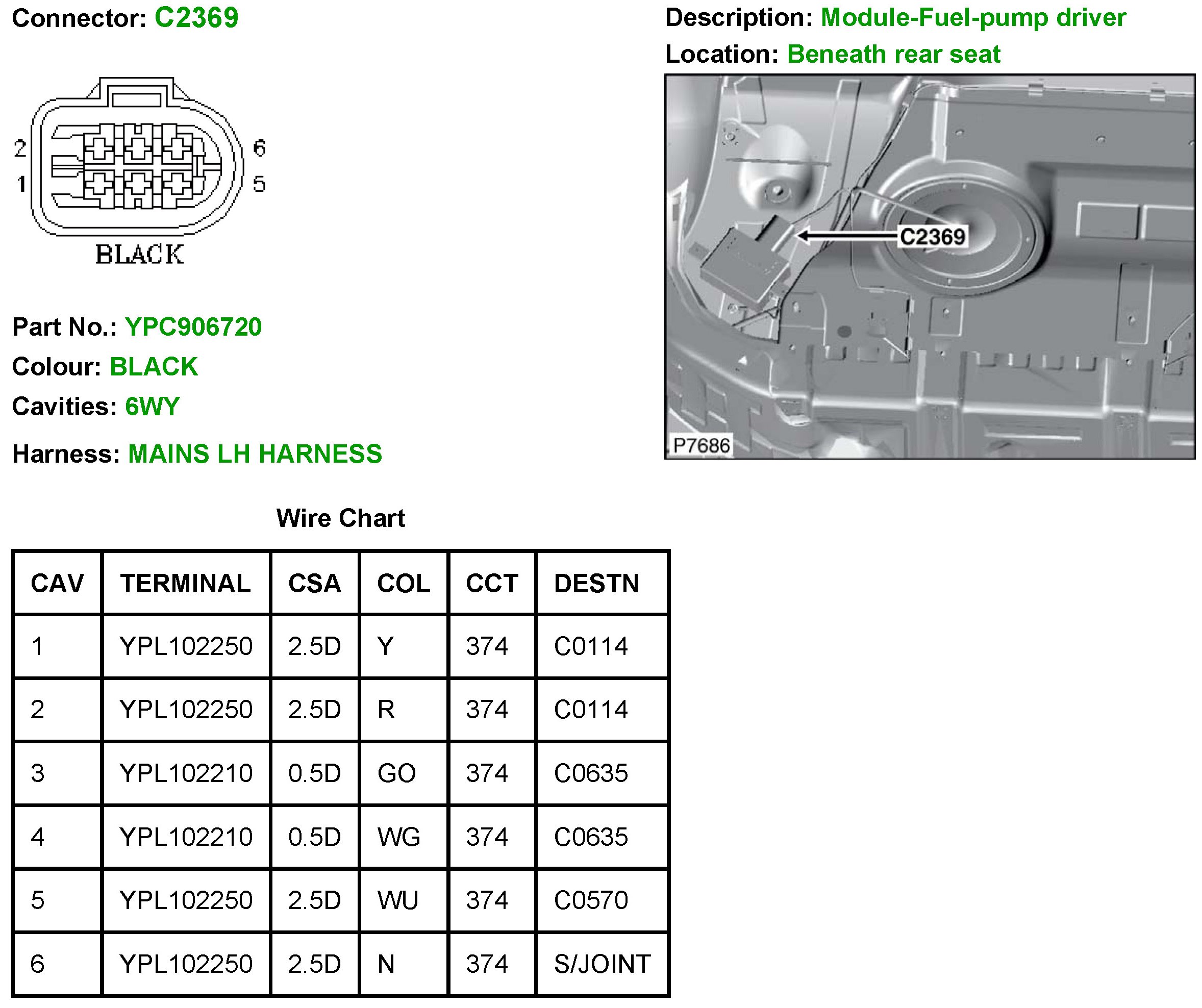

Fuel Pump Control Unit
C2369:
