Exhaust System

Exhaust System

NOTE: X = Service repair cut point

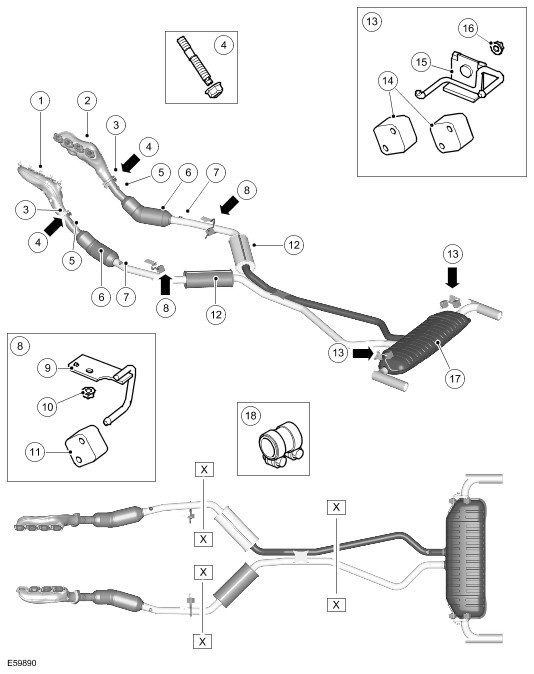

4.2L V8 SUPERCHARGED EXHAUST SYSTEM COMPONENT LAYOUT (PART 1):




4.2L V8 SUPERCHARGED EXHAUST SYSTEM COMPONENT LAYOUT (PART 2):
