Trailer Lighting Module: Service and Repair

Trailer Module

Removal
1. Disconnect the battery ground cable.
^ If the trailer module is to be replaced, use the approved Land Rover diagnostic equipment and follow the on-screen instructions prior to battery disconnection.
2. Remove the access panel from the loadspace trim panel RH.

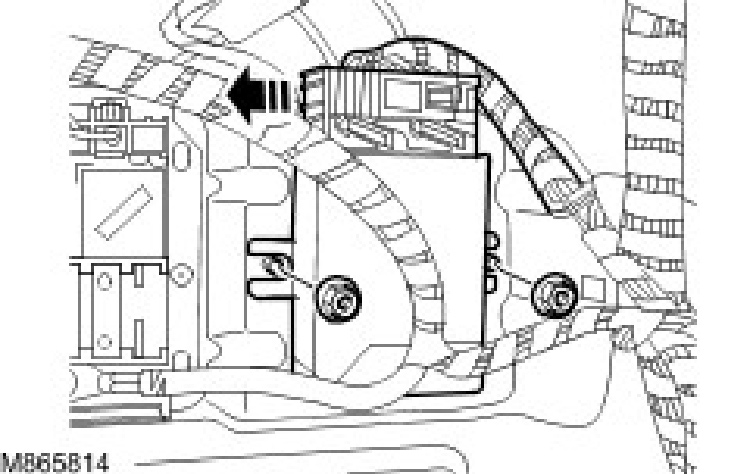

3. Release the trailer module.
^ Remove the 2 nuts.





4. Remove the trailer module.
^ Disconnect the electrical connector.

Installation
1. Install the trailer module.
^ Connect the electrical connector.
2. Secure the trailer module.
^ Install the nuts.
3. Install the access panel to the loadspace trim panel RH.
4. Connect the battery ground cable.
