Solar Sensor: Service and Repair

Sunload Sensor

Service Repair No - 82.20.92

Removal

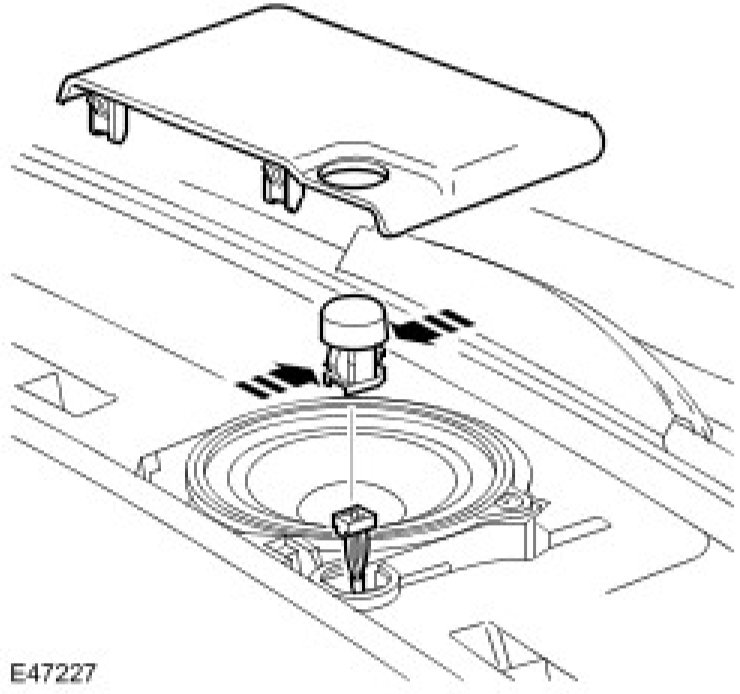

1. Remove the instrument panel upper section speaker grille.
^ Release the 4 clips.
2. Remove the sunload sensor.
^ Release the 2 clips.
^ Disconnect the electrical connector.





Installation
1. To install, reverse the removal procedure.
