Radiator Cooling Fan Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

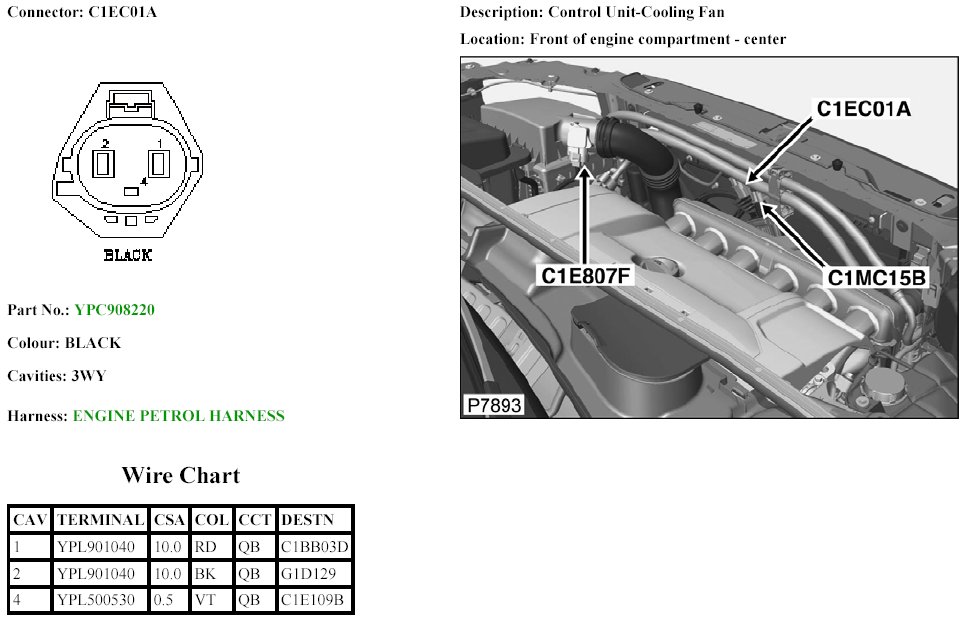

Radiator Cooling Fan Control Module
C1EC01A:
