High Line

Information and Entertainment System - High Line

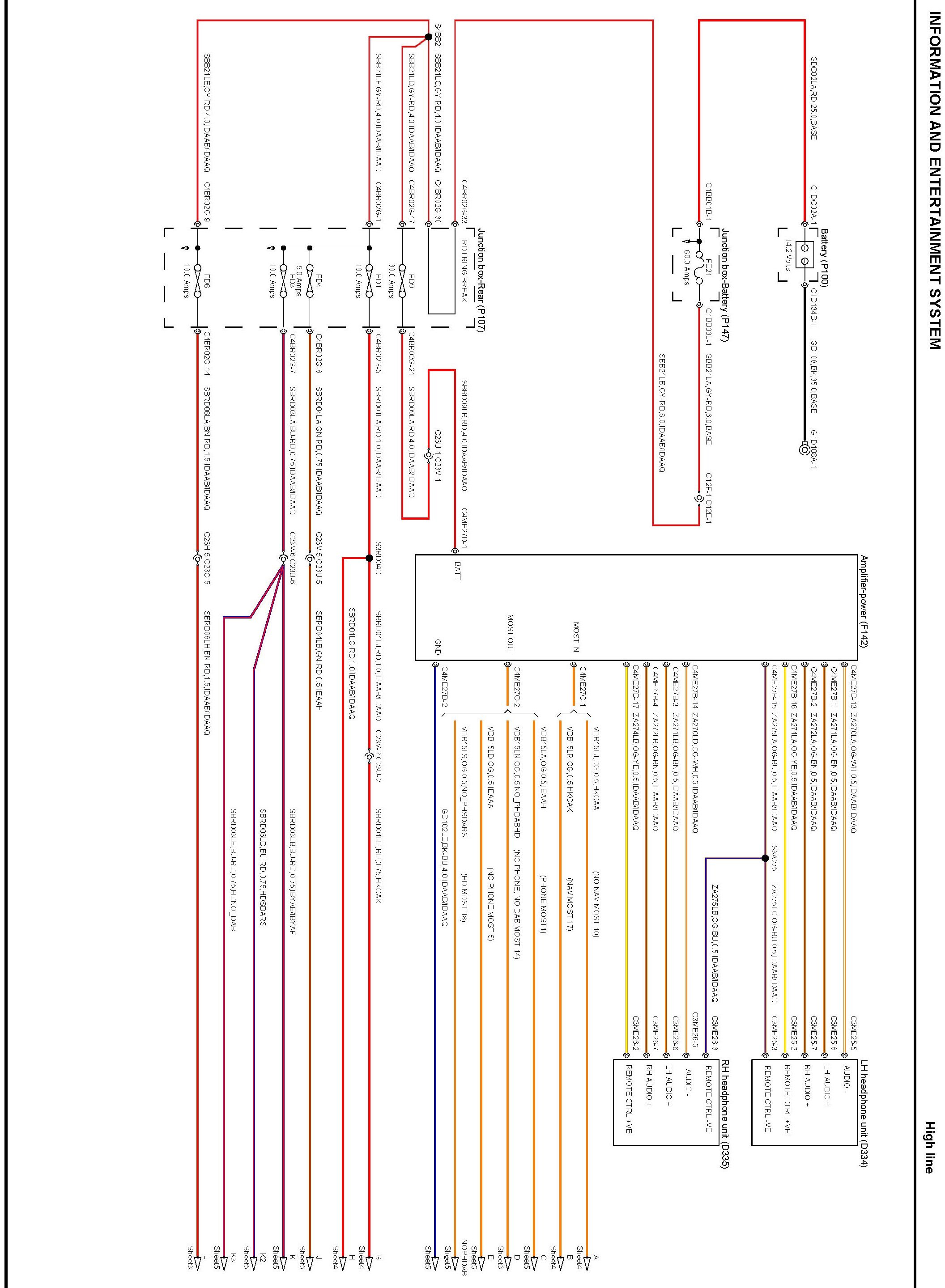

Information And Entertainment System - High Line (Sheet 1):

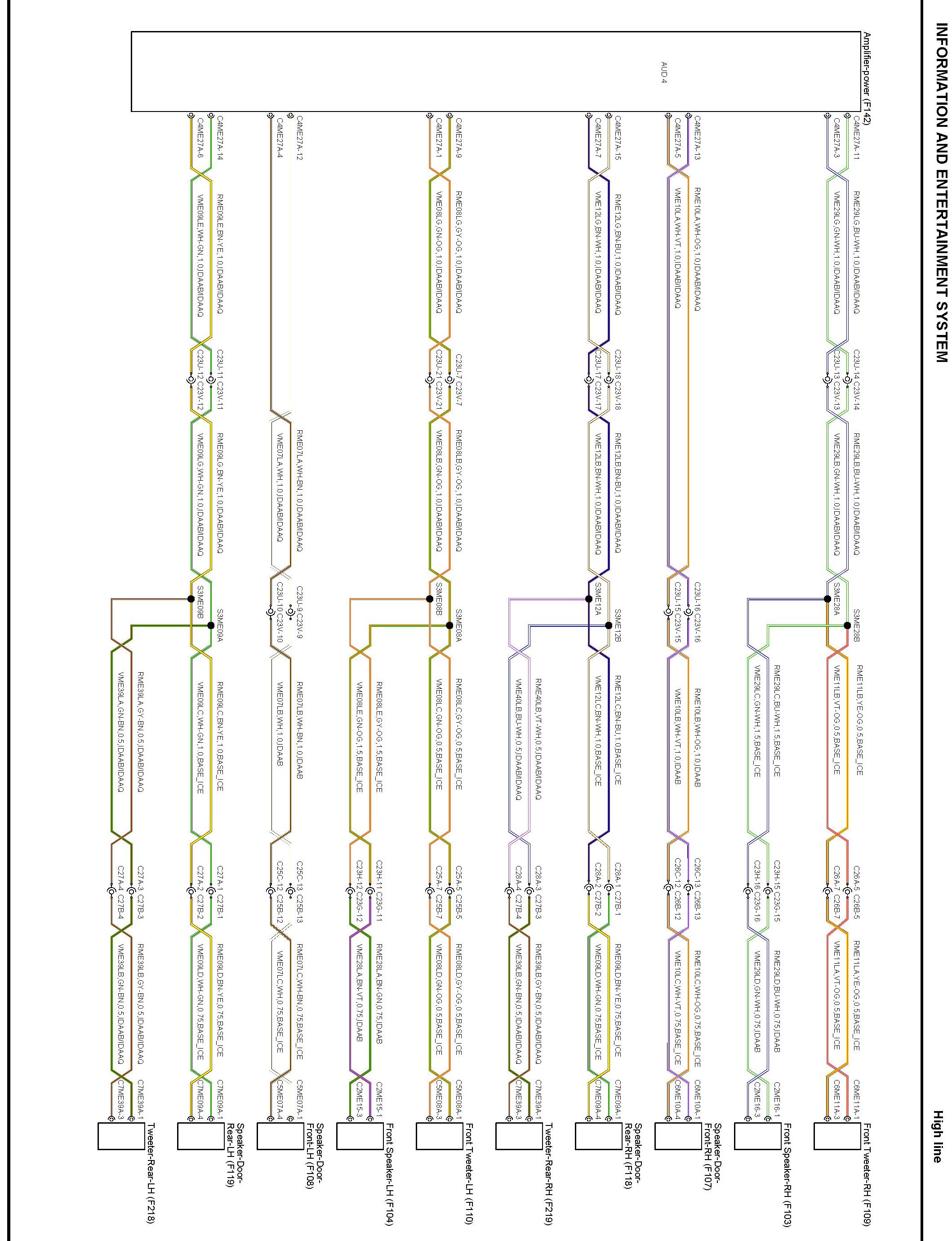

Information And Entertainment System - High Line (Sheet 2):

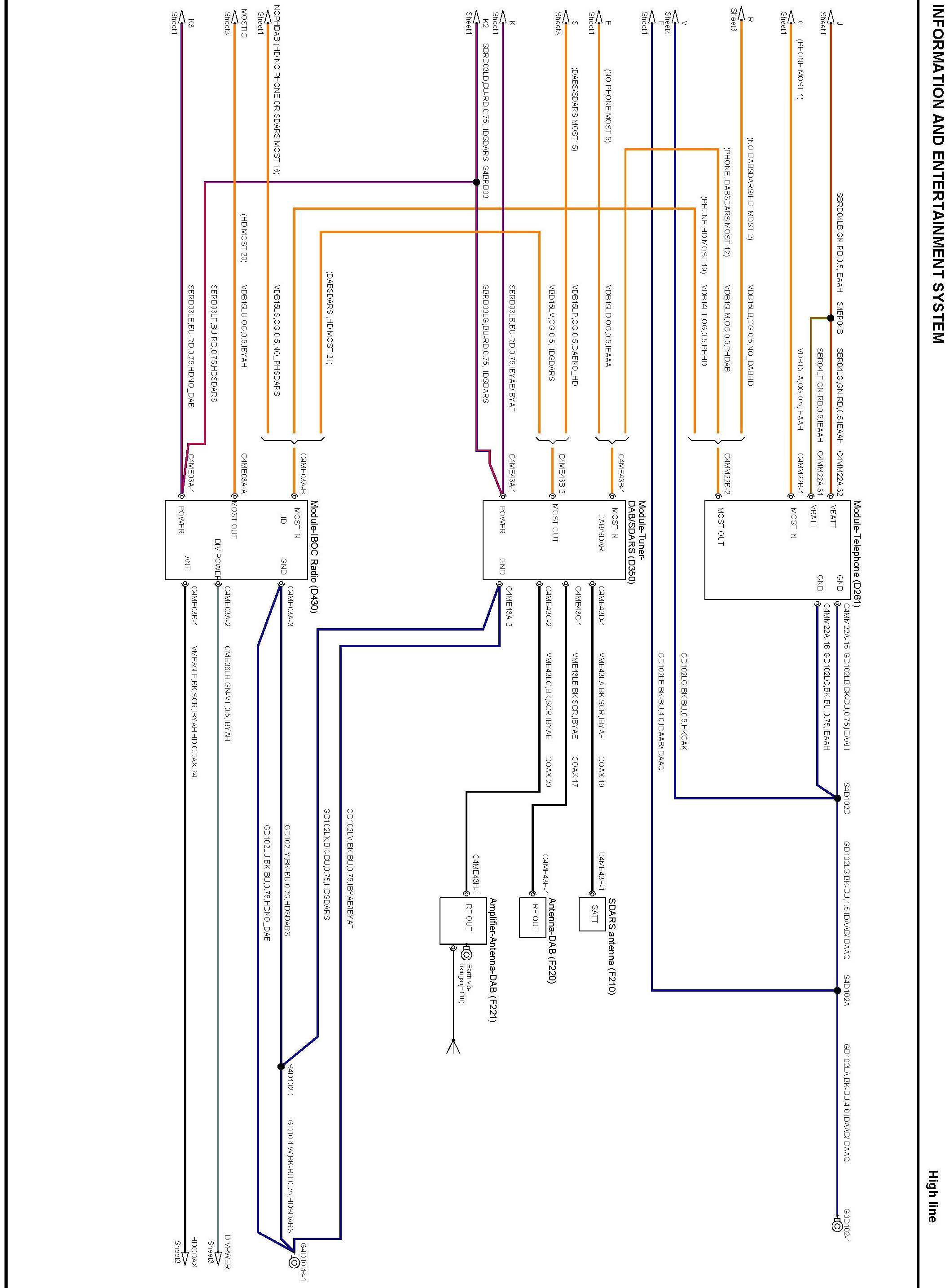

Information And Entertainment System - High Line (Sheet 3):

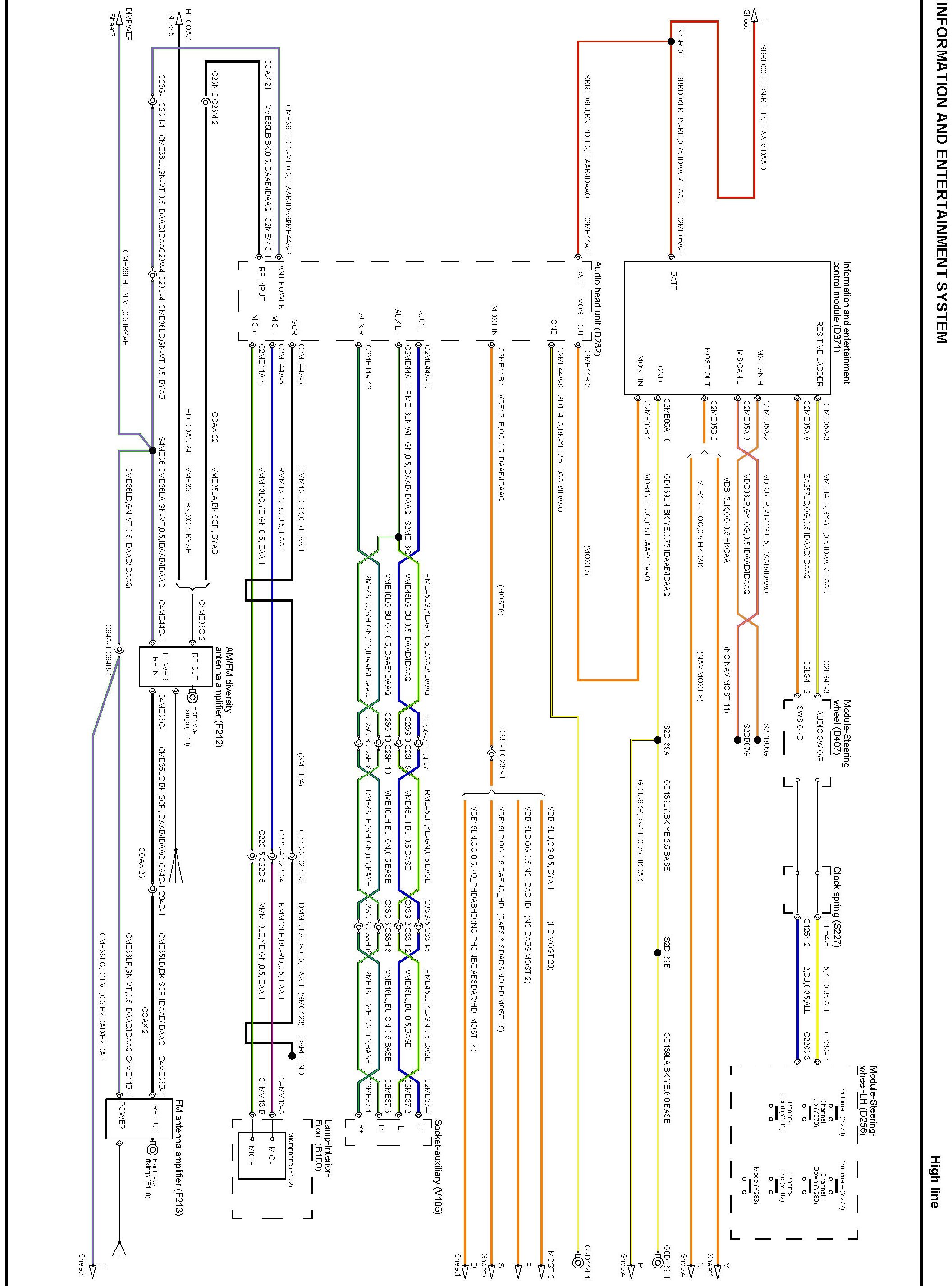

Information And Entertainment System - High Line (Sheet 4):

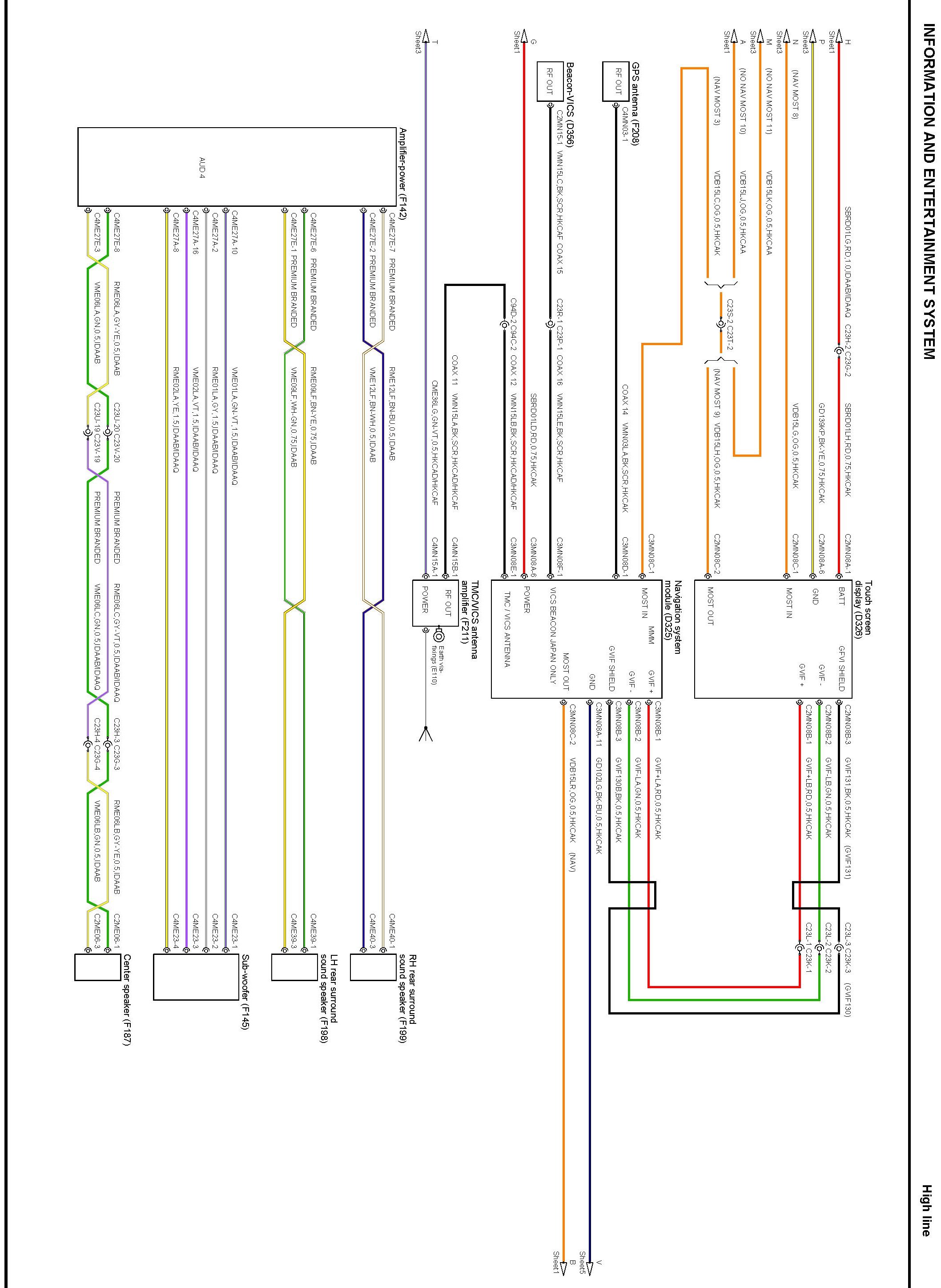

Information And Entertainment System - High Line (Sheet 5):

Locations: The location views for connectors and components depicted within these diagrams can bk found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors. Locations

Connector Views: The connector pin out views for connectors depicted within these diagrams can bk found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
