Trailer Lighting Module: Service and Repair

Trailer Module

Removal

NOTE: The trailer module is fitted with a replaceable fuse.

1. Remove the LH rear quarter trim panel.

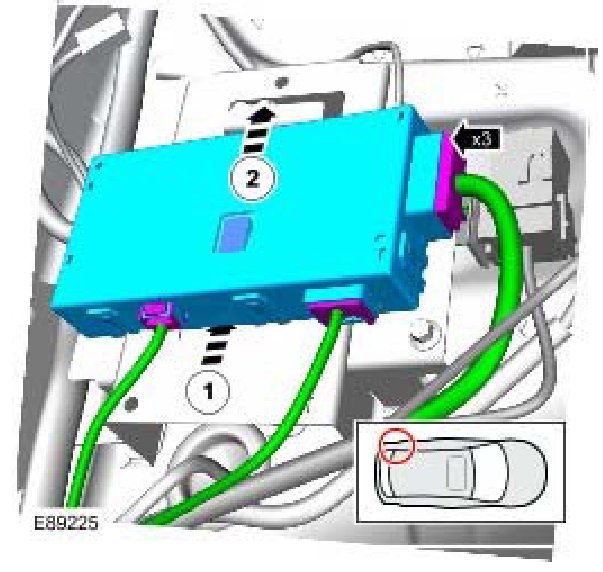

2. Remove the trailer module.





NOTE: Do not disassemble further if the component is removed for access only.

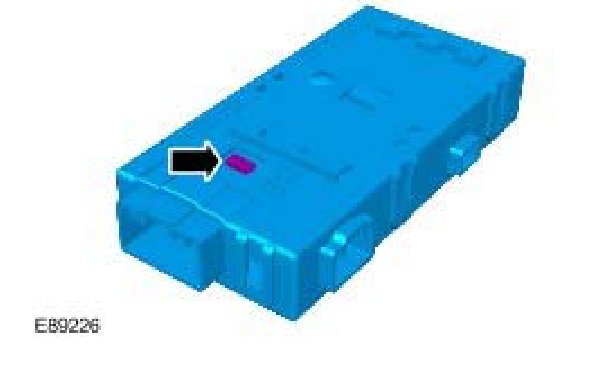

3. Remove the fuse.





Installation
1. To install, reverse the removal procedure.
2. Using the Land Rover approved diagnostic system, calibrate a new module.
