Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor

Service Repair No - 18.30.24

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the engine cover.

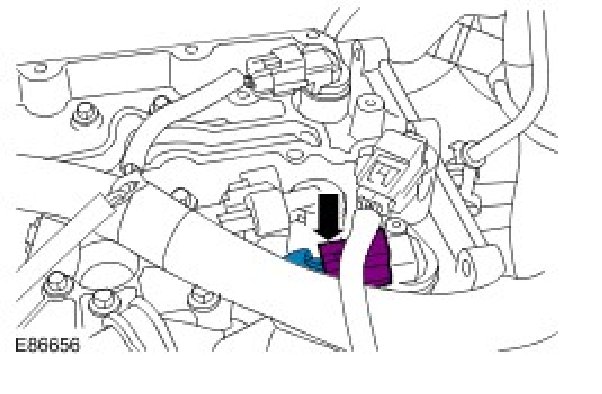

CAUTION:

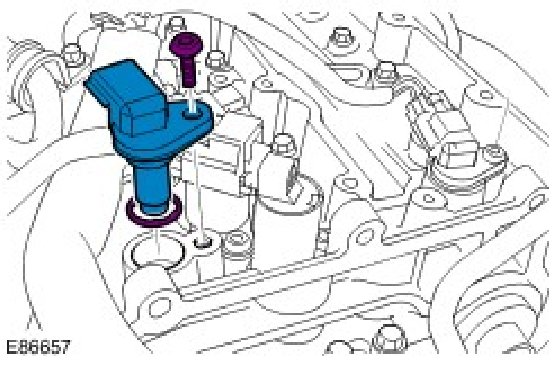

^ Note the fitted position of the special washer.
^ Discard the seal.

3. Torque: 10 Nm





Installation

CAUTION:
^ Make sure that the mating faces are clean and free of corrosion and foreign material.
^ A new O-ring seal is to be installed.

1. To install, reverse the removal procedure.
