Manifold Pressure/Vacuum Sensor: Service and Repair

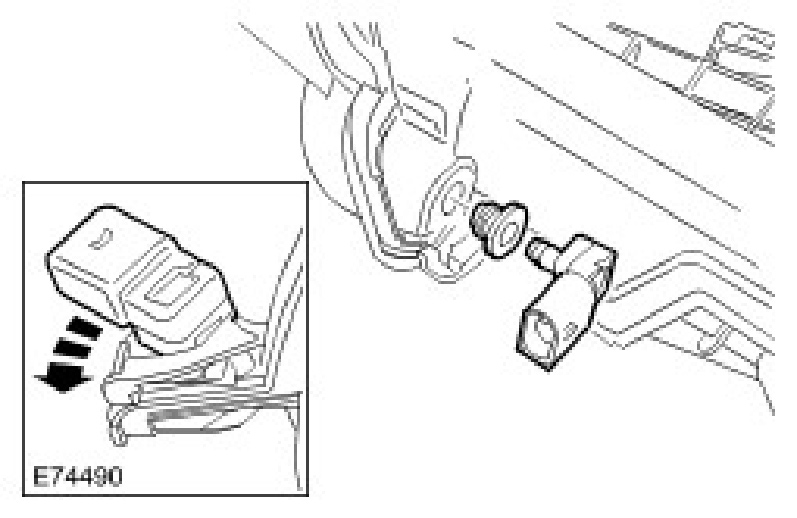

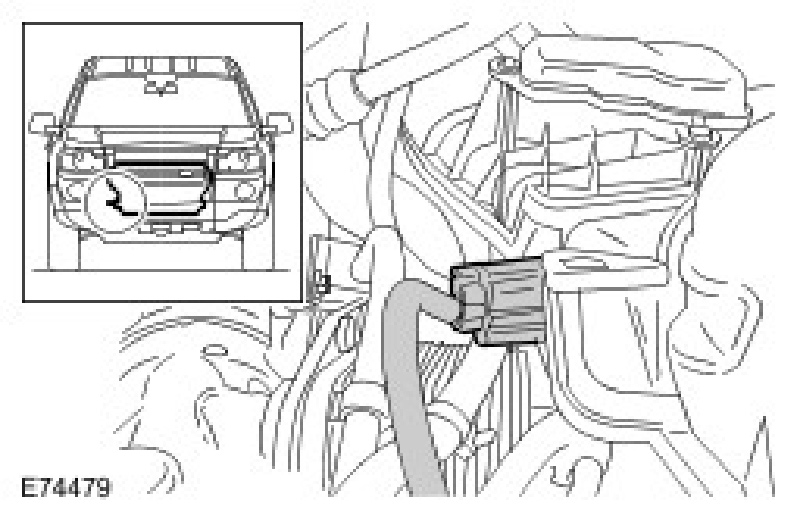

Manifold Absolute Pressure (MAP) Sensor

Service Repair No - 18.30.56

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.

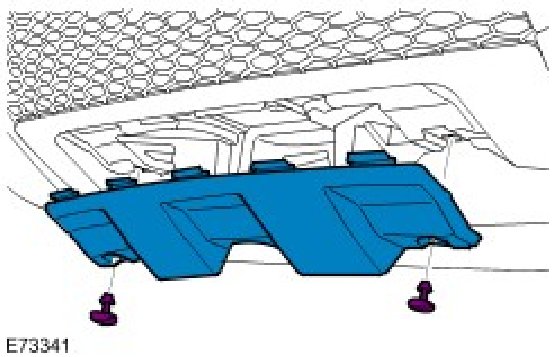

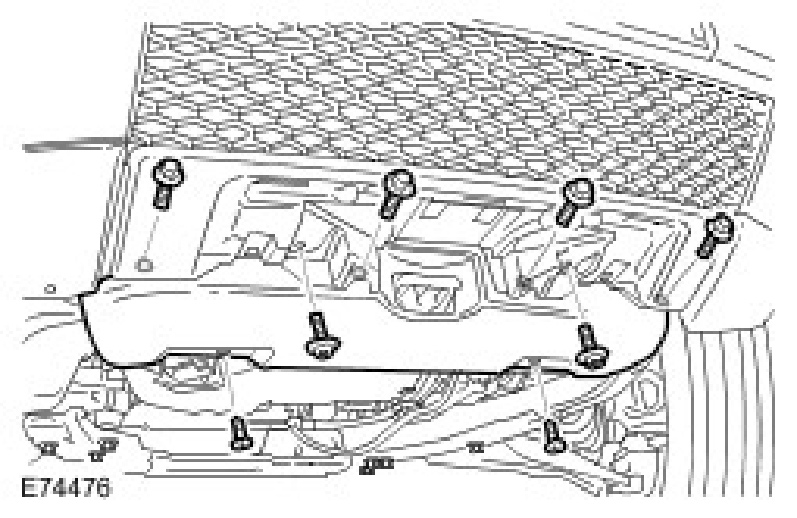

2. Remove the engine undershield.
