Catalyst Monitor Sensor



Catalyst Monitor Sensor

Service Repair No - 19.22.71

Special Service Tools

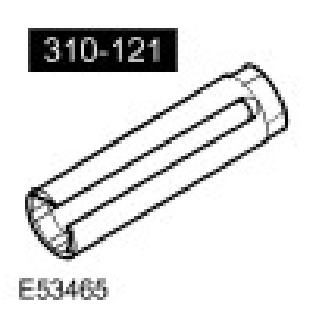

310-121
Wrench, H02S

Removal

WARNING: Make sure to support the vehicle with axle stands.

1. Raise the vehicle on a lift.

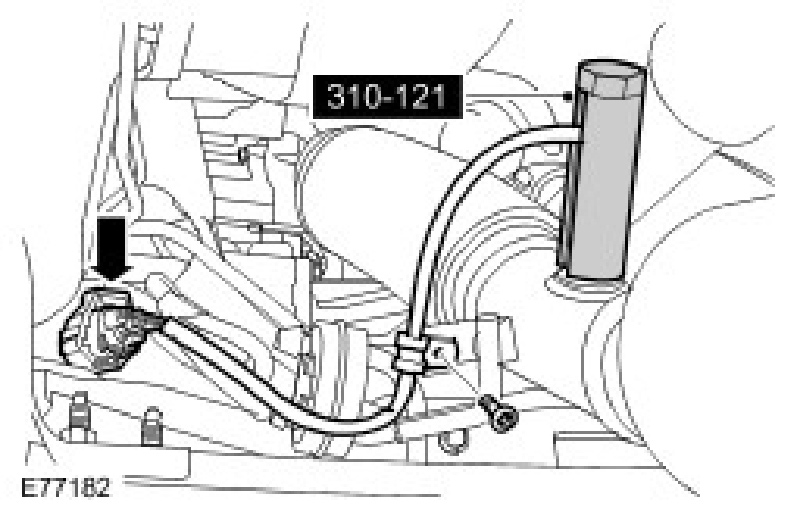

2. Torque: 6 Nm
3. Torque: 45 Nm





Installation
1. To install, reverse the removal procedure.
