Ignition Coil: Service and Repair

Ignition Coil-On-Plug

Removal

CAUTION: After switching of the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.

1. Disconnect the battery ground cable.
2. Remove the engine cover.

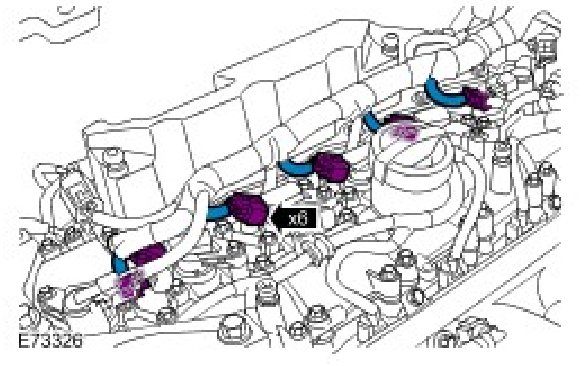

3. Disconnect the 6 ignition coil-on-plugs.









Installation

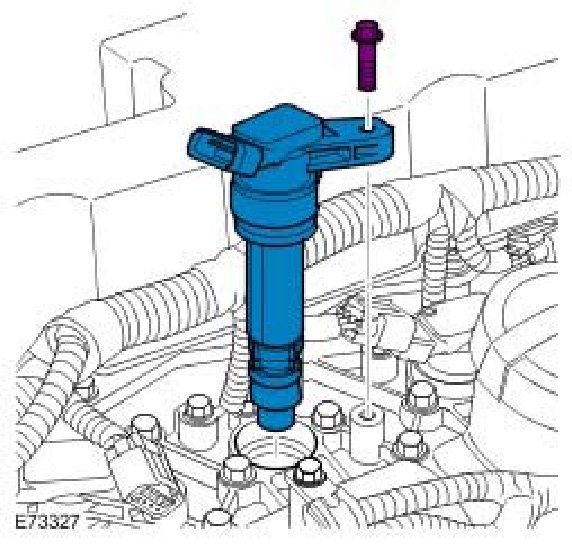

1. Install the ignition coil-on-plugs.

Torque: 10 Nm

2. Connect the ignition coil-on-plug electrical connections.
3. Install the engine cover.
4. Connect the battery ground cable.
