Starting System: Service and Repair

Ignition Switch

Service Repair No - 86.65.02

Removal

1. Make the SRS system safe.
2. Remove the driver lower air bag module.

3. NOTE: RHD illustration shown, LHD is similar.

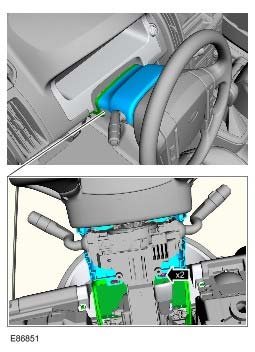

Remove the keyless start control module trim cover.





4. Remove the steering column lower cowl.





5. Adjust the steering column to its lowest position.

6.





7. NOTE: Take extra care when releasing the clips.

Remove the instrument cluster surround.





8. Remove the ignition switch.





Installation

1. To install, reverse the removal procedure.
