Start Control Unit

Start Control Unit

Removal

NOTE:
^ This step must be performed if replacing the start control unit.
^ Make sure that all keys (remote control handsets) are present when performing this procedure.

1. Using the Land Rover approved diagnostic equipment, interrogate the start control unit and upload the stored data.
2. Make the SRS system safe.
3. Remove the driver lower air bag.

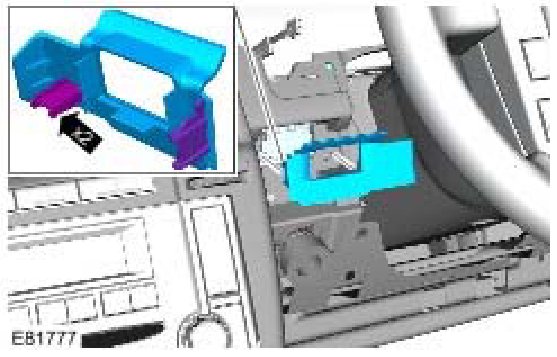

4. Remove the starter control unit trim cover.

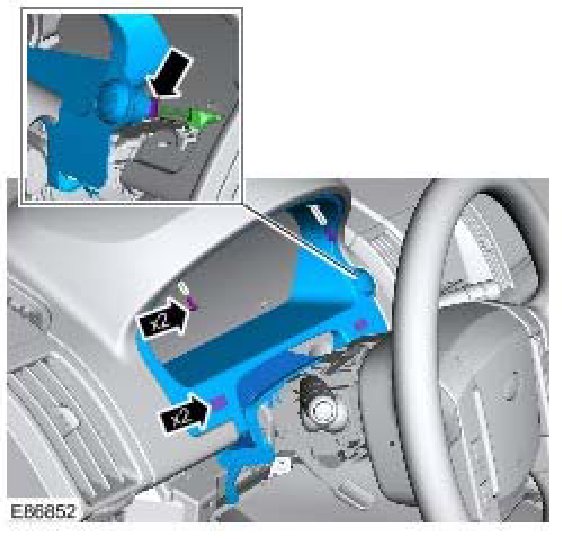

5. Remove the instrument cluster surround.

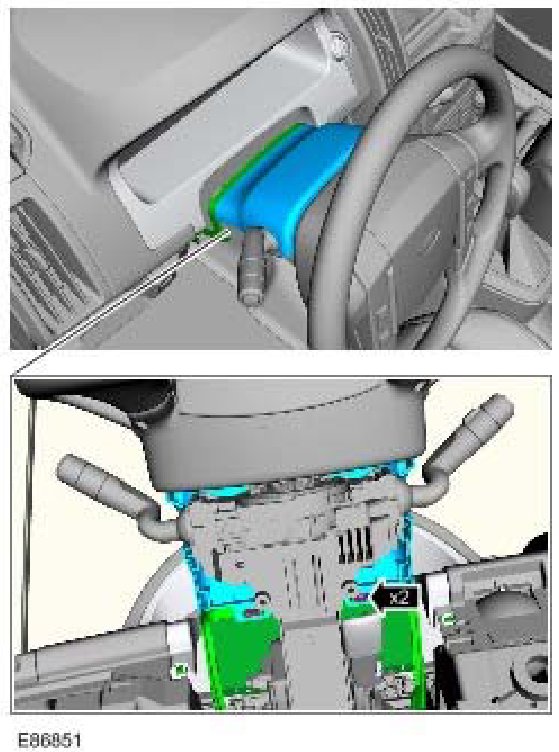

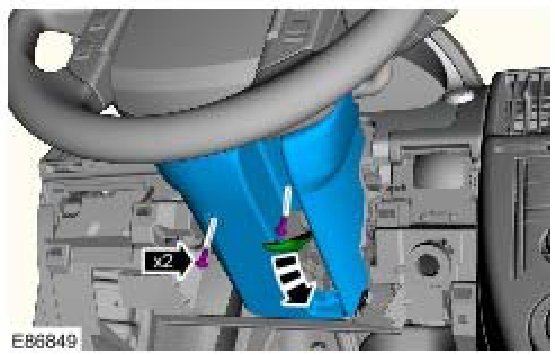

6. Remove the steering column lower cowl.

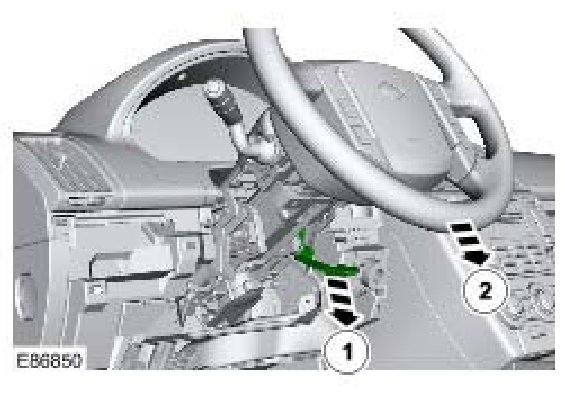

7. Adjust the steering column to its lowest position.









9. Remove the start control unit.

Installation
1. To install, reverse the removal procedure.
2. Using the Land Rover approved diagnostic equipment, download the previously stored information to a new start control unit.
