Engine Control Module (ECM): Removal

NOTE: If the ECM is to be replaced, the T4 must be connected prior to battery disconnection and on-screen instructions must be followed.
  1. Disconnect the battery ground cable.

    For additional information, refer to: Specification information.

  2. Remove the four-wheel drive control module.

    For additional information, refer to: Four-Wheel Drive (4WD) Control Module information.

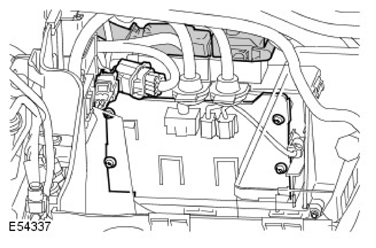

  3. Remove the ECM cover.
    • Disconnect 2 electrical connectors for access.
    • Disconnect the 2 ECM electrical connectors.
    • Remove the 4 Torx screws.
    G08765858
  4. Remove the ECM.
    • Remove the ECM top cover.
    G08765859
