General Module: Service and Repair

Generic Electronic Module (GEM)

Removal
1. Move the passenger seat cushion fully rearwards.

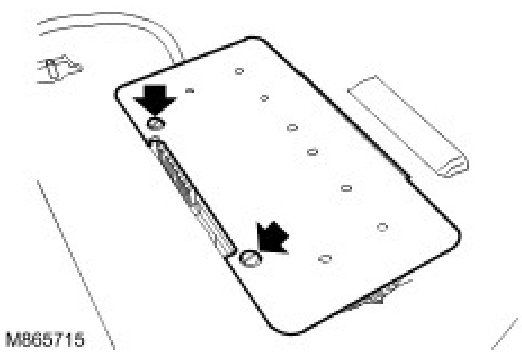

2. Remove the Generic Electronic Module (GEM) access panel.
- Release the 2 clips.







3. Move the passenger seat cushion fully forwards.
4. Disconnect the battery ground cable.
5. Remove the GEM.
- Disconnect the 3 electrical connectors.

Installation
1. Install the GEM.
- Connect the electrical connectors.

2. Connect the battery ground cable.
3. Move the passenger seat cushion fully rearwards.
4. Install the GEM access panel.
- Install the clips.
