Headlamp Control Module: Service and Repair

Adaptive Front Lighting Module

Removal
1. LH side: Remove the cowl side trim panel.

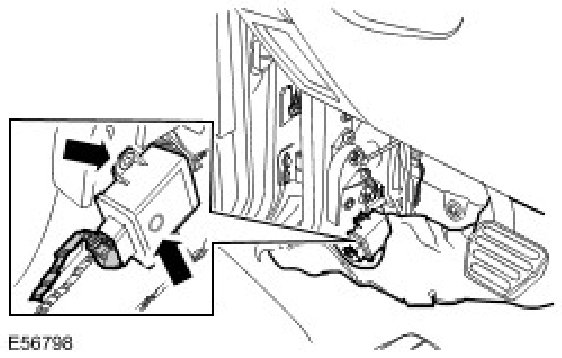

2. Remove the adaptive front lighting module.
- Lift the carpet for access.
- Disconnect the electrical connector.
- Remove the 2 clips.







Installation
1. Install the adaptive front lighting module.
- Secure with the clips.
- Connect the electrical connector.
- Position the carpet.

2. LH side: Install the cowl side trim panel.
