Trailer Lighting Module: Service and Repair

Trailer Module

Removal
1. Disconnect the battery ground cable.
2. Remove the access panel from the loadspace trim panel RH.

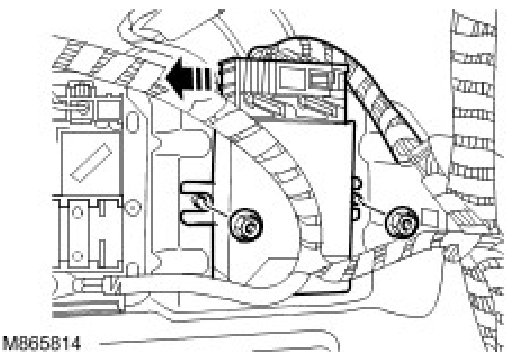

3. Release the trailer module.
- Remove the 2 nuts.







4. Remove the trailer module.
- Disconnect the electrical connector.

Installation
1. Install the trailer module.
- Connect the electrical connector.

2. Secure the trailer module.
- Install the nuts.

3. Install the access panel to the loadspace trim panel RH.
4. Connect the battery ground cable.
