Front Wheel Speed Sensor: Removal
- Raise and support the vehicle.
- Remove the wheel and tire.

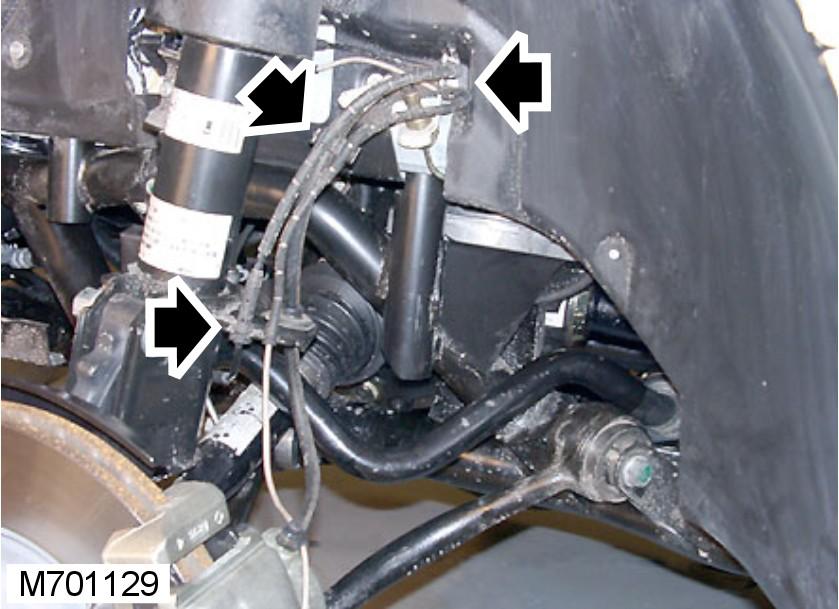

- Disconnect the wheel speed sensor electrical connector.
- Open the electrical connector housing.
- Release the electrical connector from the clip.
- Release the front wheel speed sensor wiring harness.

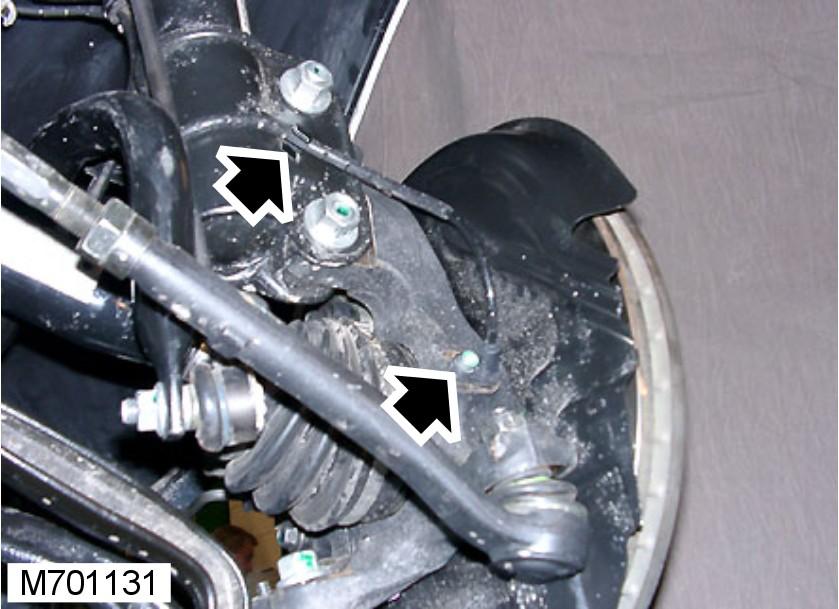

- Remove the front wheel speed sensor.
- Release the clip.
- Remove the bolt.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
