Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connector Quick Reference Guide
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

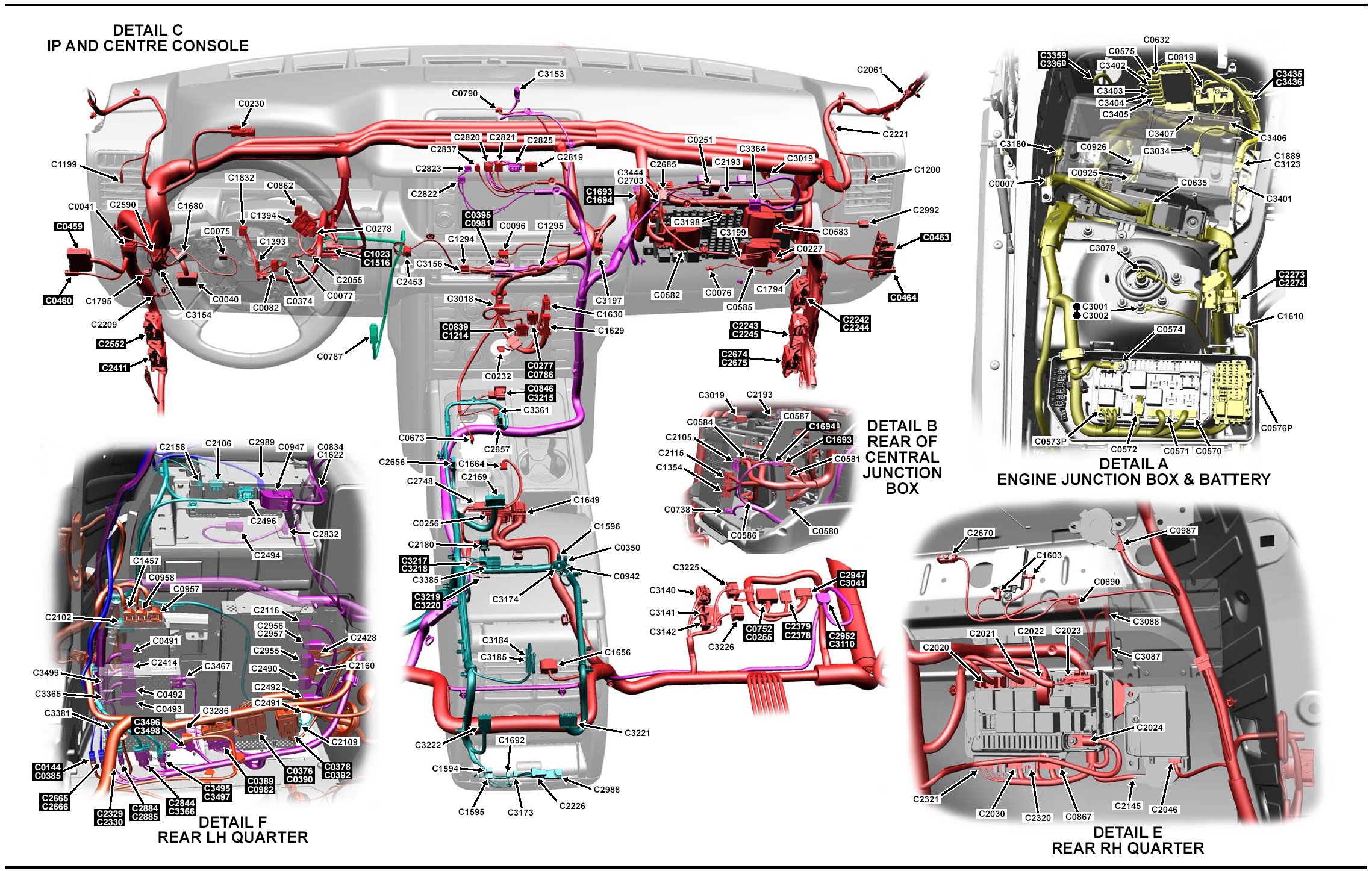

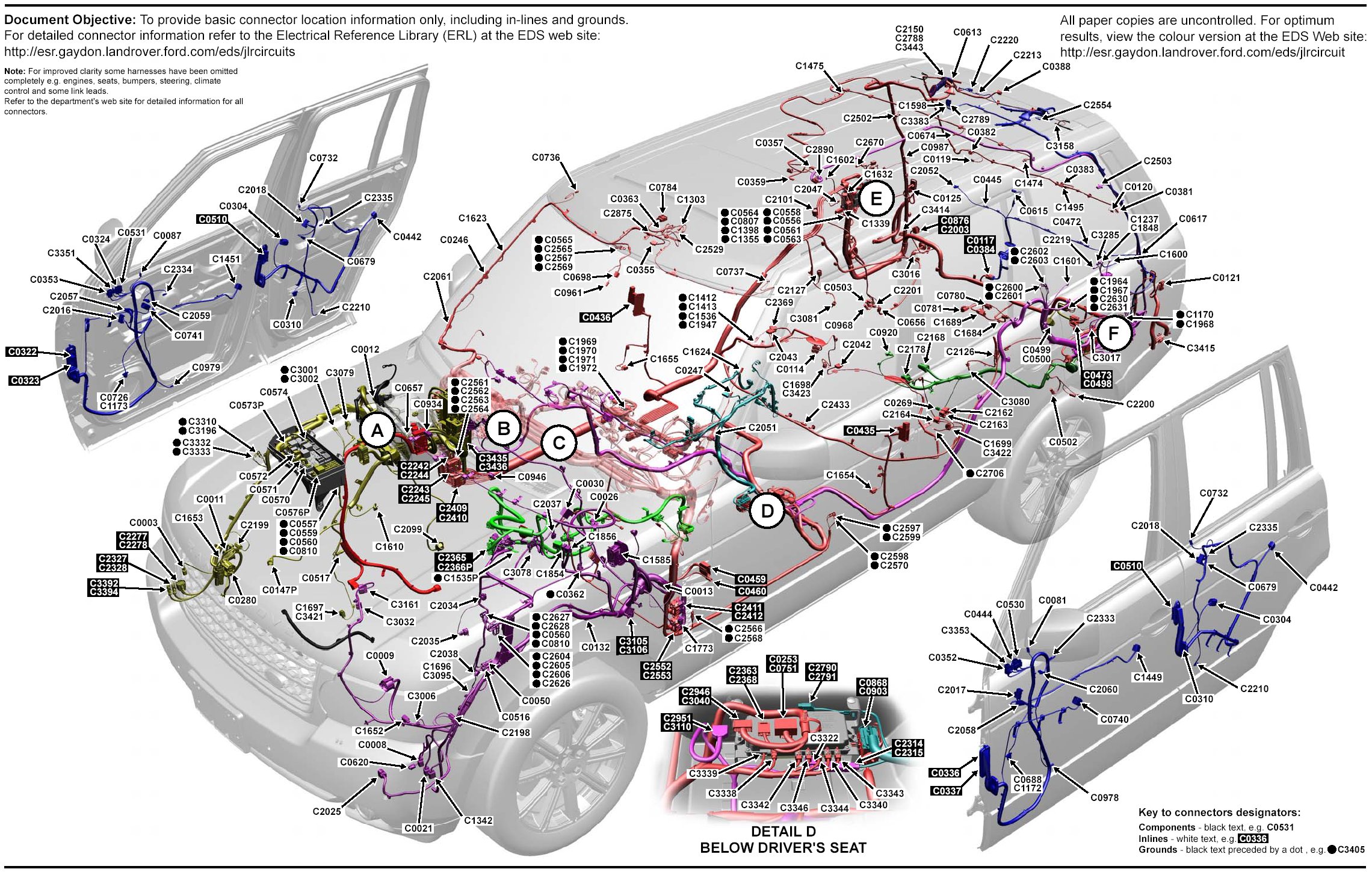

Connector Quick Reference Guide
Connector Quick Reference Guide
