Door Module
>>
C6PL01B Module-Passenger Door
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

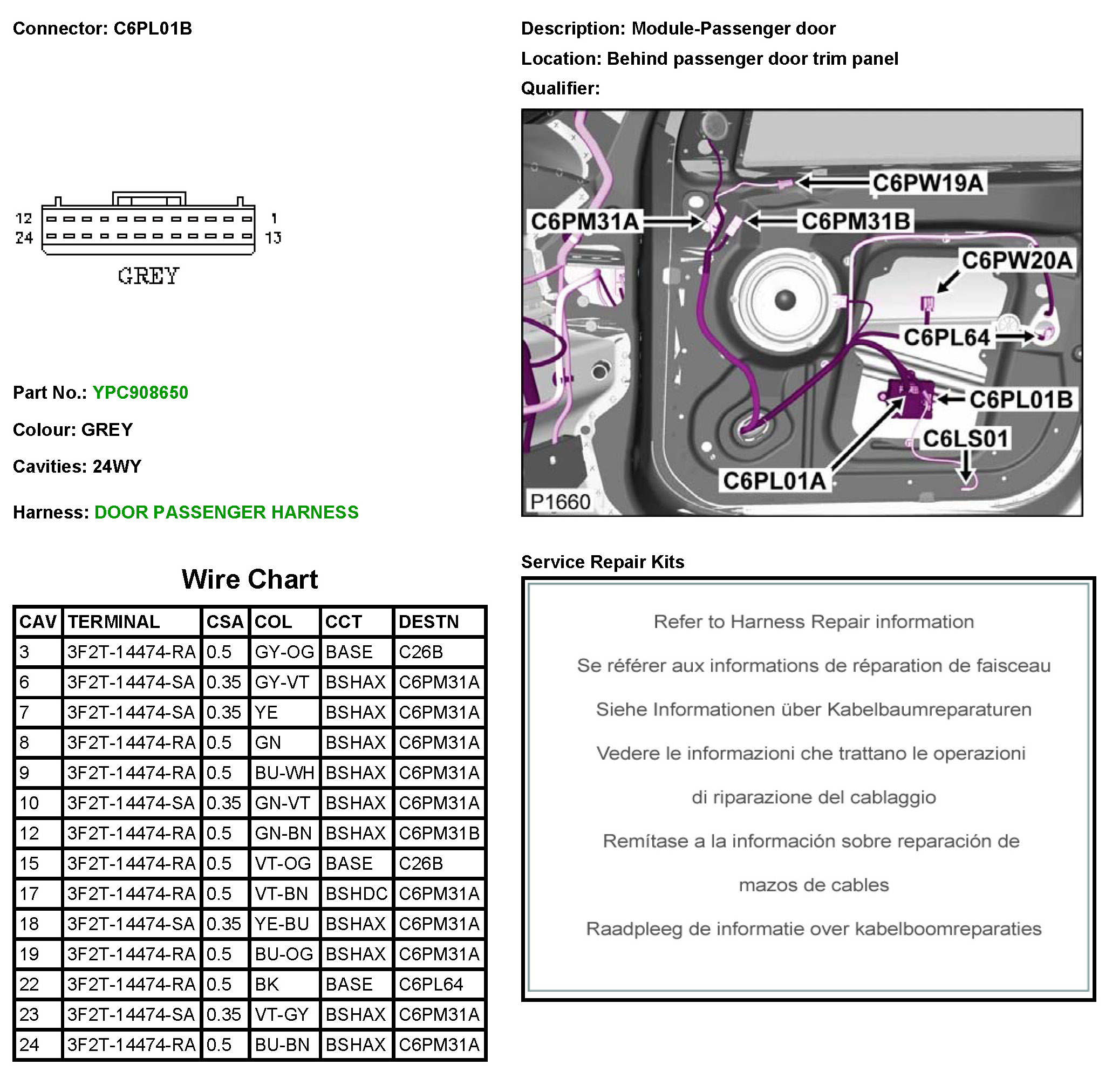

C6PL01B Module-Passenger Door
C6PL01B
