Anti-Lock Control - Traction Control: Notes
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

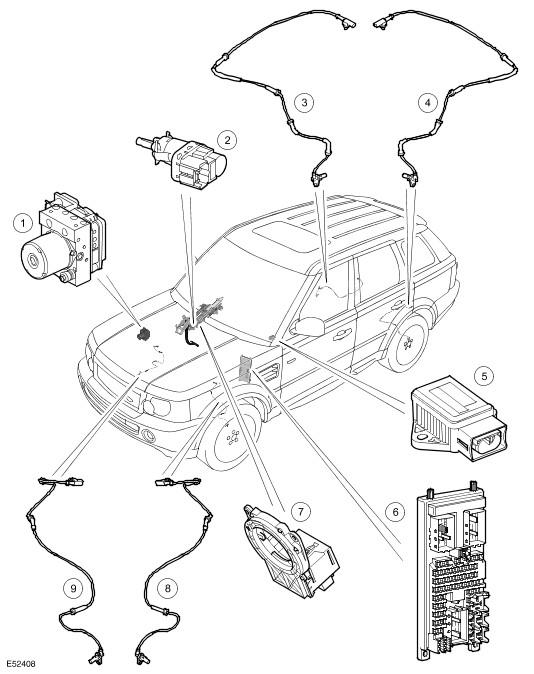

 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Hydraulic Control Unit (HCU) with attached Anti-Lock Brake System (ABS) module |
| 2 |
Stoplamp switch |
| 3 |
Right rear wheel speed sensor |
| 4 |
Left rear wheel speed sensor |
| 5 |
Yaw rate and lateral acceleration sensor |
| 6 |
HDC (Hill Descent Control) relay (non-serviceable, integrated into Central Junction Box (CJB)) |
| 7 |
Steering angle sensor |
| 8 |
Left front wheel speed sensor |
| 9 |
Right front wheel speed sensor |

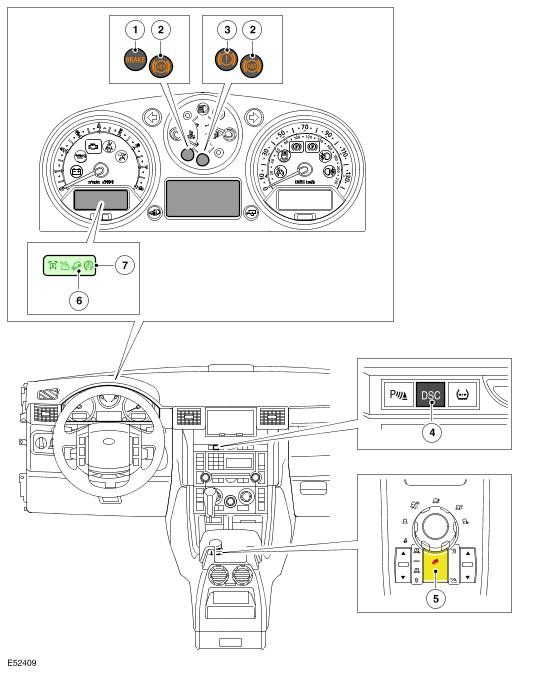

 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Brake warning indicator (NAS (north American specification) only) |
| 2 |
ABS warning indicator |
| 3 |
Brake warning indicator (all except NAS) |
| 4 |
DSC (dynamic stability control) switch |
| 5 |
HDC switch |
| 6 |
HDC information indicator |
| 7 |
DSC warning indicator |
