Integrated Control Panel (ICP)
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

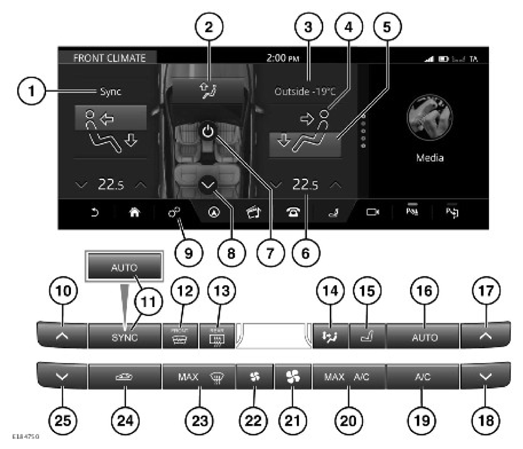

| ITEM | DESCRIPTION |
|---|---|
| 1 | Synchronize driver and front passenger climate zone settings |
| 2 | Windscreen air distribution |
| 3 | Ambient air temperature |
| 4 | Air distribution to the face |
| 5 | Air distribution to the feet |
| 6 | Temperature display |
| 7 | Climate control system on/off |
| 8 | Down arrow or swipe up the screen to view the REAR CLIMATE menu |
| 9 | Climate control settings menu |
| 10 | Increase temperature front left side of vehicle |
| 11 | SYNC: Synchronize on front climate/AUTO: Automatic operation (on vehicles with rear climate) |
| 12 | Heated windshield |
| 13 | Heated rear window |
| 14 | Air distribution menu |
| 15 | Heated/Climate seats menu |
| 16 | AUTO mode |
| 17 | Increase temperature right side of vehicle |
| 18 | Decrease temperature right side of vehicle |
| 19 | A/C: Air conditioning system on/off |
| 20 | MAX A/C: Maximum air conditioning mode on/off |
| 21 | Increase blower speed |
| 22 | Decrease blower speed |
| 23 | Maximum windshield defrost on/off |
| 24 | Recirculation |
| 25 | Increase temperature front right side of vehicle |
The Integrated Control Panel (ICP) is installed in the center of the instrument panel and contains push switches and rotary switches for operation of the climate control system. Each push switch contains an amber status Light Emitting Diode (LED). The ICP converts selections on the climate control switches into HS CAN comfort messages and transmits them to the ATCM.

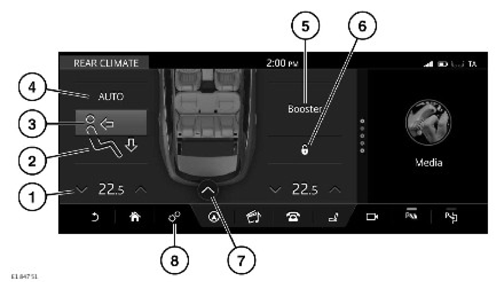

| ITEM | DESCRIPTION |
|---|---|
| 1 | Temperature - increase/decrease |
| 2 | Air distribution to the feet |
| 3 | Air distribution to the face |
| 4 | AUTO: Automatic operation |
| 5 | Auxiliary blower booster on/off |
| 6 | Lock rear panel |
| 7 | Up arrow or swipe down the screen to view the FRONT CLIMATE menu |
| 8 | Climate settings |
