Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

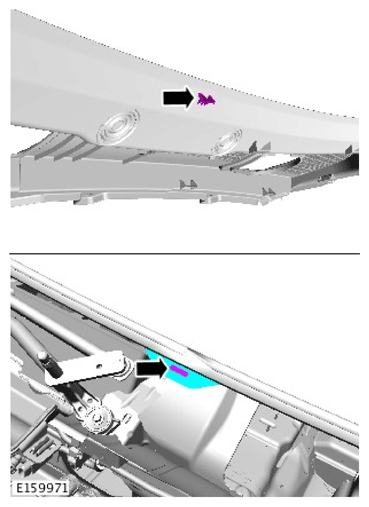

  1. NOTE: Align the locating pins to the position noted on removal.
    G11592053
  2. To install, reverse the removal procedure.
