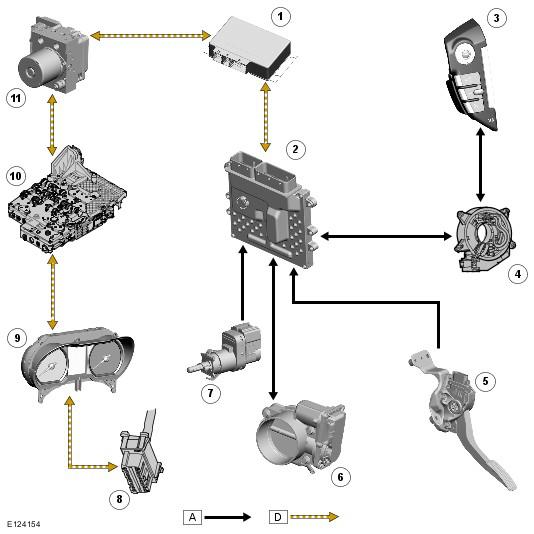

Control Diagram
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed CAN Bus
| Item Number | Description |
|---|---|
| 1 | Transfer box control module |
| 2 | Engine Control Module (ECM) |
| 3 | Left Hand (LH) steering wheel speed control switches |
| 4 | Clock spring |
| 5 | Accelerator Pedal Position (APP) sensor |
| 6 | Electric throttle |
| 7 | Brake switch |
| 8 | Diagnostic socket |
| 9 | Instrument cluster |
| 10 | Transmission Control Module (TCM) |
| 11 | Anti-lock Brake System (ABS) module |
