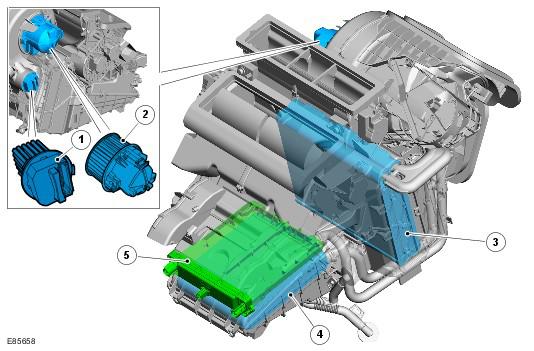

Heater Assembly: Notes
| Item Number | Description |
|---|---|
| 1 | Blower motor control module |
| 2 | Blower motor |
| 3 | Air Conditioning (A/C) evaporator |
| 4 | Heater core |
| 5 | Electric booster heater |
The heater assembly controls the temperature of the air supplied to the air distribution ducts, as directed by the ATC module. The heater assembly is mounted on the vehicle center line and comprises the following components:
- Blower motor
- Heater core
- Cabin air filter. See AIR DISTRIBUTION AND FILTERING .
- A/C evaporator. See AIR CONDITIONING .
- Air intake flap and stepper motor. See CONTROL COMPONENTS .
- Air distribution flaps and stepper motors. See CONTROL COMPONENTS .
- Temperature blend flaps and stepper motors. See CONTROL COMPONENTS .
- Electric booster heater (if fitted). Refer to the appropriate Electric Booster Heater information.
