Headlamp Control Module: Service and Repair

Adaptive Front Lighting Module

Removal
1 Passenger side: Remove the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel
2 Remove the CJB. For additional information, refer to Central Junction Box (CJB) Central Junction Box (CJB)

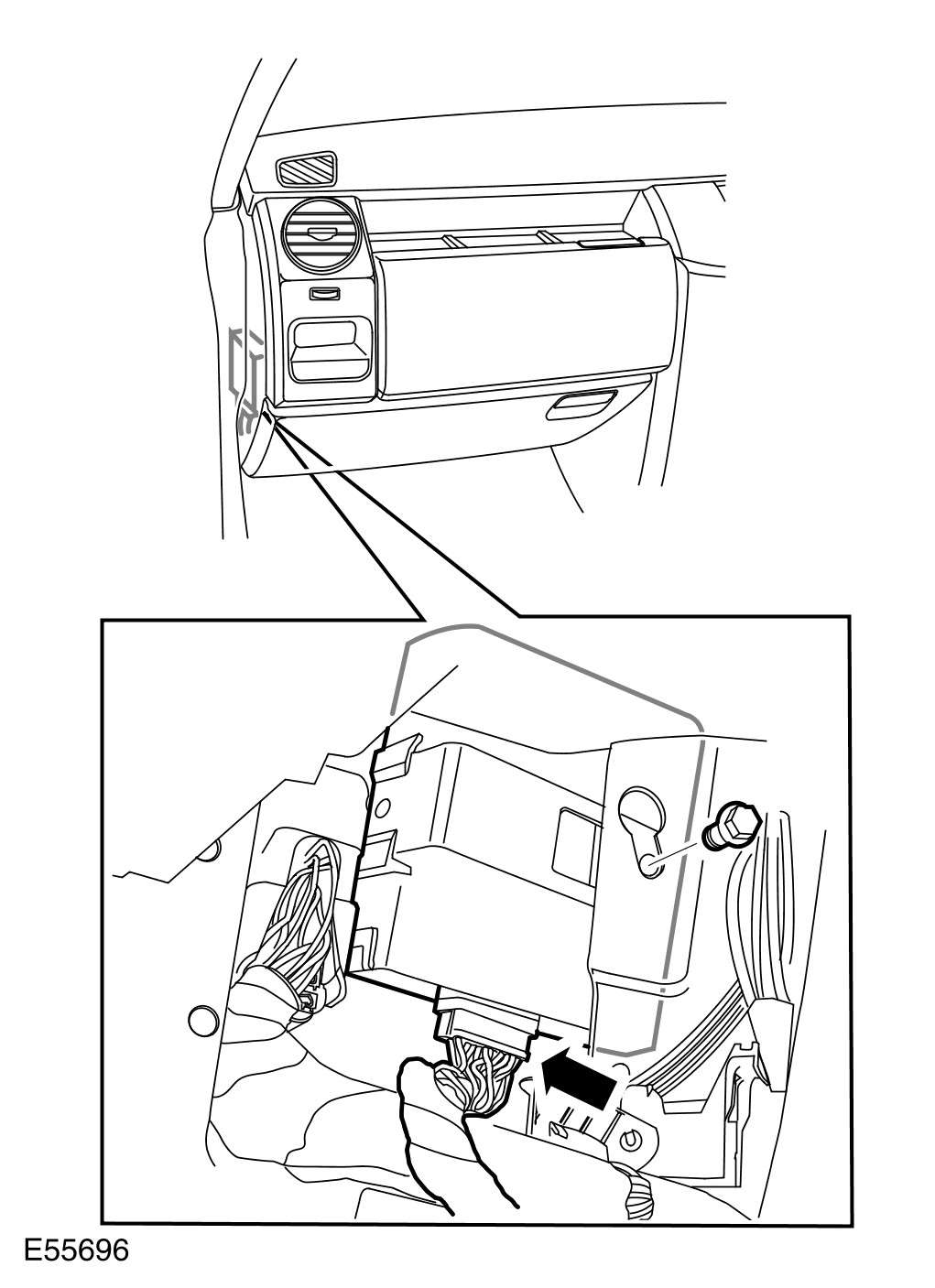

3 Remove the adaptive front lighting module.
- Disconnect the electrical connector.
- Remove the bolt.

Installation
1 Install the adaptive front lighting module.
- Tighten the bolt to 10 Nm (7 lb.ft).
- Connect the electrical connector.
2 Install the CJB. For additional information, refer to Central Junction Box (CJB) Central Junction Box (CJB)
3 Install the cowl side trim panel. For additional information, refer to Cowl Side Trim Panel Cowl Side Trim Panel
