Cylinder Head Assembly

Cylinder Head Torque & Sequence / Bolt re-usability Service and Repair







Surface Variation -- Head-to-block, Head-to-manifolds And Surface Variation -- Warpage


Cylinder head maximum permitted warp (mm) (flatness specification) overall 0.08
over 150 x 150 mm area 0.05
over 25 x 25 mm area 0.02







Camshaft Bearing Cap

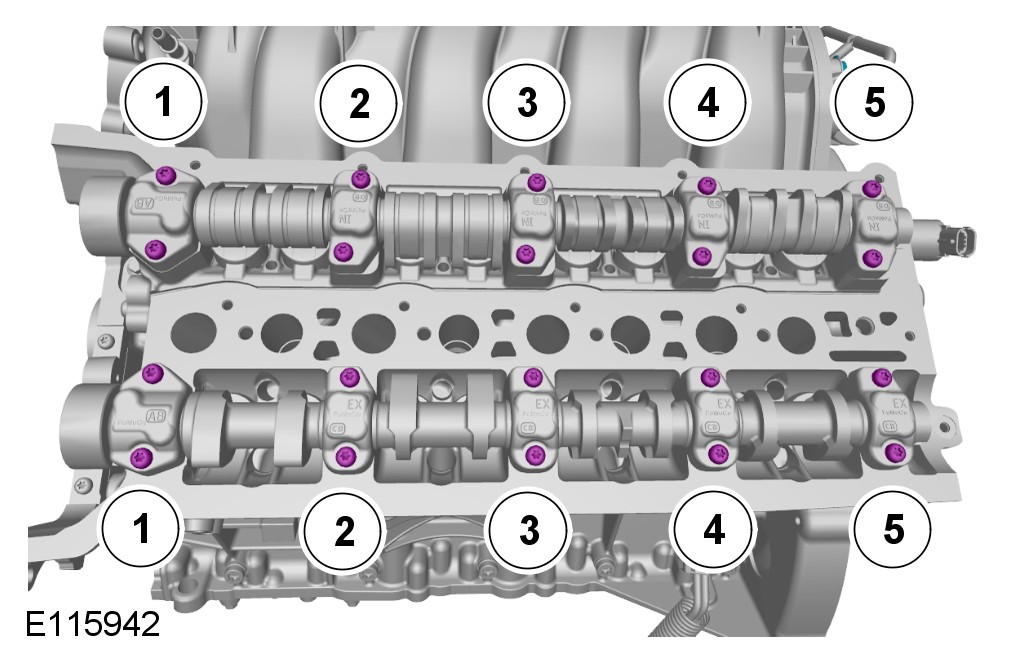

Camshaft LH

Step 1 Torque to 3 Nm
Step 2 Torque to 12 Nm

Note: Tighten the bolts in the indicated sequence.

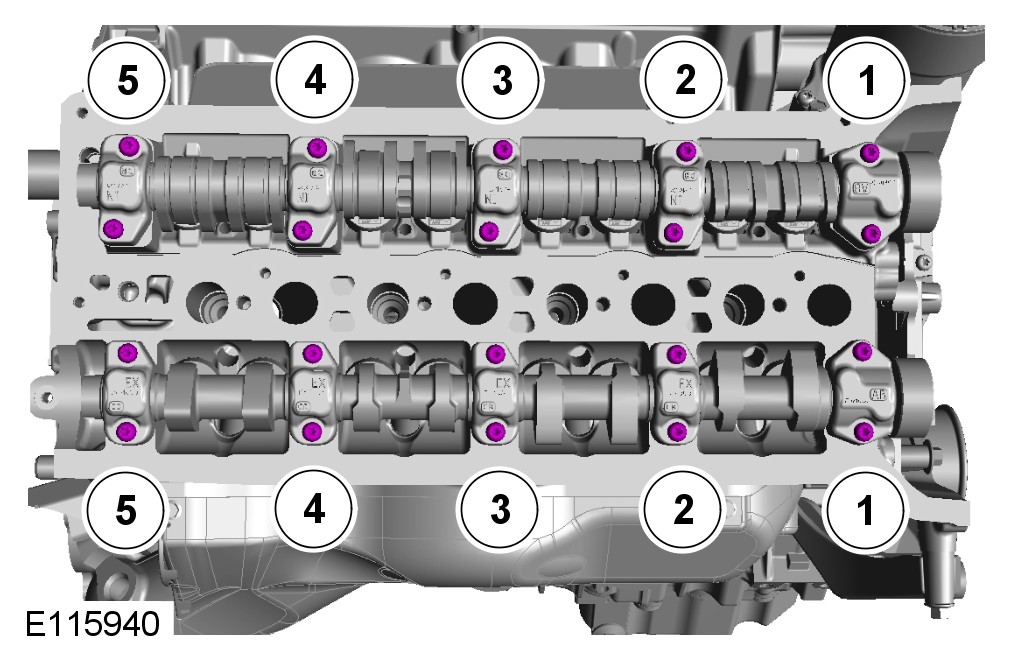

Camshaft RH


Step 1 Torque 3 Nm
Step 2 Torque 12 Nm

NOTE: Tighten the bolts in the indicated sequence.






Intake Manifold Specifications

Exhaust Manifold Specifications
