Control Unit: Service and Repair

Differential Locking Module

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Specifications
2 Remove the rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel

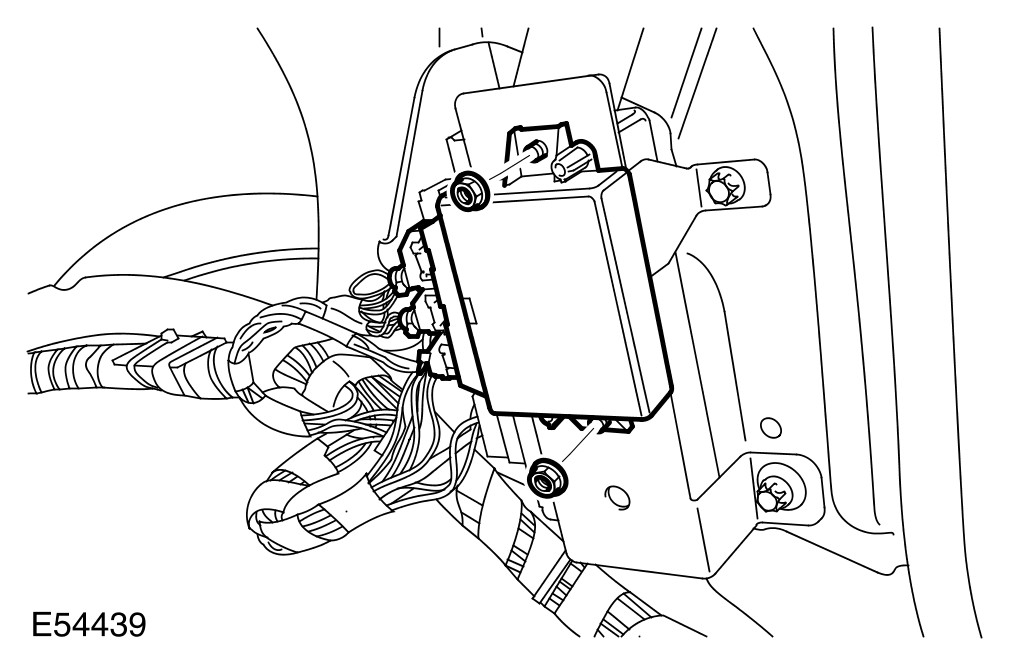

3 Release the parking aid module.
- Remove the 2 nuts.

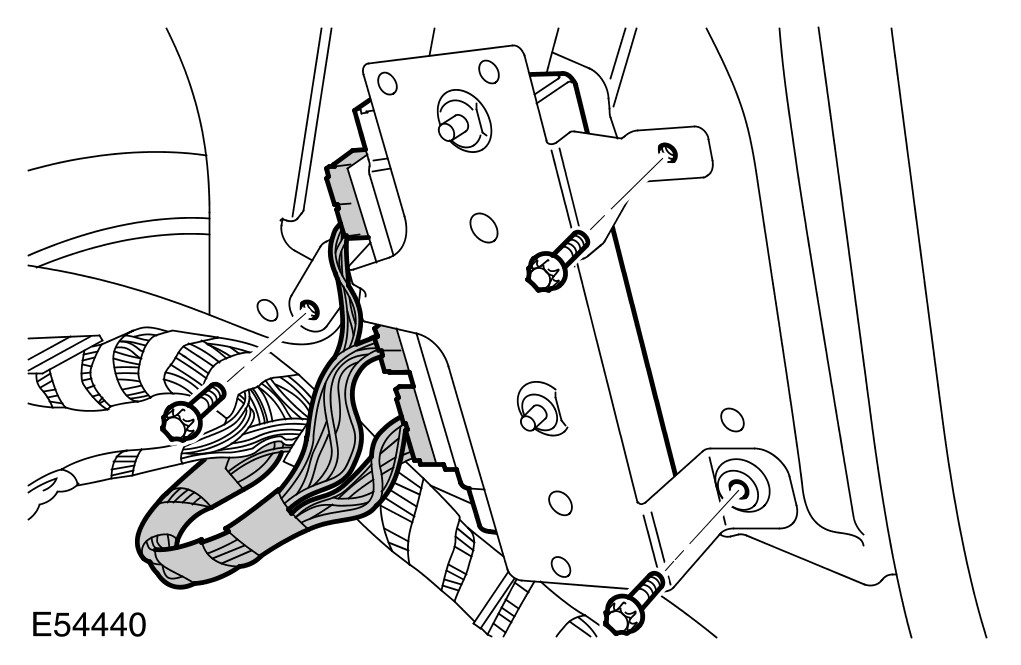

4 Remove the differential locking module.
- Disconnect the 3 electrical connectors.
- Remove the 3 bolts.

Installation
1 Install the differential locking module.
- Install the bolts and tighten to 10 Nm (7 lb.ft).
- Connect and secure the electrical connectors.
2 Install the parking aid module.
- Tighten the nuts to 10 Nm (7 lb.ft).
3 Install the rear quarter trim panel. For additional information, refer to Rear Quarter Trim Panel
4 Connect the battery ground cable. For additional information, refer to Specifications Specifications
5 Use T4 to calibrate a new differential locking module.
