Mode 6 Data

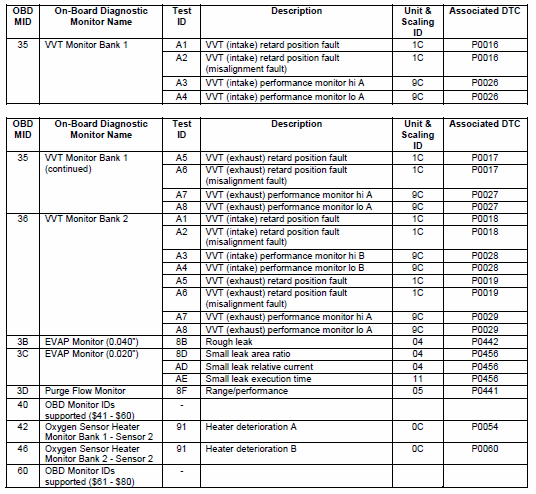

Fig 1: Mode 6 Data (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

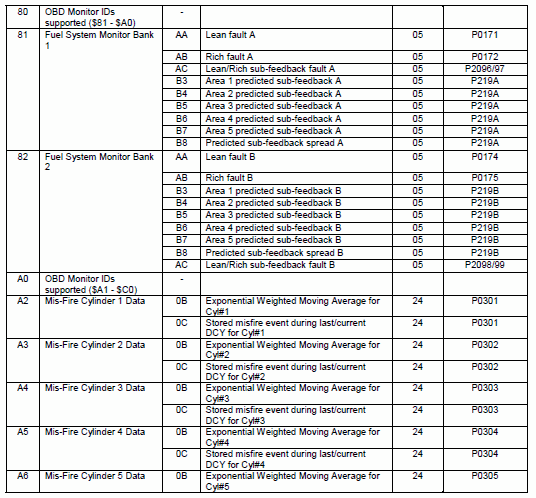

Fig 2: Mode 6 Data (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Mode 6 Data (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
