No Navigation Map Display On Touch Screen Display (SSM56958)
Publication date: 2012-05-03Reference number: SSM56958
NO NAVIGATION MAP DISPLAY ON TOUCH SCREEN DISPLAY
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM56958, Date of Issue:
May 03, 2012
| LAND ROVER: | LR4; Range Rover Sport |
| CATEGORY: | Electrical |
SERVICE INFORMATION
(Symptom 207000 Entertainment Systems)
ISSUE

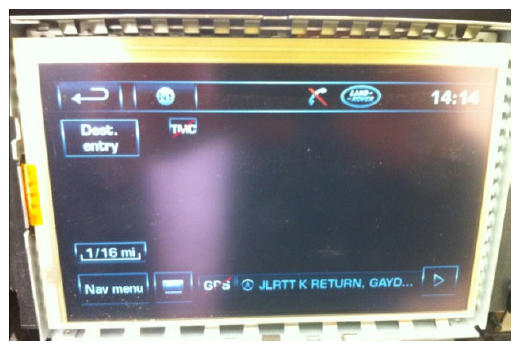

A customer may report that the Touch Screen Display (TSD) either permanently or intermittently does not display the Satellite Navigation map image, when Navigation is selected.
CAUSE
The Low Voltage Differential Signaling (LVDS) cable fitted between the Audio Control Module (ACM) and the TSD may be disconnected or partially connected.
ACTION

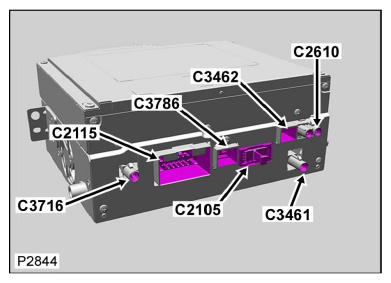

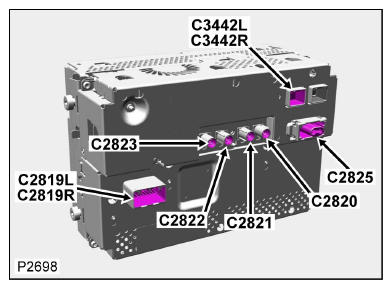

Check and refit if necessary the LVDS connectors at both the ACM connector C2115 and TSD connector C3442L, C3442R. Please see below for connector locations.
