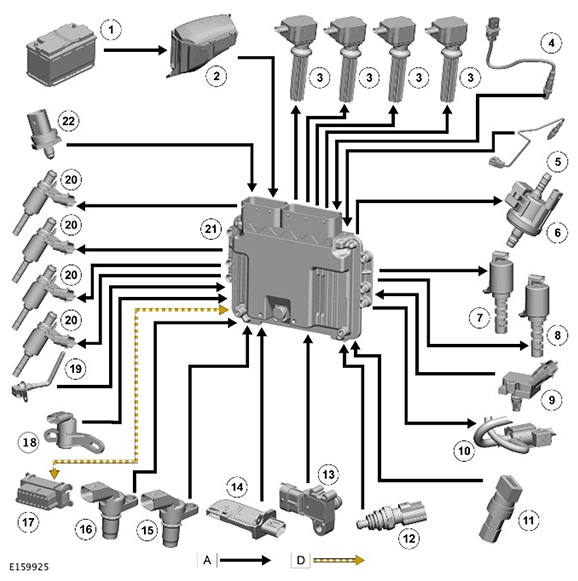

| 1 |
Battery |
| 2 |
BJB |
| 3 |
Ignition coil (4 off) |
| 4 |
Pre-catalyst HO2S (heated oxygen sensor) |
| 5 |
Post catalyst HO2S |
| 6 |
Purge valve |
| 7 |
VCT (variable camshaft timing) solenoid (exhaust) |
| 8 |
VCT solenoid (inlet) |
| 9 |
Turbocharger boost pressure and temperature sensor |
| 10 |
Turbocharger wastegate control solenoid valve |
| 11 |
A/C pressure sensor |
| 12 |
ECT (engine coolant temperature) sensor |
| 13 |
MAP (manifold absolute pressure) sensor |
| 14 |
MAF (mass air flow) sensor |
| 15 |
CMP (camshaft position) sensor (exhaust) |
| 16 |
CMP sensor (inlet) |
| 17 |
Diagnostic socket |
| 18 |
CKP (crankshaft position) sensor |
| 19 |
Engine oil temperature sensor |
| 20 |
Fuel injector (4 off) |
| 21 |
ECM |
| 22 |
FRP (fuel rail pressure) |
